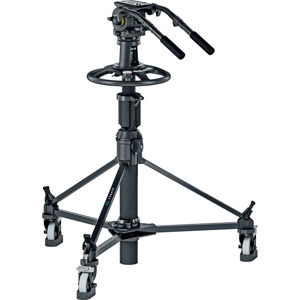

Vinten Vision 250 Fluid Head with Osprey Plus Pedestal System

SKU: VOB250OP

This item is no longer available.

Recommended Alternatives

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Vinten Vision 250 System Specifications

General

General

Jump to...
  • Range

    Osprey

  • Application

    Broadcast Studios, Events, Coporate, Houses of Worship

  • Fluid Head

    Vision 250

  • Pan bar count

    2

  • Payload

    8.80 to 72.60 lbs (4 to 33kg)

  • Bowl size

    Flat

  • Temperature range

    -40 to 140 Degree F (-40 to 60 Degree C)

  • Counterbalance

    Perfect Balance infinitely adjustable spring balance with readout

  • Drag

    TF Drag System with backlit and calibrated control

  • Weight

    789.80 lbs (359kg)

Pan and Tilt Head

Jump to...
  • Range

    Vision

  • Application

    Sports, Outside Broadcast, Multicam Studio, Live, Documentaries

  • CameraPlateFixing

    Two-way Sliding Plate

  • Pan bar type

    Telescopic

  • Pan bar count

    1

  • Level bubble

    True

  • Level bubble illuminated

    Yes

  • Battery type

    9V, PP3 battery

  • Battery Info

    Required, included

  • Battery Material

    Lithium

  • Battery Type

    9-Volt

  • Battery Quantity

    1

  • Adapter viewfinder extension

    No Adapter

  • Bowl size

    Four Bolt Flat with Quickfix

  • Tilt range

    +/- 90 Degree

  • Pan range

    360 Degree

  • Counterbalance

    Perfect Balance infinitely adjustable spring balance with readout

  • Drag

    TF Drag System with backlit and calibrated control

  • Payload

    55 lbs (25kg)

  • Dimensions (H x L x W)

    7.24 x 6.23 x 9.6" (184 x 159 x 244mm)

  • Weight

    13.42 lbs (6.10kg)

Pedestal

Jump to...
  • Range

    Osprey

  • Payload

    154 lbs (70kg)

  • Stages

    2

  • Perfect Balance Stages

    1

  • On shot stroke

    15.99" (410mm)

  • Height

    2.18 to 4.87' (0.67 to 1.49m)

  • Steering

    Castor

  • Head fitting

    Flat base

  • GroundClearance

    0.74" (19mm)

  • TrackingWidth

    37.05" (950mm)

  • Transit Width

    33.54" (860mm)

  • Integrated Pump

    Yes

  • Cable Guards

    Wheel truck mounted, individually adjusted

  • Trim Weights

    7.71 lbs (3.5kg)

  • Wheel Diameter

    4.88" (125mm)

  • Base

    Open

  • Wheel Locks

    Individual

  • Steering Ring Diameter

    20.87" (535mm)

  • Weight

    64.46 lbs (29.30kg)

Pan Bar

Jump to...
  • Range

    Vision

  • UPC Code

    5060896402611

About Vinten Vision 250 System

Combining Perfect Balance with the TF drag system, the Vision 250 allows total control and consistent performance in the toughest conditions. Illuminated drag controls and a digital counterbalance readout ensure simple and repeatable camera set-up in any lighting situation.

This Vision 250 system comes packaged with a Osprey Plus pedestal.


- Vision 250F Pan and Tilt Head, Flat Base -

Sets the standard in new studio production as well as OB/EFP applications
The class leading Vision 250 supports the latest system cameras complete with viewfinders, prompters and pan bar controls for studio production as well as OB/EFP applications. The TF drag system offers infinite adjustment and because it works independently of the balance system, allows precision balancing of the pan and tilt axis so that the effort needed to follow the action becomes insignificant.

The Vision 250 also includes illuminated drag controls and a digital counterbalance readout, ensuring simple and repeatable camera set-up in any lighting situation.


- Osprey Plus Pedestal -

Portable 2-Stage pedestal with perfectly balanced stage for 'on shot' movement in studios. Payload up to 70kg / 155lb.
The Osprey Plus is capable of payload up to 70kg / 155lb. It has 2 stages for acheiving very high and low shots, and the upper stage is perfectly balanced for on shot tracking of talent. It has an integral manual pump and an inlet valve for use with an external supply, making Perfect Balance easy to achieve. There is a storage area for the camera operator. In addition, the Osprey Plus pedestal includes a pressure gauge for clear and reliable set-up and the detachable skid allows the pedestal to be simply broken down into two sections for easy storage and transportation. It comes with 12.5cm / 5 inch wheels, track locks and adjustable cable guards for studio use.


- Vision Telescopic Pan Bar -
Telescoping pan bar to suit the Vision 8AS/10AS/100/250 heads.

Vinten Vision 250 System Features

  • Vision 250F Pan and Tilt Head, Flat Base Features
  • Instant responsiveness from Perfect Balance
  • Thin Film drag (TF) for outstanding whip pan
  • LED levelling bubble for quick, precise set-up
  • Extensive operating temperature from -40 Degree C to +60 Degree C
  • Automatic back-lit dials for low light conditions
  • Digital balance readout for quick repeatable set-ups
  • Osprey Plus Pedestal Features
  • Upper stage perfect balance for on-shot performance
  • Balance assisted second stage for easy elevation and extended height range
  • Built in pressure gauge and manual pump for easy counter balance set-up
  • Detachable skid for easy transport and storage
  • Pedestal supplied with Quickfix quick release system & operator storage area
  • Column can be adapted to work on dolly track

Warranty Information

This product has a limited warranty of 12 months.

Key Features

  • Vision 250F Pan and Tilt Head, Flat Base Highlights
  • Instant responsiveness from Perfect Balance
  • Thin Film drag (TF) for outstanding whip pan
  • LED levelling bubble for quick, precise set-up
  • Osprey Plus Pedestal
  • Upper stage perfect balance for on-shot performance

What's in the box:

  • Osprey Plus Pedestal (V4170-0001)
  • Vision 250F Pan and Tilt Head (Flat Base/3465-3F)
  • Vision Telescopic Pan Bar (3219-91)
  • Vinten 1 Year Limited Warranty
