Just Reduced

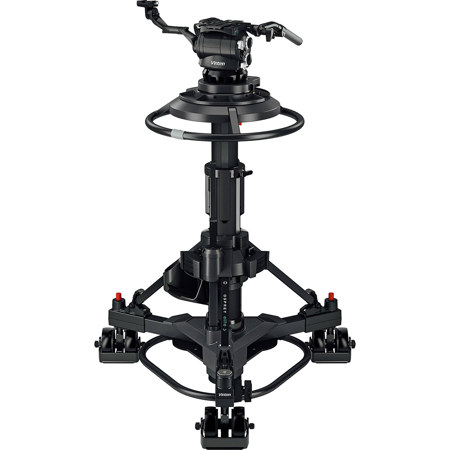

Vinten Osprey Elite S 2-Stage Steering Pedestal System with Versine 360 Fluid Head and 5" Wheels

SKU: VOB360OES MFR: VB360-OES
Earn VIP Reward Points

Key Features

  • Achieve smooth, professional shots with this Vinten pedestal system, perfect for broadcast environments.
  • Enjoy precise control with the Versine 360 fluid head, offering continuous counterbalance for steady footage.
  • The Osprey Elite S pedestal supports up to 176.4 lbs, ensuring stability for heavy camera setups.
  • Easily maneuver through studio spaces with the steering pedestal and integrated 5" wheels.
  • Quickly adjust your camera height from 2.1 to 4.7' with the on-shot stroke feature of this durable stand.
  • Benefit from the Quickfix system for rapid camera mounting and dismounting, saving valuable time.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

Qty
1

Need help? Ask our experts.

Overview
Compare
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

Vinten Osprey Elite S Pedestal Specifications

Versine 360 Fluid Head

Versine 360 Fluid Head

Jump to...
  • Camera Mounting

    Dual 3/8"-16 Screws & 1/4"-20 Screw with Locating Pin (Quick Release w/ Sliding Balance Plate)

  • Head Type

    Fluid Head

  • Base Mount

    Proprietary

  • Counter Balance

    Continuous

  • Load Capacity

    88.2 lbs (40kg)

  • Pan & Tilt (Vertical Tilt)

    +90 Degree to -90 Degree

  • Accessory Mounting

    4x Pan Handle Fitting

  • Bubble Level

    Yes (Illuminated)

  • Dimensions

    Camera Plate: 4.7 x 0.4" (12.00 x 1.0cm)
    Height: 7.7" (19.5cm)
    Width: 7.6" (19.4cm)

  • Weight

    13.9 lbs (6.3kg)

Osprey Elite S Pedestal

Jump to...
  • On Shot Stroke

    30.3" (77cm)

  • Head Fitting

    Flat Base

  • Wheel Lock

    Single-Point

  • Load Capacity

    176.4 lbs (80kg)

  • Height

    2.1 to 4.7' (64 to 143.2cm)

  • Clearance

    Ground: 7.8" (20cm)

  • Tracking Width

    38" (97cm)

  • Transit Doorway Width

    28.7" (73cm)

  • Steering Ring Diameter

    21" (53.5cm)

  • Wheel Diameter

    5" (12.5cm)

  • Weight

    102.5 lbs (46.5kg)

Pan Bar

Jump to...
  • Compatibility

    Vinten Vision Pan Bar Rosettes

  • Mounting

    1x Rosette

  • Dimensions

    10.8" (27.5cm) (Minimum Length)
    16.3" (41.5cm) (Maximum Length)
    1.1" (28mm) (Diameter)

  • Weight

    12.35 oz (350g)

Quickfit Adapter

Jump to...
  • Camera Fixing

    2x 3/8"-16 on Wedge

  • Head Fixing

    3x 3/8"-16 Threaded Holes on Center Line

  • Load Capacity

    100 lbs (45.3kg)

  • Weight

    1.54 lbs (698.5g)

  • UPC Code

    5060896409535

About Vinten Osprey Elite S Pedestal

Where precision meets innovation, the Osprey Elite S 2-Stage Steering Pedestal System with Versine 360 Fluid Head and 5" Wheels is the ultimate solution for professional broadcasting needs. Developed in collaboration with leading OB companies, the Versine 360 Fluid Head is engineered to excel in fixed camera positions without the need for box lenses. Vinten's expert engineers have meticulously crafted this fluid head to address the real-world challenges faced by camera operators, ensuring it meets the rigorous demands of live television production.

The Versine 360 Fluid Head is compact yet powerful, featuring a patented compact balance mechanism that supports a wide range of camera and non-box lens configurations, including accessories. Its multi-standard base design ensures seamless compatibility with four industry-standard fixings, such as flat base and 150mm bowl, eliminating the need for additional adapters. This versatility allows operators to cover any production scenario with ease, using a Vector for box lenses and the Versine 360 for all other applications.

Designed with professionals in mind, the Versine 360 offers 'Perfect Balance' technology, providing smooth and precise positioning throughout the tilt range. The innovative 'TF Drag' technology ensures maximum control at low speeds for accurate long-lens framing and enables instant whip pan for high-speed tracking without manual drag reduction. This fluid head is engineered to deliver superior control, even during extended broadcasts.

The Osprey Elite S Pedestal complements the Versine 360 with its portable, fully-featured design, capable of supporting large payloads up to 177 lbs (80kg). It offers a full, 2-stage balance range, allowing for seamless transitions from seated to standing positions, ideal for game shows, entertainment, and live performances. The pedestal's inlet valve accommodates any air source, making it easy to achieve Perfect Balance. Additionally, the detachable skid allows for simple breakdown into two sections for convenient storage and transportation.

Equipped with a selector for both single wheel and all-wheel crab steering, the Osprey Elite S ensures enhanced maneuverability in tight studio spaces. Its 5" (12.5cm) wheels and adjustable cable guards are designed for optimal studio use. The pedestal also features a built-in pressure gauge for straightforward counterbalance setup and an operator storage area for added convenience.

The system includes a Broadcast Pan Bar, designed to fit all zoom and focus demand types. This telescopic pan bar, without grip, allows for the clamping of zoom and focus controls, featuring a diameter compatible with all zoom clamp systems and a shorter length to prevent interference with the operator's body during panning.

With its robust all-metal construction, the Versine 360 Fluid Head is built to withstand the toughest outside broadcasts, ensuring long-lasting performance and reliability. This system is a testament to Vinten's commitment to quality and innovation, offering a comprehensive solution for professional broadcasters seeking precision, flexibility, and durability in their equipment.

Vinten Osprey Elite S Pedestal Features

  • Versine 360 system with fully steerable, perfectly balanced 2-stage studio pedestal
  • Compact head with 88 lbs (40kg) payload, Perfect Balance and TF Drag
  • Osprey Elite S pedestal with two perfectly balanced stages for 'on shot' movement through the entire height range
  • Full crab and steer functionality controlled from a central steering ring
  • Quickfix release adapter included for fast mounting of the Versine 360 head

Warranty Information

This product has a limited warranty of 12 months.

Key Features

  • Achieve smooth, professional shots with this Vinten pedestal system, perfect for broadcast environments.
  • Enjoy precise control with the Versine 360 fluid head, offering continuous counterbalance for steady footage.
  • The Osprey Elite S pedestal supports up to 176.4 lbs, ensuring stability for heavy camera setups.
  • Easily maneuver through studio spaces with the steering pedestal and integrated 5" wheels.
  • Quickly adjust your camera height from 2.1 to 4.7' with the on-shot stroke feature of this durable stand.
  • Benefit from the Quickfix system for rapid camera mounting and dismounting, saving valuable time.

What's in the box:

  • Versine 360 Fluid Head
  • Osprey Elite S 2-Stage Steering Pedestal
  • 2x Broadcast Telescopic Pan Bar (V4177-1012)
  • Versine Camera Plate
  • Versine Accessory Mounting Arm
  • Bowl Clamp Knob Assembly (3330-30)
  • Quickfix Quick Release System
  • Accessory Holder
  • Manual Pump
  • Kick Ring
  • Quickfit Adapter
  • Quickfit Wedge
  • 3/8" Camera Screws
  • User Guide
  • Vinten 1 Year Limited Warranty
