Input jack, Output jack, DC9V jack, LINK jack
Gain Knob, Volume Knob, Tone Cut Knob, Treble Knob, Bass, Bright Switch, Mode Switch
1x 9V alkaline battery or 9V center negative AC adapter
The use of an AC adapter is recommended as the unit's power consumption is relatively high. Should you prefer to use batteries, please use the alkaline type.
95 mA
Approx. 2 hours (When using the alkaline battery. This figure will vary depending on the actual conditions of use.)
2.83 x 4.72 x 2.17" (72 x 120 x 55mm)(Including the knob and foot rubber)
12.35 oz (350g) (Including the battery)
4959112198357
For any questions about compatibility with this product, call us at 800-223-2500 or you can email us any time.
Excellent experience
By STEVEN N.
Very quick service and exactly as described. Would definitely shop here again.
Equipped With Nutube For Vacuum Tube Sound & Response.
Acclaimed as revolutionary, the Nutube was collaboratively developed by KORG and Noritake Itron, and is at the heart of the Valvenergy series. This gives the Valvenergy series the same response, rich overtone structure, and sense of power as you expect from a vacuum tube amp.
Analog Circuit Design With Ample Headroom.
The Valvenergy series is made of all analog circuits with the 9V power supply voltage boosted to 15V internally. This allows for greater volume and headroom, and delivers an even more dynamic sound. It's a circuit design that fully utilizes the potential of the Valvenergy series.

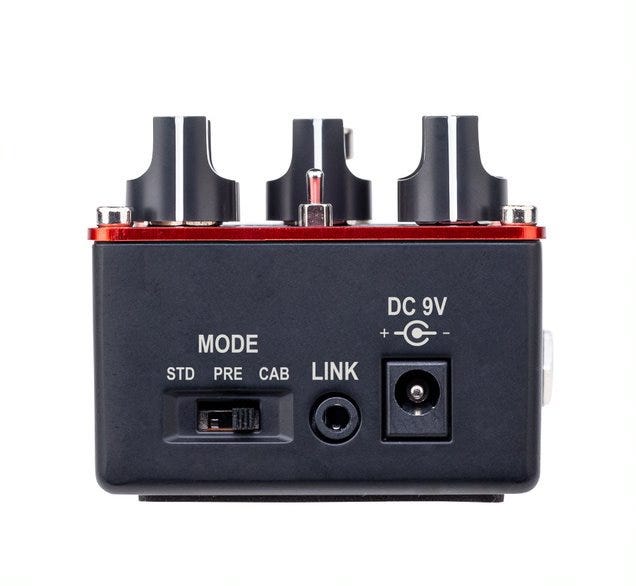

Three Connection Modes That You Can Switch According To Your Situation.
You can switch modes as appropriate for the way in which you're using the pedal.
Standard: The pedal outputs an instrument-level signal. Connect to the input of your guitar amp in the same way as when using a conventional pedal.
Preamp: The pedal outputs a line-level signal. Connect to the return jack of your amp or to the input of your power amp to then use with a guitar cabinet.
Cab-Sim: The pedal outputs a line-level signal with an analog cabinet simulator. Connect to your mixer or DAW for direct guitar tones.

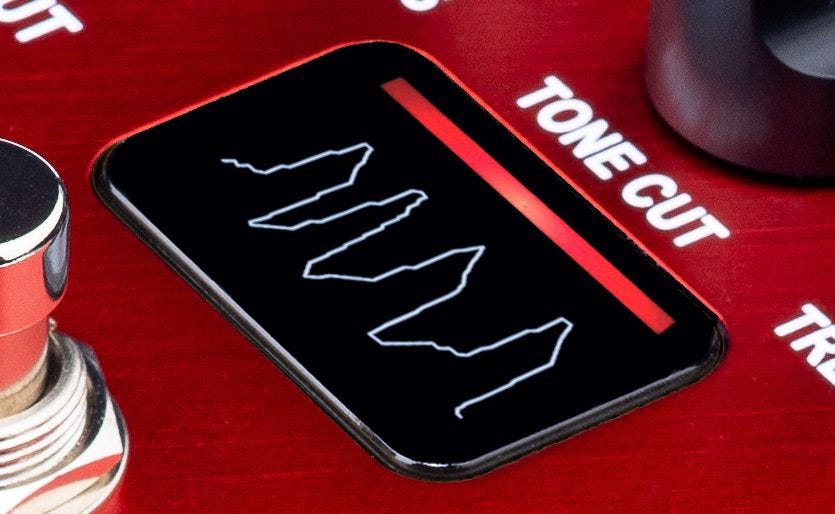

The OLED Display Provides Visual Confirmation Of The Sound.
These pedals are equipped with a high-contrast OLED display showing an oscilloscope, a visual indication of how the waveform is affected by the knob settings.
Equipped With A Channel Switching Function.
You can chain two pedals together with a standard 1/8" stereo cable through the LINK jack of each pedal. This allows you to turn one pedal on while bypassing the other, using the system as if you were switching between channels of a guitar amp. By using a split Y-configuration 1/8" stereo cable you can link three pedals.
