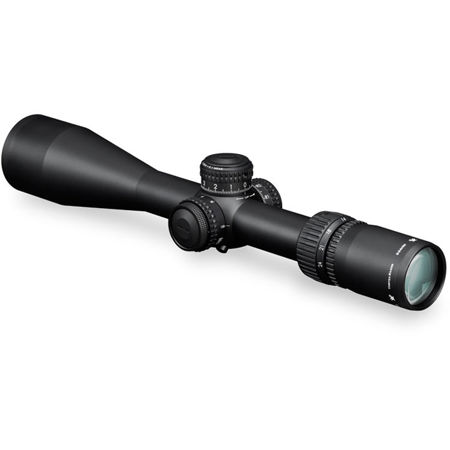

Vortex Optics 6-24x50 Razor HD AMG Riflescope, Matte Black with Illuminated First Focal Plane EBR-7B MRAD Reticle, Side Parallax Focus, 30mm Tube Diameter

Cutting-edge engineering and modern precision-machining techniques allow the Razor HD AMG to achieve optical and physical specifications normally reserved for heavier scopes with larger tube diameters. Optically, these scopes deliver unparalleled image quality. Our proprietary ALO automated laser optical alignment process forges a new paradigm in the sport optics industry, resulting in the most forgiving, comfortable and highest quality images possible.

The APO objective lens system uses index-matched lenses to correct color across the entire visual spectrum. HD premium extra-low dispersion glass delivers the ultimate in resolution and color fidelity, resulting in High Definition images. XR Plus premium fully multi-coated lenses increase light transmission for optimum brightness. ArmorTek protects exterior lenses from scratches, oil and dirt.

Optical

ALO Alignment
Proprietary, precision-laser process, perfectly aligns every lens element to ensure the absolute best image possible.

APO System
Index-matched lenses correct color across the entire visual spectrum.

Optically Indexed Lenses
Optimize image sharpness and brightness from edge to edge.

HD Lens Elements
Optical system comprised of premium components and optimized optical design, delivers outstanding resolution, color fidelity, edge-to-edge sharpness and light transmission - resulting in High Definition views. AMG lenses are ground, polished and coated in the USA.

XR Plus Fully Multi-Coated
Ultimate anti-reflective coatings on all air-to-glass surfaces provide maximum light transmission for peak clarity and the pinnacle of low-light performance.

Plasma Tech
Cutting edge application process provides unparalleled coating durability and performance.

First Focal Plane Reticle
Scale of reticle remains in proportion to the zoomed image. Constant subtensions allow accurate holdover and ranging at all magnifications.

Glass-etched Reticle
Allows for intricate reticle design. Protected between two layers of glass for optimum durability and reliability.

Illuminated Reticle
Provides precise aiming under low-light conditions.

Construction

Made in the USA
Every component, from the Type III hard-anodized body, turrets, mag ring and eyepiece, to the smallest screw-even the index-matched lenses are made in America.

Tube Size
30mm diameter provides maximized internal adjustment and strength.

Single-Piece Tube
Maximizes alignment for improved accuracy and optimum visual performance, as well as ensures strength and waterproofness.

Aircraft-Grade Aluminum
Constructed from a solid block of aircraft-grade aluminum for strength and rigidity.

Waterproof
O-ring seals prevent moisture, dust and debris from penetrating the riflescope for reliable performance in all environments.

Fogproof
Argon gas purging prevents internal fogging over a wide range of temperatures.

Shockproof
Rugged construction withstands recoil and impact.

Hard Anodized Black Finish
Highly durable Type III hard-coat anodization provides a low-glare matte surface and helps camouflage the shooter's position.

ArmorTek
Ultra-hard, scratch-resistant coating protects exterior lenses from scratches, oil and dirt.

L-Tec Turrets
Integrated locking mechanism prevents accidental adjustments. Turrets provide fast, accurate, easily read elevation and windage adjustments. Patent pending.

Locking Illumination
Locks illumination at preferred setting.

Side Focus
Adjustment located on left side of turret housing is easily accessible from shooting position. Provides optimal image focus and parallax removal.

Internal Mechanism Design

L-Tec Zero Stop
Prevents elevation turret from dialing below sight in range using rugged steel components. Internal mechanisms stay free of sand, dirt, dust, moisture and other foreign materials-even when setting the zero-stop position.US Patent 8,166,696 B2.

Maximized Turret Zero Adjustment
Turret design allows expanded adjustment range when L-Tec zero stop feature is disengaged for zeroing purposes. This MOA scope offers 94.5 MOA total elevation adjustment and 65 MOA total windage adjustment.

Micro Adjust Zero Setting
Infinite zero setting positions allow zero to be set between clicks for optimal accuracy.

Friction Reduction System
Heat-treated, hardened-steel pad floats on the end of the turret screw and interfaces with a hardened steel ring on the erector tube for steel-on-steel contact. Prevents galling or deformation of the erector screw contact point for superior durability and repeatability. US Patent 7,958,665.

Turret Screws
Provides low-friction, wear-resistant performance precision-machined from a silicon-brass alloy and treated with an advanced dry-film lubricant. Turret screw threads are precision machined to sub-2 micron tolerances (less than 78-millionths of an inch). Ultra-smooth operation and adjustments.

Erector Tube System
Precision-machined from aircraft grade aluminum with anti-galling properties for a lighter weight, strong, durable tube. Stainless Steel offset coil spring erector biasing system withstands much higher stresses than traditional flat erector springs and allows much more internal elevation and windage travel with better freedom of movement for ultimate turret precision.

Convenience Features

Locking Diopter Eyepiece
This feature allows the shooter to set and lock the eyepiece setting once for their eye and forget it.

L-Tec Tool
Included with your scope for precise adjustments to the turret.

Locking Side Illumination
Easily accessible and lockable illumination dial is located on the left side of turret housing. Features eleven intensity levels of illumination with off positions between each setting.
