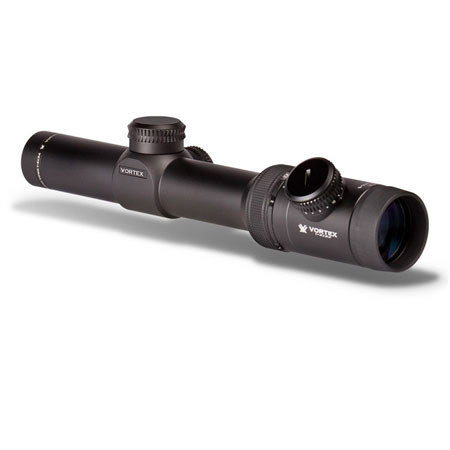

Vortex Optics Viper PST 1-4x24 FFP Riflescope Specifications

  • Magnification

    1x - 4x

  • Objective / Field of View

    24mm / 98.0' (29.9m) @ 1x at 100 yds.(100m), 27.5' (8.4m) @ 4x at 100 yds.(100m)

  • Main (Center) Tube Diameter

    30mm

  • Objective Tube Diameter

    1.18"

  • Eyepiece Tube Diameter

    1.63"

  • Lens Coatings

    XR Anti-Reflective Fully Multi Coated Optics

  • Reticle

    Illuminated EBR5 MOA

  • Reticle Image Plane (Magnifying)

    First

  • Brightness Adjustments

    10 Intensity Levels

  • Exterior Finish

    Matte Black

  • Windage & Elevation Adjustments (MOA)

    1/2-M.O.A. Per Click

  • Maximum Adjustment

    220 MOA W & E

  • Exit Pupil

    Not Specified by Manufacturer

  • Eye Relief

    4.0" / 101.6mm @ 1x, 4.0" / 101.6mm @ 4x

  • Parallax Correction Control

    100 Yards

  • Diopter Adjustment

    Not Specified by Manufacturer

  • Battery

    CR-2032

  • Battery Life

    Depends on Intensity & Brand of Battery

  • Material

    Aluminum Alloy

  • Nitrogen Filled

    Filled with Argon Gas

  • Waterproof / Fogproof

    Yes

  • Length

    9.7", (246.4mm)

  • Mounting Length

    6.0"

  • Weight

    16.0 oz., 453.6g

  • Special Features

    Reticle Image in the First Focal Plane.
    Argon Gas Purging.
    Illuminated Glass Etched Reticle.
    Capped Turrets

7 Accessories for Vortex Optics 1-4x24 FFP Viper PST Riflescope, Matte Black Finish with Illuminated EBR-5 MOA Reticle, 30mm Tube

  • All Accessories (7)
  • Sights & Accessories (2)
  • Cleaning Accessories (4)
  • Bags & Cases (1)

About Vortex Optics Viper PST 1-4x24 FFP Riflescope

Specifically designed for the military, law enforcement and committed precision shooting communities, the Vortex Optics Viper PST 1-4 x 24 FFP Riflescope, EBR-5 Reticle, MOA, Low Capped Turrets (PST-43109) offers the highest levels of performance and reliability. With features such as matched turret/reticle subtensions, CRS zero stop mechanisms and precision ranging reticles, the Viper PST is ready for any situation.

The Viper PST (Precision Shooting Tactical) is built on a precision-machined, one-piece aircraft-grade aluminum tube protected by a type-3 hard-anodized finish. The large diameter 30 mm tube provides additional strength and rigidity, as well as extra room for extreme range elevation adjustments. The construction is 100% waterproof, dustproof and fogproof - purged with argon gas to prevent internal fogging and corrosion.

This riflescope uses a first focal plane reticle. This style of reticle maintains its subtensions regardless of magnification change - the reticle appears to grow and shrink as the magnification changes. The main advantage to this style reticle is that the reticle subtensions used for ranging, holdovers and wind drift corrections are always accurate at any magnification. XR coatings deliver incredible image detail with extremely high resolution and light transmission. XD (Extra-low Dispersion) glass objective lens elements made of extra-low dispersion glass enhance image resolution and are carefully selected and precision crafted to exacting standards for true-to-life images of startling clarity and color accuracy.

This Viper PST riflescope does not have a parallax focus. The focus is factory pre-set at a distance of 100 yards. ArmorTek is an ultra-hard, scratch-resistant lens armor, chemically bonded on the outer glass surfaces. ArmorTek's unique stain-proof topcoat features a slippery surface that actually repels the oil and corrosive salts from fingerprints. Dust, dirt and smudges are easily wiped away without fear of scratching the optical glass beneath. The EBR-5 MOA reticle is a hash-marked ranging reticle using MOA based subtension lines for ranging, holdover and windage corrections.

Vortex Optics Viper PST 1-4x24 FFP Riflescope Features

  • First Focal Plane: Subtensions remain consistent throughout magnification range
  • XD Lens Elements: Extra-low dispersion (XD) glass increases resolution and color fidelity, resulting in crisp, sharp images
  • XR Lens Coatings: Vortex proprietary XR fully multi-coated lens coatings increase light transmission for maximum brightness
  • 30mm Tube: Provides greater strength and wider adjustment latitude
  • One-Piece Tube: Maximizes alignment for improved accuracy and optimum visual performance as well as strength and waterproofness
  • Aircraft-Grade Aluminum: Construction from a solid block of aircraft-grade aluminum delivers increased strength and rigidity
  • Waterproof: O-ring seals prevent moisture, dust and debris from getting inside the tube for reliable performance in all environments
  • Fogproof: Filled with argon gas to inhibit internal fogging over a wide range of temperatures
  • Shockproof: Lenses are locked in place, fore and aft, with machined locking rings to remain in perfect alignment and withstand recoil and impact
  • Hard Anodized Finish: Hard-coat anodization is durable; the low-glare matte helps camouflage the shooter's position
  • ArmorTek: Ultra-hard, scratch-resistant coating protects exterior lenses from scratches, oil and dirt
  • Illuminated Reticle: Professional-grade illumination: designed for daytime, low light and night vision devices. The top five settings (6, 7, 8, 9 and 10) are visible in the daytime, depending on the background color. Settings below 6 are for low light use when the user's eyes have adjusted to lower light levels.
  • Capped Turrets: Protect from accidental movement and impact
  • MAG-View: Combines a fiber optics magnification indicator with raised rear-facing magnification references for clear viewing in low light conditions
  • Fast Focus Eyepiece: Allows quick and easy reticle focusing

What's in the box:

  • Vortex Optics Viper PST 1-4x24 FFP Riflescope
  • CR2032 Battery
  • Protective Lens Caps
  • Vortex Optics Lifetime Warranty
