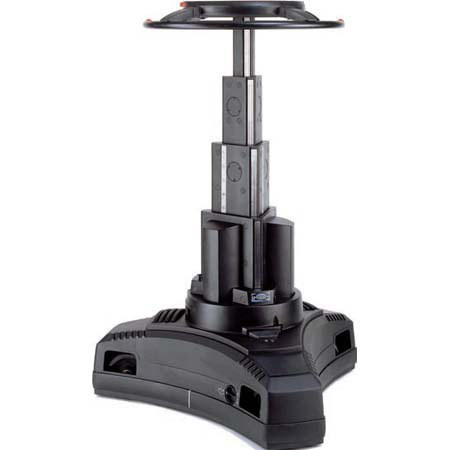

Vinten V3852-0003 Quattro-L Studio 4-Stage Pedestal with 10cm On-Shot Stroke, Black

SKU: VOV38520003 MFR: V3852-0003
Earn VIP Reward Points

Key Features

  • Achieve smooth, professional camera movements with this Vinten studio pedestal, ideal for broadcast environments.
  • Enjoy a generous 39.4" on-shot stroke for precise height adjustments during live studio recordings.
  • This durable camera stand supports up to 231.5 lbs, ensuring stability for heavy broadcast cameras.
  • Navigate tight spaces effortlessly with a doorway tracking width of 42" on this robust pedestal.
  • Customize your setup with adjustable ground clearance, up to 1.1", for varied studio floor conditions.
  • Benefit from the Vinten pedestal's 4-stage design, which provides exceptional stability and control.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Need help? Ask our experts.

Overview
Compare
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

Vinten V3852-0003 Specifications

  • Payload

    105 kg (231.5 lb)

  • Minimum height

    45.2 cm (17.8") - with wheels fully retracted

  • Maximum height

    148 cm (58.2") - with maximum ground clearance

  • Ground clearance

    0-2.8 cm (0-1.1")

  • On-shot stroke

    100 cm (39.4")

  • Doorway tracking width

    107 cm (42")

  • Transit doorway width

    Small steering ring 92 cm (36.2")
    Large steering ring 92.4 cm (36.4")

  • Wheel diameter

    16 cm (6.3")

  • Steering ring diameter

    Small 58.9 cm (23")
    Large 74 cm (29")

  • Maximum working pressure

    16.3 bar (236 psi)

  • Relief valve pressure

    18 bar (260 psi)

  • Weight (Pedestal)

    158 kg (348 lb)

  • Weight (Trim)

    Main (5 x 1.0 kg) 5.0 kg (11 lb)
    Auxiliary (6 x 0.5 kg) 3.0 kg (6.6 lb)

  • Warranty

    Vinten 1 year limited warranty

About Vinten V3852-0003

Take your studio production to the next level with the V3852-0003 Quattro-L Studio 4-Stage Pedestal in sleek black. This innovative product from Vinten is a game-changer for camera operators, offering a unique four-stage elevation system that provides an extensive height range. This feature allows for the capture of dynamic low-angle shots and boasts an impressive on-shot stroke of 100 cm.

The Quattro-L Studio Pedestal stands out with its revolutionary pneumatic design. This design ensures Perfect Balance throughout all four stages of elevation, providing the exact support needed for seamless camera operation. This means you can effortlessly raise and lower your camera, making it an invaluable tool for any studio setup.

Additionally, this pedestal comes with the option of a unique Document Holder. This feature is designed to enhance the daily use of the pedestals, helping to streamline your workflow and increase productivity.

In summary, the V3852-0003 Quattro-L Studio 4-Stage Pedestal is not just a piece of equipment, but a valuable asset for any professional camera operator or studio. Its advanced features and user-friendly design make it a must-have for those looking to elevate their production quality.

Vinten V3852-0003 Features

  • Innovative low volume and low pressure pneumatics
  • Perfect Balance throughout any movement
  • 100 cm on-shot stroke allows greater shot creativity
  • Triangular columns for maximum rigidity and minimal torsional twist
  • Quiet operation minimizes set noise levels

Warranty Information

This product has a limited warranty of 12 months.

Key Features

  • Achieve smooth, professional camera movements with this Vinten studio pedestal, ideal for broadcast environments.
  • Enjoy a generous 39.4" on-shot stroke for precise height adjustments during live studio recordings.
  • This durable camera stand supports up to 231.5 lbs, ensuring stability for heavy broadcast cameras.
  • Navigate tight spaces effortlessly with a doorway tracking width of 42" on this robust pedestal.
  • Customize your setup with adjustable ground clearance, up to 1.1", for varied studio floor conditions.
  • Benefit from the Vinten pedestal's 4-stage design, which provides exceptional stability and control.

What's in the box:

  • Vinten V3852-0003 Quattro-L Studio 4-Stage Pedestal
  • Base & Column
  • Pump
  • Wheel
  • Weights
  • Vinten 1 Year Limited Warranty (Extended 1 Year Limited Warranty with Registration)
