Vinten Vision 100 Fluid Head with flowtech 100 Carbon Fiber Tripod, Mid-Level Spreader

flowtech™ 100 Carbon Fiber Tripod by Sachtler & Vinten

The flowtech™100 by Sachtler and Vinten is a revolutionary tripod system that’s designed to be the world’s fastest and most efficient stabilization tool. Its innovative design features specialized hinge locks on top of each leg for swift deployment and fuss-free height adjustments, with simultaneous leg adjustment for even faster operation during demanding shoots. This versatile tripod also allows you to shoot extreme angles with its mid-level spreader, which has four locking positions—20°, 46°, 72°, and extended—for a maximum working height of 61.02” and a minimum of 10.24”. The spreader enables the flowtech™100 to be used in tricky spaces and uneven terrain, but it also gives you the option of using dual-spiked feet (for soft surfaces) or quick-release rubber feet (for slippery surfaces). This 9-pound carbon fiber tripod can accommodate equipment payloads up to 66 pounds and ensures maximum portability with an ergonomic flat-leg design for enhanced torsional strength and easier transport, as well as magnetic locks to keep the legs from snapping open during travel. It has a 100mm bowl for use with a variety of ball head systems and three 3/8"-16 female thread mounts for accessory attachment. Rigorously tested in difficult scenarios and working conditions, the award-winning flowtech™100 is highly robust, versatile, and lightweight, making it the perfect tripod for professional photography and videography.

Revolutionise the way you work with the world’s fastest tripod

flowtech™100 by Sachtler and Vinten - a versatile, lightweight tripod that is easier and faster to deploy and adjust than any other tripod. Performance tested in extreme conditions, flowtech™100 is a revolution in tripod technology, giving the camera operator ultimate versatility and improving their workflow. flowtech™100 is a revolutionary set of two-stage carbon fibre tripod legs with quick release brakes, a mid-level spreader, rubber feet and a payload capacity of 30kg (66lb).

DEPLOY IN AN INSTANT

Unique quick release brakes

flowtech™100 features unique quick release brakes located at the top of the tripod that allow camera operators to easily deploy and adjust the tripod in an instant. All the legs of the tripod can be deployed simultaneously and can quickly adjust to the height that you need and the ground’s surface – eliminating the need to bend over or manually adjust multiple brakes on each individual leg.

LIGHTWEIGHT & EAST TO TRANSPORT

New ergonomic carbon-fibre leg design

Carbon fibre profile makes flowtech™75 lightweight and easy to transport. It’s ergonomically designed to comfortably rest on the camera operator’s shoulder while magnetic locks offer an easy, quick method for locking the legs together during transport. Exceptional torsional stiffness ensures that the tripod doesn’t twist during panning movements.

EXTREMELY LOW AND HIGH SHOTS

Versatile Hinge Lock

flowtech comes with a hinge lock mechanism that gives camera operators ultimate versatility. With the ability to be used with or without a spreader. The hinge lock allows the flowtech100 to be deployed as low as 26 cm (10.2in) and as high as 155 cm (61in) when used without a spreader. This effectively eliminates the need to bring a second set of baby legs to each shoot.

SUPERIOR PERFORMANCE

Performance Tested

Tested in the most punishing environments, flowtech excels in sludge, sand and extreme temperatures. Tried in over 30,000 lab-testing cycles – in which the tripod is repeatedly deployed – and 1.5 million clamp operations on the test endurance rig, flowtech surpasses Sachtler and Vinten’s stringent performance targets.

MID-LEVEL SPREADER

flowtech™100 Carbon Fibre Mid-Level Spreader

For a fast and stable setup in narrow spaces or on uneven terrain, the flowtech100 mid-level spreader has four locking positions for simple setup and fast repositioning. The spreader is included in all flowtech™100 tripod and system packages and available as an optional accessory for flowtech™75.

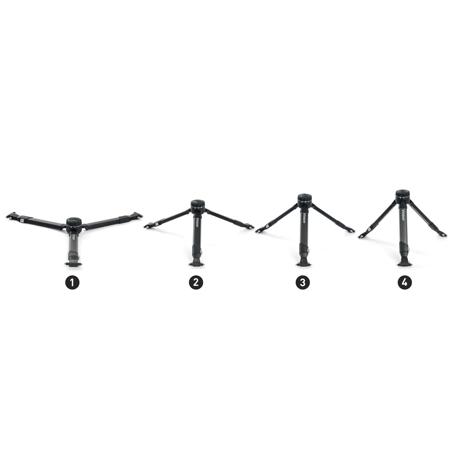

Carbon Fibre Mid-Level Spreader Position - 20°

Low Mode

2. Carbon Fibre Mid-Level Spreader Position - 46°

Medium Mode

3. Carbon Fibre Mid-Level Spreader Position - 72°

High Mode

Extended Spreader

Spreaded Mode

System Vision 100 FT MS with flowtech100

The Vision 100 system with flowtech100 carbon fiber tripod and mid-level spreader, is a high-performance professional tripod system designed for camera setups weighing between 7-20 kg / 15.4-44.1 lb. Combining Perfect Balance with the TF drag system, the Vision 100 allows total control and consistent performance in the toughest conditions. Illuminated drag controls and a digital counterbalance readout ensure simple and repeatable camera set-up in any lighting situation.

Performance tested in extreme conditions, the unique flowtech100 is easier and faster to deploy and adjust than any other tripod, giving the camera operator ultimate versatility and improving their workflow.

A unique, heavy duty carbon fiber mid-level spreader with 4 locking positions controlled by a central lock for fast repositioning is included with the flowtech100. The system is completed with a comfortable carry handle and soft case for protection during transport.

-- Vision 100 Pan and Tilt Head --

The Vision 100 is perfect for all professional ENG or EFP situations that demand total reliability and control excellence. Combining Perfect Balance with the innovative TF drag system, the Vision 100 allows total control and consistent performance in the toughest conditions. Following the action is effortless even at the heaviest drag setting and regardless of the environment. The Vision 100 also includes illuminated drag controls and a digital counterbalance readout, ensuring simple and repeatable camera set-up in any lighting situation.

-- flowtech100 --

The world's fastest deploying tripod now in 100mm
The award winning flowtech tripod technology offers unique quick release brakes to deploy and adjust your tripod in an instant. The ergonomic carbon fibre leg design offers exceptional torsional stiffness and makes it easy to transport with.

The integrated versatile hinge lock mechanism allows you to capture extremely low and high shots with superior performance and reliability thanks to extensive endurance and environmental testing. flowtech100 is designed for precision shooting and heavier camera payloads up to 30kg / 66lb.

-- flowtech100 Mid-Level Spreader

NEW Carbon Fibre Mid-Level Spreader
For a fast and stable setup in narrow spaces or on uneven terrain. Four locking positions for simple setup and fast repositioning.
