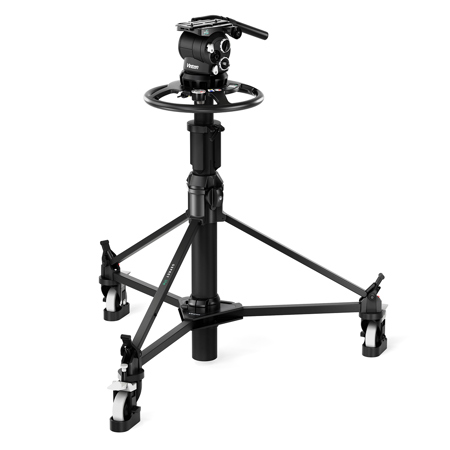

Vinten Versine 240 Fluid Head with Osprey Lite Studio Pedestal and Bowl Adapter

Versine 240 is the professional fluid head built for mobility. Engineered for roaming camera positions in live and field production, it delivers the smooth control and reliable balance operators need, without the bulk. Compact, tough, and easy to carry, it's made for crews who move fast and shoot live.

Versine 240 supports payloads up to 53 lbs (24kg) 4.9" (125mm) Centre of Gravity (CoG) - ideal for 40x zoom lenses and RF setups used with monocular viewfinders - and 66 lbs (30kg) at 3.5" (90mm) CoG - ideal for small studio setups with prompters. Its compact chassis is lightweight enough for field work, but tough enough for demanding productions - perfect for roaming OB setups, live events, and ENG positions. Perfect Balance technology ensures smooth positioning at any tilt angle, and TF30 Drag delivers exceptionally steady framing for long lens operation, while still allowing fast whip pans. All controls stay in a fixed position on the left side, so adjustments are quick and instinctive.

This system combines the Versine 240 with the Osprey Lite Pedestal to create a lightweight and portable studio pedestal configuration. The Osprey Lite has 2 stages for capturing both extremely high and low shots, and its upper stage is perfectly balanced for 'on shot' talent tracking. Track locks and adjustable cable guards ensure smooth movement across the studio floor. A detachable skid allows the pedestal to be separated into two sections for convenient storage and transport. The system also includes a multi-functional base assembly that can be added to the Versine 240 using its four captive hex screws and allows the head to be fixed to the pedestal using the 4-bolt flat base standard (Versine 240 bowl stud must be removed).

Versine 240 is built to last. Its all-metal construction and broadcast-grade components deliver strength and dependability, which is matched by the robust design of the Osprey Lite pedestal. Versine 240 with the Osprey Lite is a compact and portable pedestal solution engineered to withstand the realities of professional field production - day after day, location after location.

- Versine 240 Fluid Head -

Follow the Action, Frame the Moment.
Versine 240 is the professional fluid head built for mobility. Engineered for roaming camera positions in live and field production, it delivers the smooth control and reliable balance operators need, without the bulk. Compact, tough, and easy to carry, it's made for crews who move fast and shoot live.

Designed to do more
Compact in the design, big on performance. Versine 240 supports payloads up to 24 kg (53 lbs), ideal for 40x zoom lenses and RF setups used with monocular viewfinders. Its efficient chassis is lightweight enough for field work, but tough enough for demanding productions - perfect for roaming OB setups, live events, and ENG positions.

• Payload range: 0-53 lbs (0-24kg), ideal for ENG and EFP workflows
• Versatility: Supports from lightweight digital cine to large broadcast setups
• Mobility: Light, strong and agile

Designed for professionals
Versine 240 gives operators the precision and responsiveness needed for live coverage. Perfect Balance technology ensures smooth positioning at any tilt angle, and TF30 Drag delivers exceptionally steady framing for long lens operation, while still allowing fast whip pans. All controls stay in a fixed position on the left side, so adjustments are quick and instinctive.

• Perfect Balance: Maintains smooth, precise framing even during the longest takes
• Feel: Drag optimized to work exceptionally at all speeds and focal lengths
• Ergonomics: Operator-side controls for fast, intuitive use with monocular

Designed with setup in mind
Speed and simplicity matter when you're on the move. Versine 240 features low-effort, multi-turn dials for balance and drag, a secure platform release lever, and a carry handle for quick transport. A hoist and tethering point provides added flexibility for overhead or gantry mounting.

• Made to move: Lightweight magnesium chassis and built-in handle
• Easy adjustments: Low-effort, illuminated controls
• Field ready: Designed for fast-moving teams and changing locations

Designed for life
Versine 240 is built to last - day after day, location after location. Its all-metal construction and broadcast-grade components deliver strength and dependability engineered to withstand the realities of professional field production. Reliable, serviceable, and made for life.

• Durability: Built for tough live production environments
• Longevity: All-metal construction

Features
• Perfect Continuous Counterbalance to negate the effect of gravity on any payload
• Thin Film drag (TF30) for precise control at low speeds and outstanding whip pan performance at high speed
• Left-hand positioned, low-effort gear driven balance and drag dials for supreme ergonomics
• Extensive operating temperature from -40 Degree F to 140 Degree F (-40 Degree C to 60 Degree C)
• Lightweight all Magnesium alloy chassis
• All Metal construction
• Mounting points for optional Versine arm


- Wheeled ENG Tripod System Soft Case -
Wheeled rigidized soft case for protecting 2-stage ENG tripod systems. Suitable for both Versine ENG and Vision systems, it includes a comfortable carry handle and padded shoulder strap, as well as wheels for easy portability.

Features
• Protective case for ENG tripod systems
• Comes with Carry handle, shoulder strap and wheels
• Suitable for Versine and Vision systems

- Osprey Lite Pedestal -
Portable and Lightweight 2-Stage pedestal with perfectly balanced stage for 'on shot' movement in studios. Payload up to 77 lbs (35kg).

The Osprey lite is a lightweight, compact pedestal. It has 2 stages for achieving very high and low shots, and the upper stage is perfectly balanced for on shot tracking of talent. It has an integral manual pump and an inlet valve for use with an external supply, making Perfect Balance easy to achieve. In addition, the Osprey lite pedestal includes a pressure gauge for clear and reliable set-up and the detachable skid allows the pedestal to be simply broken down into two sections for easy storage and transportation. The Osprey Lite pedestal comes with track locks and adjustable cable guards for studio use.

Features
• Detachable skid for easy transport and storage
• Built in pressure gauge and manual pump for easy set-up
• Perfect balance & adjustable second stage for wide operating range
• Lightweight and compact
• Column can be adapted to work on dolly track

- 150mm Bowl Adapter -
This adapter adds 150mm bowl, Quickfix and 4-bolt flat standards to the base of a Versine fluid head. Attached as standard to the Versine 360, the adapter can be added to the Versine 240 to increase the mounting options of the head

Note: Versine 240 bowl stud must be removed for Quickfix and flat base fixings.

Features
• Base adapter incorporating 150mm, Quickfix and Flat Base standards
• Observation holes for 4-bolt fastening
