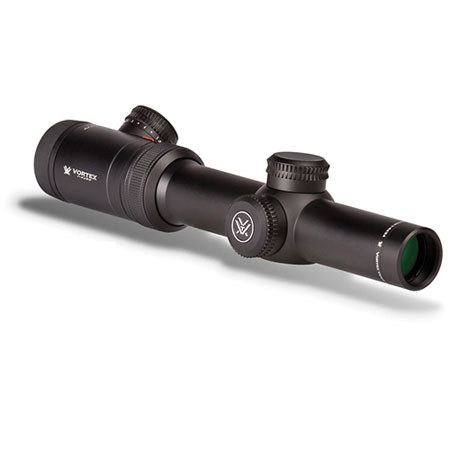

Vortex Optics Viper HS 1-4x24 Riflescope Specifications

  • Magnification

    1x - 4x

  • Objective / Field of View

    24mm / 98.0' (29.9m) @ 1x at 100 yds.(100m), 27.5' (8.4m) @ 4x at 100 yds.(100m)

  • Main (Center) Tube Diameter

    30mm

  • Objective Tube Diameter

    1.1"

  • Eyepiece Tube Diameter

    1.5"

  • Lens Coatings

    XR Anti-Reflective Fully Multi Coated Optics

  • Reticle

    Illuminated TMCQ MOA (Tactical Milling Close Quarters)

  • Reticle Image Plane (Magnifying)

    Second

  • Brightness Adjustments

    10 Intensity Levels

  • Exterior Finish

    Matte Black

  • Windage & Elevation Adjustments (MOA)

    1/2-M.O.A. Per Click

  • Maximum Adjustment

    90 MOA W & E

  • Exit Pupil

    Not Specified by Manufacturer

  • Eye Relief

    4.0" / 101.6mm @ 1x, 4.0" / 101.6mm @ 4x

  • Parallax Correction Control

    100 Yards

  • Diopter Adjustment

    No Diopter Adjustment

  • Battery

    CR-2032

  • Battery Life

    Depends on Intensity

  • Material

    Aluminum Alloy

  • Nitrogen Filled

    Neutral Pressure Nitrogen Purging

  • Waterproof / Fogproof

    Yes

  • Length

    9.7", (246.4mm)

  • Mounting Length

    6.0"

  • Weight

    16.0 oz., 453.6g

  • Special Features

    Reticle Image in the Second Focal Plane.
    Argon Gas Purging.

  • UPC Code

    875874003262

7 Accessories for Vortex Optics 1-4x24mm Viper HS Series Riflescope, Matte Black Finish with Illuminated TMCQ MOA Reticle, 30mm Tube

  • All Accessories (7)
  • Sights & Accessories (2)
  • Cleaning Accessories (4)
  • Bags & Cases (1)

About Vortex Optics Viper HS 1-4x24 Riflescope

An evolutionary upgrade, this Vortex Viper HS riflescope offers shooters an array of features sure to be well received. A new optical system highlighted with a 4x zoom range provides magnification versatility. The ultra-friendly eye box with increased eye relief gets shooters on target quickly and easily - because shooting opportunities can be measured in fractions of seconds. Built on a ultra-strong 30mm one-piece machined aluminum tube, the Viper HS delivers increased windage and elevation travel for optimal adjustment.

The Viper HS 1-4x24 with the TMCQ (Tactical Milling Close Quarter) illuminated reticle is ideally suited for AR platform rifles, as well as dangerous game setups. Ten intensity levels of illumination with an off position between each give shooters quick access to preferred settings. Whether you're first-in during entry, or trying to break down a brown bear in the willows, the Viper HS 1-4x24 will help get the job done.

Vortex Optics Viper HS 1-4x24 Riflescope Features

  • XD Lens Elements: Extra-low dispersion (XD) glass increases resolution and color fidelity, resulting in crisp, sharp images
  • XR Lens Coatings: Vortex proprietary XR fully multi-coated lens coatings increase light transmission for maximum brightness
  • 30 mm Tube: Provides greater strength and wider adjustment latitude
  • One-Piece Tube: Maximizes alignment for improved accuracy and optimum visual performance as well as strength and waterproofness
  • Aircraft-Grade Aluminum: Construction from a solid block of aircraft-grade aluminum delivers increased strength and rigidity
  • Waterproof: O-ring seals prevent moisture, dust and debris from getting inside the tube for reliable performance in all environments
  • Fogproof: Filled with argon gas to inhibit internal fogging over a wide range of temperatures
  • Shockproof: Lenses are locked in place, fore and aft, with machined locking rings to remain in perfect alignment and withstand recoil and impact
  • Hard Anodized Finish: Hard-coat anodization is durable; the low-glare matte helps camouflage the shooter's position
  • ArmorTek: Ultra-hard, scratch-resistant coating protects exterior lenses from scratches, oil and dirt
  • Capped Turrets: Protect from accidental movement and impact
  • MagView Bar: Combines a fiber optics magnification indicator with raised rear-facing magnification references for clear viewing in low light conditions. Patent pending
  • Fast Focus Eyepiece: Allows quick and easy reticle focusing

What's in the box:

  • Vortex Optics Viper HS 1-4x24 Riflescope
  • CR2032 Battery
  • Protective Lens Caps
  • Vortex Optics Lifetime Warranty
