VocoPro BenchMark-Quad Touring Grade True Diversity Wireless System, Antenna Distribution System w/2x Active Directional Antennas, 4x Handheld Tx

SKU: VPBMQHH MFR: BENCHMARK-QUAD-HH
Earn VIP Reward Points

Key Features

  • Experience superior sound quality with this wireless microphone system, perfect for live performances.
  • Enjoy a wide 600 ft. operating range, giving you freedom to move during your karaoke or event.
  • This handheld wireless microphone system includes 4 mics, ideal for group performances and events.
  • The true diversity system ensures a stable signal, minimizing dropouts for uninterrupted audio clarity.
  • With 8-10 hours of battery life, these wireless microphones are reliable for extended use at gigs.
  • The included antenna distribution system enhances signal strength, optimizing your wireless range.
See More Product Details
Temporarily On Backorder?Expected Availability: 10/2025Request assistance or get notified
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$179.99

3 Year

$249.99

5 Year

$489.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

VocoPro BenchMark-Quad Specifications

System
  • Operating range

    600 ft. line of sight

  • AF response

    20Hz - 18KHz

  • T.H.D.

    <1% (@AF1 KHz, RF46 dBu)

  • Dynamic range

    >100dB

  • S/N ratio

    >90dB

  • Pilot Frequency

    32.768KHz

Receiver

Jump to...
  • AF output level

    Unbalanced +9dBu/ Balanced +9dBu

  • AF output impedance

    Unbalanced 810 Ohms/ Balanced
    240 Ohms

  • Sensitivity

    -100dBm/ 30dB sinad

  • Operation voltage

    12V-15V

Handheld Tx

Jump to...
  • Microphone type

    Dynamic

  • Output gain range

    10dB (0dB -- +10dB)

  • RF output power

    10mw/ 30mw optional

  • Operation voltage

    2x 1.5V AA battery

  • Operation time

    8-10 hours

  • Battery Info

    Required, included

  • Battery Material

    -

  • Battery Quantity

    8

  • Battery Type

    AA

Antenna Distributor

Jump to...
  • Input type

    BNC Coaxial

  • Frequency range

    470-980MHz (-3dB)
    RF out A: 0 +/-1dB
    A1 to A4: 0 +/-1dB
    B1 to B4: 0 +/-1dB

  • Impedance

    50 Ohms

  • Reflection loss

    10dB (all high frequency output)

  • Operation voltage

    12V DC

  • Unit power consumption

    200mA

  • Total power consumption

    Max 2.0A (4 receiver + 2 antenna)

  • Antenna

    RF in A and Antenna RF in B: 12V, 500mA

  • A1 to A4 power to receiver

    12V, 500mA

  • UPC Code

    692868236488

About VocoPro BenchMark-Quad

The VocoPro BENCHMARK true diversity wireless system is a touring grade, secure wireless system ready for the harshest environments.

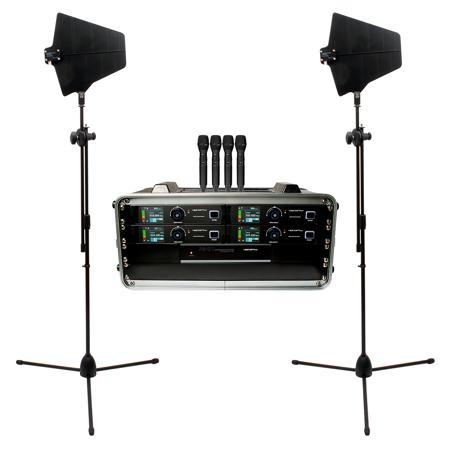

The system consists of true diversity receivers, handheld microphone, antenna distribution system and two active directional antennas. Packaged in a flight case and including floor stands for the antennas.

Tested at 600 feet of range line of sight, this wireless microphone package will take on the most critical job required, at a fraction of the cost of the competitor brand.

VocoPro BenchMark-Quad Features

  • Touring grade true diversity wireless microphone system
  • 600 feet of range (line of sight) when used with antenna distribution system and active directional antenna
  • Color display shows frequency, reception, and battery status
  • Scan feature with graphic display to show the status of RF traffic within range
  • Wireless synchronization via infrared between receiver and transmitter
  • Touring-ready rugged metal housing
  • Perfect for touring, outdoor events, and houses of worship

Product Documents

User Manual

Key Features

  • Experience superior sound quality with this wireless microphone system, perfect for live performances.
  • Enjoy a wide 600 ft. operating range, giving you freedom to move during your karaoke or event.
  • This handheld wireless microphone system includes 4 mics, ideal for group performances and events.
  • The true diversity system ensures a stable signal, minimizing dropouts for uninterrupted audio clarity.
  • With 8-10 hours of battery life, these wireless microphones are reliable for extended use at gigs.
  • The included antenna distribution system enhances signal strength, optimizing your wireless range.

What's in the box:

  • Receiver
  • 4x Handheld Transmitter (BM-HT)
  • Antenna Distributor
  • 2x Active Directional Antenna
  • 1/4" Cable
  • BNC Connector Cable
  • Power Cable
  • Power Adapter
  • Long Rack Mount
  • Short Rack Mount
  • Connect Panel
  • Ring Adapter
  • 2x Stand (BM-36)
  • FC-48 Case
  • VocoPro 1 Year Limited Warranty
