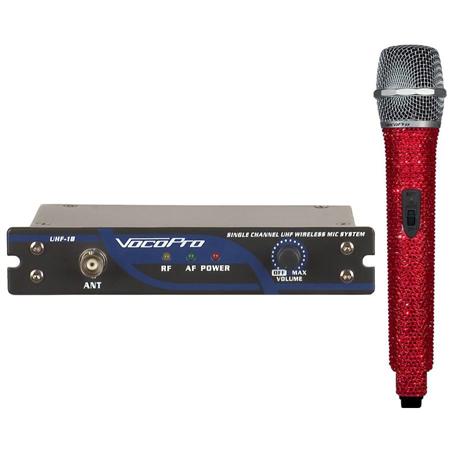

VocoPro UHF-18 DIAMOND Single Channel Crystal Encrusted UHF Wireless Microphone System, N: Channel 49 (685.960MHz), Ruby

SKU: VPUHF18DMNDN

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

VocoPro UHF-18 DIAMOND Specifications

  • Receiver: Frequency Response

    50 to 18000Hz

  • Receiver: Working Distance

    200' / 60.96m

  • Receiver: Frequency Stability

    +/-5 PPM =10kHz

  • Receiver: RF Sensitivity

    -105dBm

  • Receiver: THD

    <0.5% at 1kHz

  • Receiver: AF Output

    Impedance: 2.2kOhms

  • Receiver: Audio Output Level

    -12 dB

  • Receiver: Operational Voltage Range

    13.5 to 24 VDC at 800 mA

  • Receiver: Output Connector

    1x unbalanced 1/4"

  • Receiver: Power Connections

    1x 12 to 18 VDC power adapter input (for use in stand-alone mode only)
    1x 6-Pin multi-purpose plug (for use with VocoPro karaoke and PA systems only)

  • Microphone: Channel

    N: 49

  • Microphone: Frequency

    685.960MHz

  • Microphone: Element

    Dynamic microphone

  • Microphone: Dynamic Range

    >110 dB

  • Microphone: Carrier Frequency

    694.110MHz

  • Microphone: Frequency Stability

    +/- 0.005%

  • Microphone: Frequency Deviation

    +/- 48kHz

  • Microphone:Harmonic & Spurious Emissions

    <-60dBc

  • Microphone: Output Power

    10mW

  • Microphone: Power Consumption

    =100mA at 3 VDC

  • Microphone: Battery

    2x AA at 1.5 VDC

  • Dimensions

    Receiver: 6.00 x 4.25 x 1.25" / 15.24 x 10.80 x 3.18cm

  • Weight

    Receiver: 2lbs / 0.91kg

  • UPC Code

    692868279782

About VocoPro UHF-18 DIAMOND

Single Channel UHF Wireless Mic System
Ever find yourself thinking "if only I had one more wireless mic," or wanting to add a wireless mic to a non-wireless system Now you can, thanks to the UHF-18 from VocoPro. The UHF-18 is a single channel UHF wireless microphone module that can add wireless capability to any system with a 1/4" input. Designed as a plug-in module for VocoPro's HERO-RV, CHAMPION-RV and SOUNDMAN series, the UHF-18 is also a stand alone module that can hook up to any audio system with a 1/4" input. So if you are looking to add a wireless mic to your system without the cost and bulk of a multiple mic system, pick up a UHF-18 today.

UHF-18 Features
• Complies with New FCC Frequency Rules
• Can Be Used as a Plug-In Device or Independently
• UHF Antenna Connects Securely with BNC Plug
• Volume Control with Power Switch
• 1/4" Mic Out and DC Input for Independent Operation
• Fits Expansion Ports on the HERO-RV, CHAMPION-RV, DVD-SOUNDMAN and SOUNDMAN
• Microphone Requires Two AA Batteries
• Power Adapter and 1/4" Patch Cable Included

Crystal Studded UHF Wireless Microphone
You should look as stunning as you sound on stage. The U-DIAMOND microphone with its crystal-studding can add that extra bling to elevate your presence to a new level! Pick up your U-DIAMOND wireless mic and SHINE!

U-DIAMOND
• Comes with 1 microphone (transmitter only)
• Frequencies available: M, N, O, P, PII, Q, R, S, T
• Available in multiple brilliant colors
• Compatible with UHF 5800, UHF-8800, UHF-18, UHF-28, UHF-3200
• FCC license may be required
• Not a stand-alone unit, must be used in combination with a compatible unit

What's in the box:

  • Vocopro Receiver
  • Microphone
  • Antenna
  • Bag of Replacement Diamond Crystals
  • Power Adapter
  • 1/4 " Patch Cable
  • Vocopro 1 Year Limited Warranty
