VocoPro UHF-5800-C12 - 12 Channel UHF Wireless Microphone Package

SKU: VPUHF5800C12

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

VocoPro UHF-5800-C12 Specifications

  • UHF-5800-5 System: Type

    Multi-Channel UHF Handheld

  • UHF-5800-5 System: Channels

    E: 543.100 / F: 554.500 / G: 632.100 / H: 580.500MHz

  • UHF-5800-5 System: RF Carrier Freq Range

    600 - 698MHz UHF

  • UHF-5800-5 System: THD

    < 0.5% @1kHz

  • UHF-5800-5 System: Overall Freq Response

    40Hz to 16kHz

  • UHF-5800-5 System: Signal-to-Noise Ratio

    105dB

  • UHF-5800-5 System: # Of Channels

    4

  • UHF-5800-5 System: Includes

    UHF-5800 Receiver
    4 x Handheld Microphone Transmitters
    1/4" Phone Male to Male Cable (3') (91.44cm)
    8 x AA Alkaline Batteries
    AC Power Supply
    Aluminum Carrying Case
    VocoPro 1 Year Warranty

  • UHF-5800-5 Rx: Type

    Rack-Mounted Modular UHF

  • UHF-5800-5 Rx: Type of Outputs

    3-pin XLR x4
    1/4" Phone (Mixed) x1

  • UHF-5800-5 Rx: Headphone Monitoring

    No

  • UHF-5800-5 Rx: Power Requirements

    External DC Power Supply, 0.7A, 12-15V DC

  • UHF-5800-5 Rx: Display

    LED

  • UHF-5800-5 Rx: Mounting Options

    19-inch Rack Mountable

  • UHF-5800-5 Rx: Antenna Type

    Dual BNC

  • UHF-5800-5 Rx: Dimensions (WxHxD)

    18.9 x 1.8 x 7.8" (480.06 x 45.72 x 198.12mm)

  • UHF-5800-5 Tx: Type

    UHF Handheld x4

  • UHF-5800-5 Tx: Type of Microphone

    Dynamic

  • UHF-5800-5 Tx: Interchangeable Mic Heads

    No

  • UHF-5800-5 Tx: Battery Type

    x2 AA Batteries, 12 Hours(Approx. Life)

  • UHF-5800-5 Tx: Mute Switch

    On/Off

  • UHF-5800-5 Tx: Level Control

    No

  • UHF-5800-5 Tx: Antenna Type

    Internal

  • UHF-5800-5 Tx: Display

    LED

  • UHF-5800-6 System: Type

    Multi-Channel UHF Handheld

  • UHF-5800-6 System: Channels

    I: 588.250 / J: 576.625 / K: 593.500 / L: 567.100MHz

  • UHF-5800-6 System: RF Carrier Freq Range

    600 - 698MHz UHF

  • UHF-5800-6 System: THD

    < 0.5% @1kHz

  • UHF-5800-6 System: Overall Freq Response

    40Hz to 16kHz

  • UHF-5800-6 System: Signal-to-Noise Ratio

    105dB

  • UHF-5800-6 System: # Of Channels

    4

  • UHF-5800-6 System: Includes

    UHF-5800 Receiver
    4 x Handheld Microphone Transmitters
    1/4" Phone Male to Male Cable (3') (91.44cm)
    8 x AA Alkaline Batteries
    AC Power Supply
    Aluminum Carrying Case
    VocoPro 1 Year Warranty

  • UHF-5800-6 Rx: Type

    Rack-Mounted Modular UHF

  • UHF-5800-6 Rx: Type of Outputs

    3-pin XLR x4
    1/4" Phone (Mixed) x1

  • UHF-5800-6 Rx: Headphone Monitoring

    No

  • UHF-5800-6 Rx: Power Requirements

    External DC Power Supply, 0.7A, 12-15V DC

  • UHF-5800-6 Rx: Display

    LED

  • UHF-5800-6 Rx: Mounting Options

    19-inch Rack Mountable

  • UHF-5800-6 Rx: Antenna Type

    Dual BNC

  • UHF-5800-6 Rx: Dimensions (WxHxD)

    18.9 x 1.8 x 7.8" (480.06 x 45.72 x 198.12mm)

  • UHF-5800-6 Tx: Type

    UHF Handheld x4

  • UHF-5800-6 Tx: Type of Microphone

    Dynamic

  • UHF-5800-6 Tx: Interchangeable Mic Heads

    No

  • UHF-5800-6 Tx: Battery Type

    x2 AA Batteries, 12 Hours(Approx. Life)

  • UHF-5800-6 Tx: Mute Switch

    On/Off

  • UHF-5800-6 Tx: Level Control

    No

  • UHF-5800-6 Tx: Antenna Type

    Internal

  • UHF-5800-6 Tx: Display

    LED

  • UHF-5800-7 System: Includes

    4 x Wireless Handheld Microphones
    Wireless Receiver
    4 x Mic Holders
    3' Male to Male 1/4" Cable
    8 x AA 1.4V Alkaline Batteries
    Custom Aluminum Travel Case
    Power Adapter
    VocoPro 1 Year Limited Warranty

  • UHF-5800-7 Rx: Wireless Frequency

    689.500, 669.500, 666.025, 651.025

  • UHF-5800-7 Rx: Channels

    4 (One Per Module)

  • UHF-5800-7 Rx: Outputs

    4x XLR Channel Outputs 1x 1/4" (6.35 mm) Summed Output

  • UHF-5800-7 Rx: Oscillation Mode

    Quartz Controlled Fixed Frequency

  • UHF-5800-7 Rx: Stability

    10 PPM

  • UHF-5800-7 Rx: Sensitivity

    1.6 uV @ sinad = 12 dB

  • UHF-5800-7 Rx: Maximum Deviation

    50 Hz

  • UHF-5800-7 Rx: Signal to Noise Ratio

    > 105 dB

  • UHF-5800-7 Rx: Total Harmonic Distortion

    < 0.5% @ 1 kHz

  • UHF-5800-7 Rx: Image Rejection

    85 dB (Typical)

  • UHF-5800-7 Rx: Spurious Rejection

    75 dB (Typical)

  • UHF-5800-7 Rx: Frequency Response

    40 Hz to 16 kHz

  • UHF-5800-7 Rx: Squelch

    Dual-Squelch Circuit

  • UHF-5800-7 Rx: Maximum Output Level

    Balanced: 0 to 400 mV
    Unbalanced: 0 to 200 mV

  • UHF-5800-7 Rx: Power Supply

    External DC Power Supply, 0.7 A, 12-15 V DC

  • UHF-5800-7 Rx: Dimensions (LxHxD)

    18.9 x 1.8 x 7.8" (480 x 46 x 198 mm )

  • UHF-5800-7 Tx: Wireless Frequency

    689.500, 669.500, 666.025, 651.025

  • UHF-5800-7 Tx: Power

    30 mV

  • UHF-5800-7 Tx: Spurious Emission

    < 40 dB (With Carrier)

  • UHF-5800-7 Tx: Battery Voltage

    AA 1.5 V

  • UHF-5800-7 Tx: Battery Life

    12 hours

  • UHF-5800-8 System: Frequency Band

    U: Channel 43 (Yellow)
    Frequency: 648.5 MHz

    V: Channel 42 (Gray)
    Frequency: 643.5 MHz

    W: Channel 35 (Violet)
    Frequency: 599.3 MHz

    X: Channel 36 (Brown)

    Frequency: 604.125 MHz

  • UHF-5800-8 System: Includes

    UHF-5800 Receiver
    4 x Handheld Microphone Transmitter
    4 x Microphone Holder
    8 x AA 1.4V Alkaline Battery
    3' (0.9m) 1/4" Male to Male Cable
    AC Power Adapter
    Custom Aluminum Travel Case
    VocoPro 1 Year Limited Warranty on Parts & Labor

  • UHF-5800-8 Rx: Oscillation Mode

    Quartz controlled fixed frequency

  • UHF-5800-8 Rx: Stability

    10 PPM

  • UHF-5800-8 Rx: Sensitivity

    1.6 uV @ SINAD =12 dB

  • UHF-5800-8 Rx: Maximum Deviation Range

    50 Hz

  • UHF-5800-8 Rx: S/N Ratio

    >105 dB

  • UHF-5800-8 Rx: THD

    <0.5% @ 1kHz

  • UHF-5800-8 Rx: Image Rejection

    85 dB typical

  • UHF-5800-8 Rx: Spurious Rejection

    75 dB typical

  • UHF-5800-8 Rx: Frequency Response

    40 Hz to 16 kHz

  • UHF-5800-8 Rx: Squelch

    Dual-squelch circuit

  • UHF-5800-8 Rx: Maximum Output Level

    Balance: 0 to 400 mV
    Unbalance: 0 to 200 mV

  • UHF-5800-8 Rx: Power Supply

    External, 1.2 A, 12 to 18 VDC

  • UHF-5800-8 Rx: Dimensions

    18.9 x 1.8 x 7.8" (480.1 x 45.7 x 198.1 mm)

  • UHF-5800-8 Tx: Type

    Handheld microphone

  • UHF-5800-8 Tx: Tx Power

    30 mV

  • UHF-5800-8 Tx: Spurious Emission

    <40 dB with carrier

  • UHF-5800-8 Tx: Battery

    Type: 2 x AA
    Voltage: 1.5 V
    Life: 12 hours

  • Flight Case: Transport Options

    Heavy-duty rubber feet. Stackable ball corners

  • Flight Case: Racks

    4 (front and rear)

  • UPC Code

    692868578847

About VocoPro UHF-5800-C12

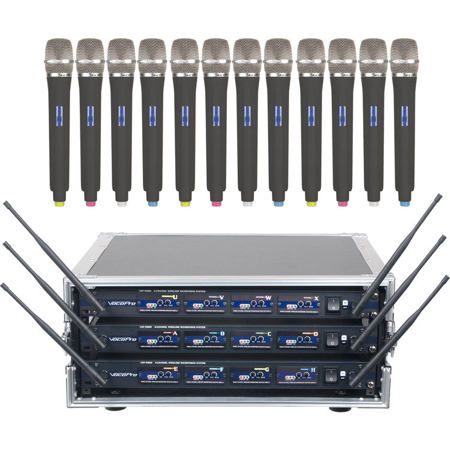

12 Channel UHF Wireless Microphone Package

Going wireless means that you are free from cables for more active performances that the crowd will never forget. Plus, a 12-hour Mic battery life means the party can go all night. KJs will love that each mic channel has its own field-replaceable module that easily slides out, without the need for tools and without affecting the functionality of the other channels. Vocalists, home entertainment enthusiasts and club-goers will all benefit from the reliability and versatility of the UHF-5800

UHF-5800-5 Wireless Microphone System

Experience ultimate freedom with the VocoPro UHF-5800 Professional 4-Channel UHF Wireless Microphone System (Channel 5: E, F, G, H). With 4 handheld mics, each on their own independent UHF channel, the UHF-5800 gives you maximized vocal options without the fear of frequency interference.

UHF-5800-6 Wireless Microphone System

Experience ultimate freedom with the VocoPro UHF-5800 Professional 4-Channel UHF Wireless Microphone System (Channel 6: I, J, K, L). With 4 handheld mics, each on their own independent UHF channel, the UHF-5800 gives you maximized vocal options without the fear of frequency interference.

UHF-5800-7 Wireless Microphone System

Experience ultimate freedom with the VocoPro UHF-5800 Professional 4-Channel UHF Wireless Microphone System (Channel 7: A, B, C, D). With 4 handheld mics, each on their own independent UHF channel, the UHF-5800 gives you maximized vocal options without the fear of frequency interference.

UHF-5800-8 Wireless Microphone System

Experience ultimate freedom with the VocoPro UHF-5800 Professional 4-Channel UHF Wireless Microphone System (Channel 8: U, V, W, x). With 4 handheld mics, each on their own independent UHF channel, the UHF-5800 gives you maximized vocal options without the fear of frequency interference.

Heavy Duty Flight Case, 4 Rack Units

The VocoPro FC-4 ATA Approved Karaoke Flight Case is a durable flight case that will keep your gear protected during transport.

VocoPro UHF-5800-C12 Features

  • Complies with New FCC Frequency Rules
  • 4 individual XLR Mic Outputs and one 1/4" Mixed Output
  • Individual Volume controls for precise vocal balancing
  • 4 independent Field-replaceable Modules
  • Interference-resistant UHF Band operation
  • Rugged 1RU metal receiver chassis
  • Low power consumption design for longer battery life
  • Heavy-Duty Flight Case Features
  • 4 rack-units ATA-approved flight case
  • Dual rack rails (front and rear)
  • Removable front and rear covers
  • Road ready and built to last!

Key Features

  • UHF-5800-5 Features
  • Complies with New FCC Frequency Rules
  • 4 individual XLR Mic Outputs and one 1/4" Mixed Output
  • Individual Volume controls for precise vocal balancing
  • 4 independent Field-replaceable Modules
  • Interference-resistant UHF Band operation

What's in the box:

  • UHF-5800-5 Wireless Microphone System
  • UHF-5800-6 Wireless Microphone System
  • UHF-5800-7 Wireless Microphone System
  • UHF-5800-8 Wireless Microphone System
  • Heavy Duty Flight Case (4 RU)
  • VocoPro 1 Year Limited Warranty
