VocoPro UHF-8800-XL Specifications

Receiver

Receiver

Jump to...
  • Frequency Range

    900 MHz UHF band

  • Outputs

    1x 1/4" mixed mic output, unbalanced (channel 1-4)
    1x 1/4" mixed mic output, unbalanced (channel 5-8)
    8x XLR-male, individual mic outputs, balanced (M, N, O, P, Q, R, S, T frequency)

  • Oscillation Mode

    Quartz-controlled fixed frequency

  • Stability

    10 PPM

  • Sensitivity

    1.6 uV at SINAD = 12 dB

  • Maximum Deviation Range

    50 Hz

  • S/N Ratio

    > 105 dB

  • THD

    < 0.5% at 1 kHz

  • Image Rejection

    85 dB typical

  • Spurious Rejection

    75 dB typical

  • Frequency Response

    40 Hz to 16 kHz

  • Squelch

    Dual-squelch circuit

  • Maximum Output Level

    Balanced: 0 to 400 mV
    Unbalanced: 0 to 200 mV

  • Power Supply

    External, 1.2 A, 12 to 18 VDC

Transmitter

Jump to...
  • Transmitter Power

    30 mV

  • Spurious Emission

    < 40 dB with carrier

  • Battery

    Type: 2x AA
    Voltage: 1.5 V
    Life: 12 hours

General

Jump to...
  • Dimensions

    Receiver: 19.0 x 8.8 x 3.8" (48.26 x 22.35 x 9.65cm)

  • Weight

    Receiver: 18.0 lbs (8.16kg)

  • UPC Code

    692868958809

About VocoPro UHF-8800-XL

Our UHF-8800-XL package takes the proven UHF technology we're known for and lifts it to new heights. With 8 handheld microphones, 8 professional mic stands and 2 XLR-Quad cables, you have everything required to get even the largest groups up on stage without the complicated tangle of wires. The included microphone stands clean up the performance area while providing the professional look that'll make you stand out.

The XLR-Quad cables enable easy set up while providing the highest quality sound from the 8 dedicated XLR outputs located on the back of the rugged metal-chassis receiver. The entire microphone system is secured into a professional carrying bag to for easy transport and quick setup time. The UHF-8800-XL package is ready to tackle the largest performance groups while providing the clear sound VocoPro is known for.

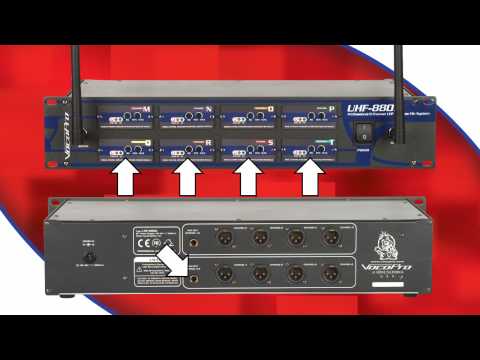

UHF-8800 Professional 8 Channel UHF Wireless Microphone System
Building on VocoPro's proven UHF-5800 series, the UHF-8800 doubles that microphone capability with an astonishing 8 wireless microphone channels. While perfect for multi-microphone speaking engagements and public address, the UHF-8800's superior vocal reproduction still makes it a top choice for singers and DJs seeking the best sound for their shows. The UHF-8800 is the ultimate in versatility and flexibility and is ready-to-go for any occasion.

VocoPro UHF-8800-XL Features

  • Future-Proof UHF 900MHz Band Operation
  • 8 XLR Microphone Outputs
  • 2 1/4" Mixed Mic Outputs (1: Ch 1-4, 2: Ch 5-8)
  • 8 Handheld Microphones Included
  • Individual Volume Controls for Precise Vocal Balancing
  • Individual Squelch Control on Each Mic Channel
  • 8 Independent Field-Replaceable Modules
  • Rugged 2RU Metal Receiver Chassis
  • Aluminum Carrying Case Included
  • BAG-88 Carrying Bag Included
  • Battery Life - 12 Hours
  • FCC License May Be Required

What's in the box:

  • VocoPro UHF-8800 Receiver
  • 8x Handheld Microphone Transmitters
  • 2x XLR-QUAD-3/4-Channel Male XLR to Female XLR Snake Cables
  • 2x 1/4 " to 1/4 " Patch Cables
  • 8x MP-35 Microphone Stands
  • 10x WS-5 Mic Windscreens (Assorted Colors)
  • Power Adapter
  • Aluminum Carrying Case
  • BAG-88 Heavy-Duty Mic Carrying Bag
  • VocoPro 1 Year Limited Warranty
