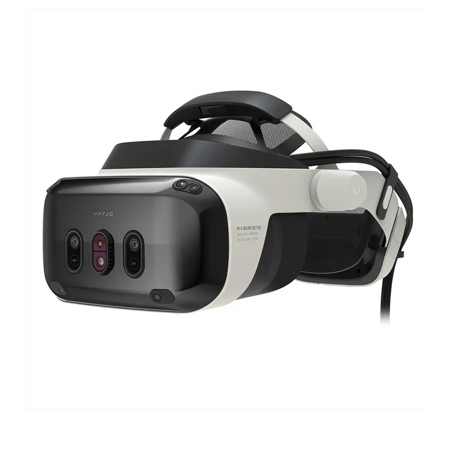

Varjo XR-4 Secure Edition Autofocus Mixed Reality Headset with Base Station Tracking, No Radio

SKU: VR0018500

This item is no longer available.

Recommended Alternatives

Overview
Compare
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

Varjo XR-4 Secure Edition Specifications

  • Display & Resolution

    4K x 4K Mini-LED displays (200 nits)
    Full dome aspheric variable focus lenses
    3840 x3744 panel resolution
    Colors: 98% sRGB, 96% DCI-P3

  • Field of View

    120 Degree x 105 Degree

  • Refresh rate

    90Hz

  • Hand tracking

    With LeapMotion 2 add-on

  • Comfort & Wear ability

    Zero-gravity fit
    Active cooling
    Automatic IPD 56-72mm
    Replaceable, easy-to-clean face cushions

  • Connectivity

    One display port cable in box
    One USB-C cable in box
    One USB adapter in box

  • Positional Tracking

    Integrated inside-out tracking
    SteamVR tracking compatible with optional add-on

  • Eye tracking

    200 Hz with one degree accuracy

  • Audio

    Integrated spatial audio speakers + 3,5mm audio jack
    Two integrated noise cancelling microphones

  • Mixed reality

    Autofocus, 22ms latency, dual 20-megapixel 51 PPD video pass-through

  • XR Depth

    300 kilo pixels LiDAR with 7m operating range, 30 FPS

  • Certified

    TAA / BAA compliant

  • Battery Info

    Required, included

  • Battery Material

    Lithium ion

  • Battery Type

    Non-universal

  • Battery Quantity

    1

  • Weight

    23.5 oz (665g)
    Headband: 12.6 oz (356g)

About Varjo XR-4 Secure Edition

Enhance your training and simulation environments with the Varjo XR-4 Secure Edition Autofocus Mixed Reality Headset, a TAA-certified device meticulously crafted for secure environments. This advanced mixed reality headset seamlessly blends real-world and virtual elements, offering a cost-effective solution for immersive training scenarios. Assembled in Finland's state-of-the-art facilities, the XR-4 Secure Edition is optimized for high-security applications, ensuring no online connectivity requirements.

Experience unparalleled visual fidelity with the XR-4 Secure Edition's industry-leading 4K by 4K mini-LED displays, delivering 200 nits of brightness and a 96% DCI-P3 color space. The revolutionary full-dome optics provide flawless aspheric clarity across a wide 120-degree x 105-degree field of view, replicating true human vision with dual 20-megapixel cameras. This setup powers an impressive 51 PPD pass-through and introduces the world's first gaze-driven XR autofocus system, enhancing the mixed reality experience.

The XR-4 Secure Edition is designed for interactive training, featuring integrated speakers with DTS 3D spatial audio and dual noise-cancelling microphones. Advanced sensor fusion technology combines 300 Kpix extended range LiDAR, 200 Hz eye tracking, and ambient light reconstruction cameras, ensuring precision and accuracy in mixed reality simulations.

For those requiring flexible tracking solutions, the headset includes standard inside-out tracking with full 6DoF positional capabilities. Options for SteamVR tracking, ART, and OptiTrack are available via API, and hand tracking can be added with the optional Ultraleap hand tracking kit.

The XR-4 Secure Edition is built for high-performance simulations, supporting graphically intense and computationally complex software at high frame rates. Its offline operation and absence of radio components make it ideal for closed-loop network environments and high-security situations.

Choose between two variants of the XR-4 Secure Edition: the fixed focus version for virtual content-centric experiences, or the autofocus version for scenarios requiring detailed real-world element integration, such as simulators with intricate physical cockpits.

Benefit from world-class support, including priority response times, guided onboarding, and priority shipping. The Varjo XR-4 Secure Edition is your gateway to a secure, immersive, and versatile mixed reality experience, tailored to meet the demands of the most rigorous training and simulation environments.

Varjo XR-4 Secure Edition Features

  • Dual mini-LED displays
  • 3840 x 3744 resolution at 51 PPD
  • 120 Degree x 105 Degree field of view
  • 98% sRGB, 96% DCI-P3 color space
  • 90 Hz refresh rate
  • 200 nits brightness
  • 20 MP pass-through cameras
  • 51 PPD pass-through with Autofocus
  • Inside-out tracking
  • ART and OptiTrack supported via API
  • 300 Kpix LiDAR with 7m range
  • 200 Hz eye tracking
  • Auto-IPD
  • Integrated speakers
  • Noise-cancelling microphones
  • Zero-gravity comfort fit
  • No radio component version available

Warranty Information

This product has a limited warranty of 12 months.

Key Features

  • TAA-certified mixed reality headset for secure environments
  • Industry-leading 4K by 4K mini-LED displays with 200 nits brightness
  • Dual 20-megapixel cameras with 51 PPD pass-through and gaze-driven autofocus
  • Advanced sensor fusion with LiDAR, eye tracking, and ambient light cameras
  • Integrated DTS 3D spatial audio and noise-cancelling microphones
  • Flexible tracking options, including inside-out, SteamVR, ART, and OptiTrack

What's in the box:

  • Varjo XR-4 Secure Edition Autofocus Mixed Reality Headset with Base Station Tracking
  • Headset Adapter
  • 3-Port Charger with 5x Power Plugs (EU/UK/US/AUS/KOR)
  • USB-C Connector Charging Cable (1.5m)
  • DisplayPort Connector Cable (5m)
  • USB-C Connector Data Cable (5m)
  • (Controllers Not Included)
  • Varjo 1 Year Limited Warranty
