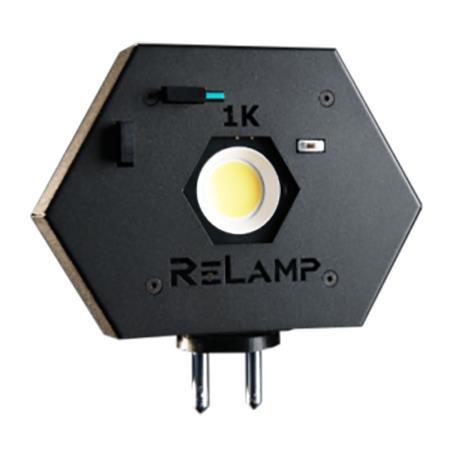

Visionsmith ReLamp 1K Specifications

  • Compatibility

    Arri 1K Plus, Arri T1, Strand, Colortran Fresnels

  • Replaces halogen lamp

    EGR 750W (inside Fresnel fixtures)

  • White Light Options (CCT Kelvin)

    Tungsten 3200K

  • Color Temperature Tolerance

    +/- 100 K nominal

  • Color Quality

    Tungsten Version: 96 CRI / 96 CQS / 96 TLCI

  • Beam Angle

    110 deg.

  • Light Emitting Area

    22 mm (0.88")

  • Handling

    Metal Enclosure

  • Mounting

    Internal Socket: G22 Bi-Post Base

  • Power Supply Range

    90-250V AC 50/60Hz World-Wide Compatible

  • Power Consumption

    100 W MAX

  • Power Connection

    Internal Socket: G22 Bi-Post Base

  • AC Dimming

    0-100% continuous on typical triac AC dimmers

  • Ambient Temperature Operation

    -20 to 45 deg. C (-4 to 113 deg. F)

  • Storage Temperature

    -20 to 70 deg. C (-4 to 158 deg. F)

  • IP Rating

    IP 20

  • Estimated Lifetime of LED

    50,000 hours

  • Estimated Color Shift Over Lifetime

    +/- 5% (CCT)

  • Fan noise level: S mode / L mode

    12db / 15db

  • Weight

    0.66 lbs (0.30kg)

  • UPC Code

    736902378564

About Visionsmith ReLamp 1K

The ideal way to upgrade to LED
• No Down-Time: Relamp your studio from Halogen to LED instantly
• Ultra-High Quality: 98CRI - matches Tungsten without correction
• Full-range dimming on your existing AC Dimmers - without color shift!
• Flicker-Free: even when dimmed down.
• Safe: no burns, no fire hazard, does not explode like Halogen
• No heat on subject or talent
• Environmentally Conscious: Easiest way to make your business sustainable.
• Reliable: Fully self-protected for a very long life, ongoing warranty available.
• ROI: A typical TV studio saves thousands beyond the initial cost within the first year!
• 1/4 the cost of comparable 1k LED Fresnels.

Brighter than Mole 1000W with Optional Fresnel Lens Upgrade:
Brighter! Using our Super Lens, the 150W ReLamp 1K LED makes the Mole Baby brighter than the Mole Baby using a 1000W Halogen and the old glass lens. If you add our Aspheric Diffractive Plano-Convex Lens to your Fresnel, you can increase the output, project a more uniform light field and get a greater focusing range.

No Heat On Subject
Thermal imaging shows clearly that the Halogen is on the left. It is too hot to touch and is projecting a hot spot (large pink area) on the wall 10ft away. The ReLamp LED projects no heat on the subject.

Radiant Heat
The Halogen lamp quickly heats up the ceiling above the instrument and the rest of the room.

Cinewhite - Spectral Quality
CineWhite solves the color-rendering dilemmas most cinematographers associate with LEDs. With a smooth, continuous spectral distribution, it produces pure white on film and digital cameras and matches existing tungsten sources. You will get no surprises. Gels look just right, everything looks just right. CineWhite tungsten renders without surprises on faces, makeup, unusual fabrics, all the subtleties show up as expected, due to the even continuous spectrum. This is not possible with RGB LEDs

What's in the box:

  • Visionsmith ReLamp 1K Tungsten LED Lamp
  • Visionsmith 2 Year Warranty
