Visionsmith Hexolux XUM D7 Specifications

  • Power Consumption

    Max: 150W / 1.25A on 120V AC
    Max: 125W on DC

  • Power Factor

    0.99 Active Correction

  • AC Power Supply

    World compatible: 85-264V AC, 47-63Hz

  • DC Input

    12-24V 4-PIN XLR

  • Batteries

    V-Mount, Gold-Mount, adapters available for typical camera batteries

  • White Light

    5300K
    CineWhite

  • Absolutely Flicker-Free

    Even when dimmed, there is no flicker - ideal for high-speed

  • Dimming

    0-100% continuous, negligible color shift

  • Calibrated f-stop dimming

    f-stop reduction is displayed as you dim the light

  • Remote Control

    DMX in and through, wireless and iOS option available

  • Weather

    Standard Indoor / Optional weather proof version

  • Optical

    High-Transmittance 7" Focusing Fresnel Lens with Tilt-Shift

  • Beam Angle

    11 deg. - 70 deg. (Half Peak Angle)

  • Mounting

    both 28mm(1/8") spud with 5/8" receiver (Motion Picture/TV-Baby/Junior)

  • Tilt Angle

    -60 deg. /+90 deg. with friction lock

  • Photometric: Full Spot 11deg.

    5': 3360
    9.8': 885
    16.4': 300

  • Photometric: Spot 15deg.

    5': 2020
    9.8': 645
    16.4': 220

  • Photometric: Medium 30deg.

    5': 770
    9.8': 224
    16.4': 82

  • Photometric: Flood 60deg.

    5': 280
    9.8': 80
    16.4': 35

  • Photometric: Full Flood 70deg.

    5': 200
    9.8': 56
    16.4': 25

  • Ambient Temperature

    -10 to 45 deg. C / 14 to 113 deg. F

  • Dimensions

    7 x 10 x 7" / 177.80 x 254.00 x 177.80mm

  • Weight

    5.5lbs / 2.49kg

About Visionsmith Hexolux XUM D7

• Brighter than a 1k Tungsten or a 200W HMI
• Weighs a fraction of anything else as bright
• Runs cool to the touch
• Quick to setup, adjust and break down
• Unmatched versatility: cast any kind of light immediately
• Beautiful adjustable soft light with the xoft Soft-Box
• Precise hard light
• Even light field
• extreme zoom range 11deg. - 70deg.
• Cool to the touch
• No heat on subject
• No color shift when dimming
• F-Stop calibrated dimming
• flawless color rendition
• 98 CRI Tungsten / 94CRI daylight
• Ultra lightweight heavy-duty metal construction

150w Daylight LED with the highest CRI and PureBeam technology
Visionsmith's CineWhite LEDs eliminate the color-rendering concerns associated with mostother LED sources. Now you can mix LED with traditional sources and get great results naturally. PureBeam casts a beautiful uniform circle of light, ideal for beam control, lighting formovement and covering uniform surfaces like green-screens. The light-field produced is aperfect balance between the hotspot look of a Fresnel and the more even light-field of anellipsoidal.

Easier and Faster
At 6.5lbs you can move the D7 quickly and easily. The ultra wide range zoom get you from 11deg.all the way out to over 75deg. in one motion. Now you can get a much greater range of lightingeffects immediately.

Cancel Fall-Off
You can tilt the lens at an angle to cast more light on one side of the light-field. This way youcan light anything from an angle and adjust the falloff so the entire subject is the same brightness. Now you can light a green-screen from one side and get uniform illumination, canceling thefalloff. You can also light a group of people from the side with the same brightness from near tofar. You can light for movement, so as someone walks closer to the light, they do not getbrighter. These effects normally require a much larger light that is set further away for the falloffto even out with distance. So you get a much bigger look with a much smaller light.

Cool is Safe
No heat on the subject, no need for gloves and no fear of starting a fire or triggering sprinklers.The amazing effect these lights have on workflow have to be experienced to be appreciated.No more interrupting creative flow to cool down the set or mop the brow of talent.

What's in the box:

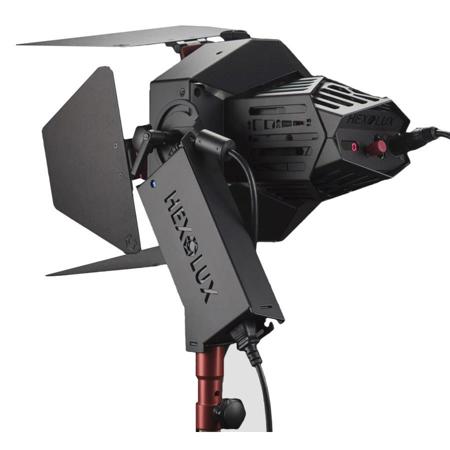

  • Visionsmith Hexolux XUM D7 Black Daylight LED Light
  • 15' Power Cord
  • Visionsmith Lifetime Limited for Upgradeable LED Emitter and 1 Year for Light Warranty
