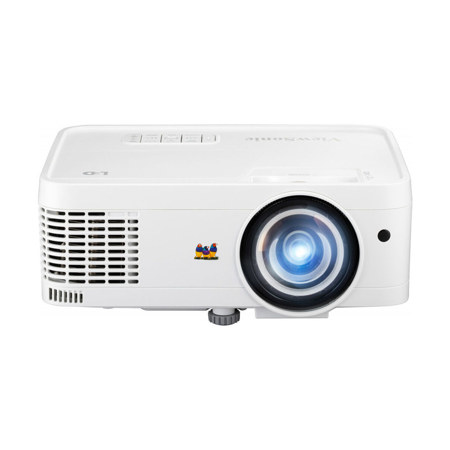

ViewSonic LS560WH WXGA Short Throw LED Projector

SKU: VSLS560WH MFR: LS560WH
Earn VIP Reward Points

Key Features

  • Experience vibrant visuals with 3,000 LED Lumens, perfect for well-lit rooms and clear presentations.
  • Enjoy a long-lasting LED lamp life of up to 30,000 hours, reducing maintenance and replacement costs.
  • The WXGA resolution (1280x800) delivers sharp images, ideal for detailed charts and graphs in meetings.
  • Short throw lens projects a large image from a short distance, great for small offices and classrooms.
  • Connect easily with HDMI, USB, and LAN ports, ensuring compatibility with various devices and networks.
  • Benefit from excellent image quality with a 3,000,000:1 contrast ratio for deeper blacks and vivid colors.
See More Product Details
Ships from Manufacturer?
Calculate Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$49.99

3 Year

$79.99

4 Year

$89.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

ViewSonic LS560WH Specifications

Display

Display

Jump to...
  • Light Source

    LED

  • Screen Size

    30 - 300" (0.76 - 7.62m)

  • Throw Distance

    0.63-1.58m (87"@0.92m)

  • Throw Ratio

    0.49

  • Lens

    Fixed Zoom

  • Light Source (watt)

    RGB LED

  • Light Source Life, Normal

    30000 hours

  • Color Depth

    1.07 Billion Colors

  • Input Lag

    37ms

  • Display Resolution

    WXGA (1280x800)

  • Brightness (Lumens)

    3,000 LED (2,000 ANSI)

  • Dynamic Contrast Ratio

    3,000,000:1

  • Aspect Ratio

    16:10

  • Keystone

    Vertical (+/- 40 Degree ) / Horizontal (+/- 40 Degree )

Video Signal

Jump to...
  • Frequency Horizontal

    15K-102KHz

  • Frequency Vertical

    23-120Hz

Compatibility

Jump to...
  • PC Resolution (max)

    VGA(640 x 480) to Full HD(1920 x 1080)

  • Mac Resolution (max)

    480i, 480p, 576i, 576p, 720p, 1080i, 1080p

Connector

Jump to...
  • USB 2.0 Type A

    1x

  • Ethernet LAN (RJ45)

    1x

  • 3.5mm Audio Out

    1x

  • 3.5mm Audio In

    1x

  • Control (RS232)

    1x

  • HDMI 1.4 (with HDCP 1.4)

    1x

  • Internal Speakers

    2W (x1)

  • Voltage

    100-120V+/- 10%, 50/60Hz

  • Consumption (typical)

    229W

  • Stand-by

    <0.5W

Controls

Jump to...
  • Physical Controls

    Keypad, Power key

  • On Screen Display

    Display, Image, Power Management, Basic, Advanced, System, Information (See user guide for full OSD functionality)

Operating Condition

Jump to...
  • Temperature

    32-104 Degree F (0 - 40 Degree C)

General

Jump to...
  • Color

    White

  • Kensington Lock Slot

    1

  • Regulations

    cTUVus

  • Dimensions (W x H x D)

    15.2 x 11.8 x 7.4" (365 x 300 x 188mm)

  • Weight

    6.2 lbs (2.85kg)

  • UPC Code

    766907018127

About ViewSonic LS560WH

The ViewSonic LS560WH short throw projector is ideal for both education and enterprise environments. Powered by lamp-free LED technology, this high-brightness projector can produce 3,000 ANSI lumens so that images and presentations can be easily viewed in environments with strong ambient light. Treat your audience to spellbinding presentations with vivid colors thanks to a wide color gamut. An eco-friendly, lamp-free design reduces maintenance and dramatically lowers your total cost of ownership, while a 0.49 short throw lens can create a 100" screen from just 3.6 ft. away. Enjoy convenient features like instant power on/off, image correction, flexible setup and so much more. This projector comes equipped with comprehensive LAN control for compatibility with Crestron, AMX, Extron, PJ Link, ATEN and ViewSonic vController systems.

Advanced LED Light Source
This projector uses the latest solid-state LED technology that is both mercury-free and lamp-free, offering a greener, filter-free projector solution. The LED light source provides over 60,000 hours of usage while consuming less than half the power of a typical LCD TV, thereby lowering your total cost of ownership.

Breathtaking Brightness in any Environment
Packed with 3,000 lumens of brightness, this projector produces bright images in any environment - with excellent performance in rooms with ambient light.

Lowers the Total Cost of Ownership
Designed for up to 30,000 hours of usage, this long-lasting, energy-efficient projector not only reduces your energy bills but also minimizes the need for frequent maintenance.

Large Images In Small Spaces
A short throw lens enables large images to be projected from short distances in small rooms. In addition, any blinding lights in front of the presenter, distracting shadows on the projected image, or glaring hotspots on the screen, are all eliminated because the projector's light source is closer to the projection surface.

Golf All Year Round
Enjoy the thrill of teeing off on world-famous courses without leaving home. From the iconic fairways of Pebble Beach to the challenging links of St. Andrews, our projectors deliver stunning visuals that transport you to the heart of the action.

Instant Power On for Instant Entertainment
Tired of staring at a blank screen while waiting for the display to power on? We eliminated the typically slow projector start time-this projector can be turned on in an instant just like a TV.

360-Degree Orientation
The projector can be installed in nearly any position, at any angle from floor to ceiling, making any surface a projection surface. Ideal for retail environments, the projector can be pointed straight down at the floor for creative marketing that leads your customers directly to your products.

Reliable 24/7 Operation
Featuring a long lifespan, this professional-grade projector is designed for reliable, continuous 24/7 use.

Sealed Optical Engine
An IP5X sealed optical engine prevents dust and moisture from entering the projector, ensuring impeccable image quality and a long, maintenance-free lifespan.

Horizontal and Vertical Keystone Correction
Horizontal and vertical keystone correction and a corner adjustment feature eliminate crooked and distorted images for a perfectly proportioned picture every time.

ViewSonic LS560WH Features

  • Bright 3000 Lumens WXGA LED projector with 0.49 short throw lens and advanced visual features
  • Latest LED technology provides an extended lifespan of up to 30,000 hours
  • 1.1x optical zoom, 4 corner adjustment, 40-degree H/V keystone and 360 degree projection
  • This projector can be configured to automatically turn on and off
  • Schedule, and manage the projector remotely with Crestron, AMX, Extron, PJ Link, ATEN, and ViewSonic's vController
  • Supports most media players, PCs, Macs, and mobile devices with inputs such as HDMI, USB, Ethernet LAN

Warranty Information

This product has a limited warranty of 36 months.

Key Features

  • Experience vibrant visuals with 3,000 LED Lumens, perfect for well-lit rooms and clear presentations.
  • Enjoy a long-lasting LED lamp life of up to 30,000 hours, reducing maintenance and replacement costs.
  • The WXGA resolution (1280x800) delivers sharp images, ideal for detailed charts and graphs in meetings.
  • Short throw lens projects a large image from a short distance, great for small offices and classrooms.
  • Connect easily with HDMI, USB, and LAN ports, ensuring compatibility with various devices and networks.
  • Benefit from excellent image quality with a 3,000,000:1 contrast ratio for deeper blacks and vivid colors.

What's in the box:

  • Viewsonic LS560WH WXGA Short Throw LED Projector
  • Power Cable
  • Remote Control
  • Quick Start Guide
  • Viewsonic 3 Year Limited Warranty
