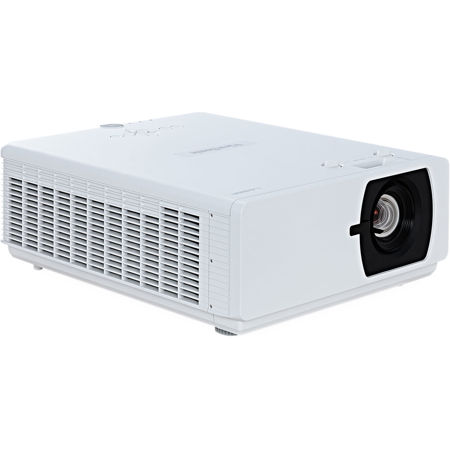

ViewSonic LS800WU DLP Laser WUXGA Projector, 1920x1200, 5500 Lumens

SKU: VSLS800WU

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

ViewSonic LS800WU Specifications

Display

Display

Jump to...
  • Type

    DLP Laser

  • Resolution Type

    WUXGA

  • Resolution

    1920 x 1200

  • Brightness

    5,500 ANSI Lumens

  • Display Size

    30 - 300" (0.76 - 7.62m)

  • Throw Distance

    4.1 - 41' (1.3 - 12.5m)

  • Throw Ratio

    1.2-1.9

  • Keystone

    Vertical (+/- 25 Degree) / Horizontal (+/- 30 Degree)

  • Lens

    1.65x optical zoom

  • Light Source

    Laser bank x 4 Watt

  • Light Source Life

    Normal: 20000 Hours
    Dynamic Eco-Mode: 30000 Hours

  • Color Depth

    1.07B Color (R/G/B 10bit)

  • Dynamic Contrast Ratio

    100000:1

  • Aspect Ratio

    16:10

  • Lens Shift

    Horizontal (-2.5% +2.5%) / Vertical (-2.4% +9.2%)

  • Operation Rating

    24/7

Video Signal

Jump to...
  • Frequency

    Horizontal: 15K-102KHz
    Vertical: 23-120Hz

Compatibility

Jump to...
  • PC Resolution

    PC
    Max: 1920 x 1200
    Min: 640 x 480

    Mac
    Max: 1920 x 1200
    Min: 640 x 480

Connector

Jump to...
  • USB 2.0 Type A

    1

  • Ethernet LAN (RJ45)

    1

  • 3.5mm Audio

    Out: 1
    In: 1

  • Control (RS232)

    1

  • HDMI IN

    3

  • VGA

    In: 1
    Out: 1

  • Composite RCA Video IN

    1

  • Mini USB

    1

  • RCA Audio

    IN (L/R): 1

  • RCA Audio

    Out: 1

  • 3D VESA

    1

  • HDBT

    1

  • Internal Speakers

    5W (x2)

  • Voltage

    100-240V+/- 10%, 50/60Hz AC

  • Consumption

    430W (Typical)

  • Stand-By

    <0.5W

Controls

Jump to...
  • Physical Controls

    Power, keystone/arrow keys, left/blank, menu/exit, right/panel key lock, mode/enter, auto, source

  • On Screen Display

    Display, Image, Power Management, Basic, Advanced, System, Information

Operating Conditions

Jump to...
  • Temperature

    32-104 Degree F (0 - 40 Degree C)

  • Humidity (Non-Condensing)

    0-90%

  • IP Code

    IP6X

Additional Hardware

Jump to...
  • Kensington Lock Slot

    1

General

Jump to...
  • AV Control

    AMX Certified, ATEN Certified, Crestron Certified

  • Regulations

    FCC, UL/CUL, ROHS

  • Dimensions

    14.2 x 6.3 x 17.3" (360 x 161 x 440mm)

  • Weight

    24.3 lb (11kg)

  • UPC Code

    766907932218

About ViewSonic LS800WU

Bright and versatile for any professional installation, the ViewSonic LS800WU WUXGA laser projector delivers everything you need for big screens in big venues. Delivering 5,500 lumens of advanced high brightness, 100,000:1 contrast ratio, and up to 30,000 hours (Light source life may vary based on actual usage and other factors) of light source life, this projector is ideal for auditoriums, lecture halls, large boardrooms, houses of worship, and more.

Thanks to SuperColor technology, content is brought to life with captivating color, crisp graphics, and stunning videos no matter the environment. This top-notch performer is also easy to deploy and manage with its wide 1.65x optical zoom adjustment, vertical/horizontal keystone, 4 corner adjustment, and a vertical/horizontal lens shift feature that provide extreme flexibility in even the most challenging installations.

Thanks to the built-in HDBT receiver, the projector is capable of receiving uncompressed HD video and audio from over 200 feet away via network cable. Moreover, 360-degree tilt angle projection, portrait mode, and 24/7 operation allow for extreme mounting flexibility. The ViewSonic LS800WU is the ideal WUXGA laser projector for professional installations, large venues, and business and education environments.

Bright Images in Large Spaces
Packed with 5,000 lumens and a high contrast ratio, this projector is guaranteed to produce bright images in large spaces with high ambient light including large boardrooms, conference halls, and auditoriums.

Ultra-High Contrast Ratio
A 100,000:1 ultra-high contrast ratio enhances even the finest shades of gray a key characteristic for delivering excellent clarity and detail for razor-sharp images.

Long-Lasting Laser Phosphor Light Source
Designed with a laser phosphor light source lasting up to 30,000 hours, this projector delivers long-term, virtually maintenance-free usage for a lower overall total cost of ownership.

One-Wire HDBT Input
With an integrated HDBT input, this projector can receive uncompressed HD video and audio over long distances via a single network cable.

360-Degree Orientation
A robust mechanical construction allows the projector to be installed in nearly any position, at any angle from floor to ceiling. You can mount the projector pointing straight down at the floor of a museum exhibit or art gallery installation, or mount the projector upside-down at a 45-degree angle if need be.

Portrait Mode Projection
This projector can be placed in a vertical position and project images in portrait orientation.

Software Updates Via Mini USB
Software and firmware updates for this projector can be easily accessed online.

Extreme Mounting Flexibility
A wider optical zoom provides more mounting flexibility over a standard 1.2x optical zoom. More flexible mounting options translate to less installation hassle.

Horizontal And Vertical Keystone Correction
Horizontal and vertical keystone correction and a corner adjustment feature eliminate crooked and distorted images for a perfectly proportioned picture every time.

Horizontal and Vertical Lens Shift
A horizontal/vertical lens shift feature offers up and down, as well as left and right adjustments of the projection lens. This feature allows for flexible projector placement in challenging installations.

Network Monitoring & Control
IT admin can monitor, schedule, and manage the projector remotely, as well as receive projector status alerts, with the integrated Crestron e-Control system and RoomView Express management software. Because this projector is Crestron and AMX certified, IT admin can control and monitor the projector for any size campus or enterprise.

Reduced Input Latency
This projector delivers smooth images without delay. Its ultra-low 16ms input latency provides faster frame-by-frame action.

ViewSonic LS800WU Features

  • 5000 Lumen Brightness
  • Ultra-high Contrast Ratio
  • Long-lasting Laser Phosphor Light Source
  • One-wire HDBT Input
  • 360-degree Orientation

Key Features

  • 5000 Lumen Brightness
  • Ultra-high Contrast Ratio
  • Long-lasting Laser Phosphor Light Source
  • One-wire HDBT Input
  • 360-degree Orientation

What's in the box:

  • LS800WU DLP Laser WUXGA Projector
  • Power Cable
  • VGA Cable
  • Remote Control
  • Quick Start Guide
  • ViewSonic 5 Year Limited Warranty on Projector & 1 Year Limited Warranty on Lamp
