ViewSonic LS810 WXGA Ultra-Short Throw DLP Projector, 1280x800, 5200 Lumens

SKU: VSLS810

This item is no longer available.

Recommended Alternatives

Overview
Compare
Accessories
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

ViewSonic LS810 Specifications

  • Display Type

    Laser DLP

  • Resolution Type

    WXGA

  • Resolution

    1280 x 800

  • Brightness (ANSI Lumens)

    5,200

  • Throw Distance

    1.21 - 2.62' (0.37 - 0.80m)

  • Throw Ratio

    0.23

  • Display Size

    70 - 150" (177.80 - 381.00cm) (diagonal)

  • Keystone

    Vertical (+/- 30 deg.) / Horizontal (+/- 30 deg.)

  • Lens

    Digital optical focus

  • Light Source

    390 W

  • Light Source Life

    Normal: 15000 Hours
    Dynamic Eco-Mode: 20000 hours

  • Color Depth

    30 bits, 1.07B Color (10+10+10)

  • Dynamic Contrast Ratio

    100000:1

  • Aspect Ratio

    16:10

  • Frequency Horizontal

    15-100KHz

  • Frequency Vertical

    24-120Hz

  • PC Resolution (max)

    Up to 1920x1080

  • Mac Resolution (max)

    Up to 1920x1080 (may require MAC adapter)

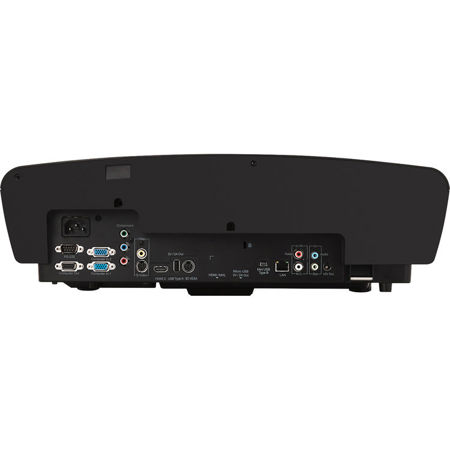

  • Connector

    1x USB 2.0 Type A
    1x USB Type A (5V 2A)
    1x Ethernet LAN (RJ45)
    1x 3.5mm 12V Trigger
    1x 3.5mm Audio Out
    1x 3.5mm Audio In
    1x Control (RS-232)
    1x HDMI 1.4
    1x HDMI MHL
    2x VGA In
    1x VGA Out
    1x Composite RCA Video In
    1x Component RCA
    1x S-Video In
    1x Mini USB
    1x Micro USB
    2x RCA Audio In (L/R)

  • Internal Speakers

    2x 8W

  • Audio Description

    Dual silk tweeters + full-range drivers, ported chambers, Waves MaxxAudio(r) DSP

  • Voltage

    AC 100-240V (universal), 50-60Hz

  • Consumption (max)

    450W

  • Stand-by

    <0.5W

  • Physical Controls

    Power, keystone/arrow keys, left/blank, menu/exit, right/panel key lock, mode/enter, auto, source

  • On Screen Display

    Display, Image, Power Management, Basic, Advanced, System, Information

  • Operating Temperature

    32 to 104 deg. F (0 to 40 deg. C)

  • Humidity (non-condensing)

    0-90%

  • Regulations

    Mexico Energy test/Registration, EAC, TUV-S Mark (Argentina), India BIS, FCC, CE, EMC, CB, CCC, RoHS, REACH, SVHC, WEEE, ErP, Mexico NOM, cTUVus, PSB, RCM, CECP

  • Dimensions (WxHxD)

    20.0 x 15.4 x 6.5" (508.00 x 391.16 x 165.10mm)

  • Weight

    22.05 lbs (10.00kg)

  • UPC Code

    766907847413

1 Accessories for ViewSonic LS810 WXGA Ultra-Short Throw DLP Projector, 1280x800, 5200 Lumens

  • All Accessories (1)
  • Laptop Stand (1)

About ViewSonic LS810

Featuring 1280x800 WXGA resolution and 5,200 lumens of brightness, the ViewSonic LS810 Laser Projector is the ideal solution for modern business and education environments. Designed with a laser phosphor light source lasting up to 20,000 hours, this projector delivers long-term, virtually maintenance-free usage for any boardroom or classroom. With its 0.23 ultra-short throw ratio, HV keystoning and 4 corner adjustments, the LS810 makes installation a hassle-free experience. What's more, the ultra-short throw ratio allows you to place the projector just inches away from a wall or screen to give you a huge image for less cost than a comparably sized display. The LS810 also features a hidden Port All compartment which accommodates additional accessories such as a wireless streaming device or PC stick. Powered by SuperColor technology for true-to-life images and SonicExpert technology for incredibly clear sound, the LS810 delivers an immersive audiovisual performance.

• Long-lasting laser phosphor light source
• 5,200 lumen brightness
• Large images in small spaces
• Ultra-high contrast ratio
• Secure MHL/HDMI port

Long-lasting Laser Phosphor Light Source
Designed with a laser phosphor light source lasting up to 20,000 hours, this projector delivers long-term, virtually maintenance-free usage for a lower overall total cost of ownership.

5,200 Lumen Brightness
Packed with 5,200 lumens and a high contrast ratio, this projector is guaranteed to produce bright images in large spaces with high ambient light including large boardrooms, classrooms and public spaces.

Large Images in Small Spaces
A short throw lens enables large images to be projected from short distances in small rooms.

Ultra-high Contrast Ratio
A 100,000:1 ultra-high contrast ratio enhances even the finest shades of gray - a key characteristic for delivering excellent clarity and detail for razor-sharp images.

Port All: Discreet Wireless Streaming
This projector includes ViewSonic's exclusive Port All feature-a hidden compartment with an integrated and secure MHL/HDMI port that lets you discreetly stream multimedia content from an optional wireless dongle or lets you connect to other devices via an HDMI cable. What's more, an integrated Micro USB cable lets you quickly and easily power Micro USB-enabled devices.

Optional Ambient Light Screen
To further reduce any effects of high ambient light and to take full advantage of the incredible images projected, we recommend pairing our laser projectors with our optional black diffuser screen. This black screen enhances contrast and helps to eliminate washed out images in ambient light.

SuperColor: Amazing Color Accuracy
ViewSonic's proprietary SuperColor Technology features an exclusive 6-segment color wheel and dynamic lamp control capabilities, providing a wide color range and stunningly beautiful images.

SonicExpert Technology
This projector is designed with ViewSonic's proprietary SonicExpert technology that incorporates an enlarged speaker chamber and a more powerful amplifier to deliver a full 20Hz - 20Khz sound range. Dual integrated speakers captivate your audience with immersive sound.

Industry-leading Warranty
ViewSonic offers one of the industry's best overall projector warranties with 3-year limited parts and labor, 1-year lamp and first year free Express Exchange service (One year Express Exchange Service requires product registration).

What's in the box:

  • ViewSonic LS810 WXGA Ultra-Short Throw DLP Projector
  • Power Cable
  • VGA Cable
  • HDMI Cable
  • Remote Control with Batteries
  • Quick Start Guide
  • Wizard CD (with User Guide)
  • ViewSonic 3 Year Parts and Labor Limited Warranty on Projector (1st Year Free Express Exchange Service Upon Registration)
  • ViewSonic 1 Year Limited Warranty on Lamp
