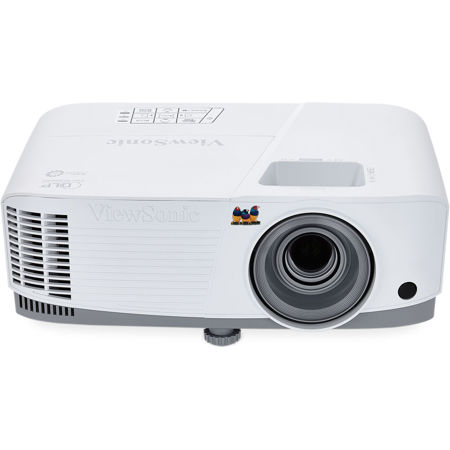

ViewSonic PG603W WXGA DLP Projector, 1280x800, 3600 Lumens

SKU: VSPG603W

This item is no longer available.

Overview
Compare
Accessories
Specs
Protection
Q&A

Questions & Answers

FAQ

What is the resolution of the ViewSonic PG603W WXGA DLP Projector?

The ViewSonic PG603W WXGA DLP Projector has a high resolution of 1280x800 pixels.

What features does the ViewSonic PG603W WXGA DLP Projector have for image and sound quality?

The projector boasts exclusive SuperColor technology for a wide color gamut and beautiful image production. It also features SonicMode sound enhancement technology that powers a 10W speaker for clear, audible sound.

What energy-saving features does the ViewSonic PG603W WXGA DLP Projector have?

The projector has an energy-saving SuperEco mode that reduces power consumption and extends the lamp life by up to 15,000 hours.

Does the ViewSonic PG603W WXGA DLP Projector support wireless presentations?

Yes, the projector has an integrated USB A reader port and optional WiFi capabilities for flexible content streaming and wireless presentations.

Can the ViewSonic PG603W WXGA DLP Projector be controlled remotely?

Yes, the projector is equipped with a Crestron LAN controller that allows IT administrators to remotely control and manage multiple projectors from their workstations.

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

ViewSonic PG603W Specifications

Display

Display

Jump to...
  • Type

    DLP Lamp

  • Resolution Type

    WXGA

  • Resolution

    1280 x 800

  • Brightness

    3600 ANSI Lumens

  • Display Size

    2.5 - 25' (0.76 - 7.62m)

  • Throw Distance

    3.3 - 36' (1 - 11m)

  • Throw Ratio

    1.55-1.70

  • Keystone

    Vertical (+/- 30 Degree)
    Horizontal (+/- 20 Degree)

  • Lens

    1.1x optical zoom

  • Light Source

    200 W

  • Light Source Life

    Normal: 5000 Hours
    Dynamic Eco-Mode: 15000 Hours

  • Color Depth

    1.07B Color (R/G/B 10bit)

  • Dynamic Contrast Ratio

    22000:1

  • Aspect Ratio

    16:10

Video Signal

Jump to...
  • Frequency

    Horizontal: 15K-102KHz
    Vertical: 23-120Hz

Compatibility

Jump to...
  • Resolution

    PC
    Max: 1920 x 1080
    Min: 640 x 480

    Mac
    Max:1920 x 1080
    Min: 640 x 480

Connector

Jump to...
  • USB 2.0 Type A

    2

  • USB Reader

    1

  • Ethernet LAN (RJ45)

    1

  • 3.5mm Audio

    Out: 1
    In: 1

  • Control (RS232)

    1

  • HDMI In

    1

  • VGA

    In: 1
    Out: 1

  • Composite Rca Video In

    1

  • Mini USB

    1

  • Wifi

    PJ-WPD-200 (Optional)

  • Internal Speakers

    10W (x1)

  • Voltage

    100-240V+/- 10%, 50/60Hz AC

  • Consumption

    270W (Typical)

  • Stand-By

    <0.5W

Controls

Jump to...
  • Physical Controls

    Power, keystone/arrow keys, left/blank, menu/exit, right/panel key lock, mode/enter, auto, source

  • On Screen Display

    Display, Image, Power Management, Basic, Advanced, System, Information (See user guide for full OSD functionality)

Operating Conditions

Jump to...
  • Temperature

    32 to 104 Degree F (0 to 40 Degree C)

  • Humidity (Non-Condensing)

    0-90%

Additional Hardware

Jump to...
  • Kensington Lock Slot

    1

General

Jump to...
  • AV Control

    AMX Certified, ATEN Certified, Crestron Certified, Extron Certified, PJ Link Certified

  • Regulations

    FCC, cTUVus, NOM

  • Dimensions

    11.6 x 8.6 x 4.3" (294 x 218 x 110mm)

  • Weight

    5.1 lb (2.3kg)

  • UPC Code

    766907916010

28 Accessories for ViewSonic PG603W WXGA DLP Projector, 1280x800, 3600 Lumens

  • All Accessories (28)
  • Brackets & Mounts (2)
  • Subwoofers (1)
  • Amplifiers (1)
  • Speakers (9)
  • Stands (1)
  • Screens (6)
  • Bags & Cases (1)
  • Cables & Adapters (5)
  • Cameras (2)

About ViewSonic PG603W

You'll experience high-quality, bright, and reliable projection with the ViewSonic PG603W WXGA DLP Projector. Boasting a high resolution of 1280x800 and a luminous brightness of 3600 lumens, this versatile projector is designed to deliver stunningly clear and vivid images in any environment, from well-lit business meetings to dimly lit educational settings.

The projector's exclusive SuperColor technology offers a wide color gamut, ensuring beautiful image production in nearly any setting. Coupled with SonicMode sound enhancement technology, it powers a 10W speaker for incredibly clear and audible sound, enhancing your presentation or viewing experience.

The PG603W WXGA DLP Projector is not just about performance, it also offers convenience. Its sleek white chassis houses an intuitive, user-friendly design, making it easy to operate. The projector also features an energy-saving SuperEco mode that reduces power consumption and extends the lamp life by up to an impressive 15,000 hours, making it a durable choice for regular use.

For flexible content streaming and wireless presentation options, this projector is equipped with an integrated USB A reader port and optional WiFi capabilities (PJ-WPD-200 wireless dongle sold separately). The Crestron LAN controller allows IT administrators to remotely control and manage multiple projectors from their workstations, making it an ideal choice for large campuses or enterprises.

With horizontal and vertical keystone correction, 4 corner adjustments, and extensive connectivity options, this projector ensures flexible and quick set-ups. It also supports dual 3D Blu-Ray ready HDMI inputs, allowing you to connect to any HDMI-enabled device and display 3D images directly from 3D Blu-ray players.

The ViewSonic PG603W WXGA DLP Projector is more than just a projector; it's a versatile tool for delivering high-quality, bright, and reliable presentations in any setting.

ViewSonic PG603W Features

  • SuperColor: Amazing Color Accuracy
  • 3600 Lumen Brightness
  • Network Capable
  • USB Reader and USB Display
  • WiFi and LAN Display

Key Features

  • High-resolution WXGA DLP Projector with 1280x800 pixels for detailed and clear images
  • Bright 3600 lumens output, suitable for well-lit rooms or low light conditions
  • Exclusive SuperColor technology for a wide color gamut and beautiful image production
  • SonicMode sound enhancement powers a 10W speaker for clear, audible sound
  • Energy-saving SuperEco feature reduces power consumption and extends lamp life up to 15,000 hours
  • Remote control capability with Crestron LAN controller for easy management in large settings

What's in the box:

  • PG603W WXGA DLP Projector
  • Power Cable
  • VGA Cable
  • Remote Control
  • Quick Start Guide
  • ViewSonic 3 Year Limited Warranty on Projector & 1 Year Limited Warranty on Lamp
