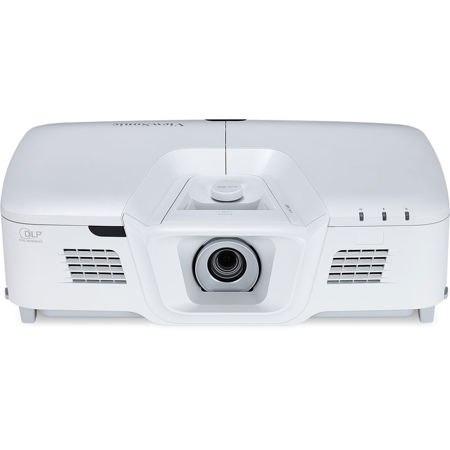

ViewSonic PG800W WXGA DLP Projector, 1280x800, 5000 Lumens

SKU: VSPG800W

This item is no longer available.

Overview
Compare
Accessories
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

ViewSonic PG800W Specifications

Display

Display

Jump to...
  • Type

    DLP Lamp

  • Resolution Type

    WXGA

  • Resolution

    1280 x 800

  • Brightness

    5,000 ANSI Lumens

  • Display Size

    30 - 300" (0.76 - 7.62m)

  • Throw Distance

    2.6 - 33.3' (0.78 - 10.14m)

  • Throw Ratio

    1.2 - 1.6

  • Keystone

    Vertical (+/- 40 Degree )

  • Lens

    1.3x Manual optical zoom / manual optical focus

  • Light Source

    370 W

  • Light Source Life

    Normal 2000 Hours
    Dynamic Eco-Mode: 2500 Hours

  • Color Depth

    1.07B Color (R/G/B 10bit)

  • Dynamic Contrast Ratio

    5000:1

  • Aspect Ratio

    16:10

Video Signal

Jump to...
  • Frequency

    Horizontal: 15K-102KHz
    Vertical: 23-120Hz

Compatibility

Jump to...
  • Resolution (Max)

    PC: 1920 x 1200
    Mac: 1920 x 1200

Connector

Jump to...
  • USB 2.0

    Type A: 1
    Type B: 1

  • Ethernet LAN (RJ45)

    1

  • 3.5mm 12v Trigger

    1

  • 3.5mm Audio

    Out: 1
    In: 2

  • Control (RS232)

    1

  • HDMI In

    2

  • VGA

    In: 2
    Out: 1

  • Composite RCA Video In

    1

  • S-Video In

    1

  • Mini USB

    1

  • RCA Audio In (L/R)

    1

  • 3D VESA

    1

  • IR Out

    1

  • Internal Speakers

    10W (x2)

  • Voltage

    100-240V+/- 10%, 50/60Hz AC

  • Consumption

    574W (Max)

  • Stand-By

    <0.5W

Controls

Jump to...
  • Physical Controls

    Power, keystone/arrow keys, left/blank, menu/exit, right/panel key lock, mode/enter, auto, source

  • On Screen Display

    Display, Image, Power Management, Basic, Advanced, System, Information

Operating Conditions

Jump to...
  • Temperature

    32-104 Degree F (0 - 40 Degree C)

  • Humidity (Non-Condensing)

    0-90%

Additional Hardware

Jump to...
  • Kensington Lock Slot

    1

General

Jump to...
  • AV Control

    AMX Certified, ATEN Certified, Crestron Certified, Extron Certified, PJ Link Certified

  • Regulations

    FCC, ROHS, cTUVus

  • Dimensions

    18.5 x 12.4 x 5.5" (470 x 316 x 140mm)

  • Weight

    13.7 lb (6.2kg)

26 Accessories for ViewSonic PG800W WXGA DLP Projector, 1280x800, 5000 Lumens

  • All Accessories (26)
  • Brackets & Mounts (2)
  • Subwoofers (1)
  • Amplifiers (1)
  • Speakers (9)
  • Screens (4)
  • Bags & Cases (2)
  • HDMI Cables (1)
  • Cables & Adapters (4)
  • Cameras (2)

About ViewSonic PG800W

Delivering 1280 x 800 resolution and 5000 lumens of brightness, the ViewSonic PG800W is the ideal WXGA projector for professional installations, large venues, and business and education environments. With its 1.3x optical zoom, centered lens, vertical lens shift, and vertical keystoning, the PG800W provides extreme flexibility even in the most challenging installations. The PG800W boasts a sleek top cover design for quick lamp and accessory access, while an intuitive PortAll compartment accommodates additional accessories such as an HDBaseT receiver, wireless streaming device, or PC stick. A 4-in-1 power button serves as a central point for LED notifications. Moreover, two HDMI ports and additional audio and video ports allow for extensive connectivity to handle multiple devices without the need to switch cables. Powered by SuperColor technology for beautiful image reproduction, and SonicExpert technology for incredibly clear sound, the PG800W delivers a professional audiovisual performance.

Bright Images in Large Spaces
Packed with 5,000 lumens and a high contrast ratio, this projector is guaranteed to produce bright images in large spaces with high ambient light including large boardrooms, conference halls, and auditoriums.

Vertical Lens Shift with Centered Lens
A vertical lens shift feature offers up and down adjustments of the projection lens for flexible placement in challenging installations. What's more, a centered lens design makes this projector ideal for replacing existing centered lens installations - making it unnecessary to move or reinstall existing ceiling mounts or projection screens.

PortAll: Discreet Wireless Streaming
This projector includes ViewSonic's exclusive PortAll feature-a hidden compartment with an integrated and secure MHL/HDMI port that lets you discreetly stream multimedia content from an optional wireless dongle, or lets you connect to other devices via an HDMI cable. What's more, an optional HDBT adapter lets you discreetly stream multimedia content from set-top boxes, Blu-ray players, AV receivers and more via an HDBT receiver.

Network Monitoring & Control
IT admin can monitor, schedule, and manage the projector remotely, as well as receive projector status alerts, with the integrated Crestron e-Control system and RoomView Express management software. Because this projector is Crestron and AMX certified, IT admin can control and monitor the projector for any size campus or enterprise.

SuperColor: Amazing Color Accuracy
ViewSonic's proprietary SuperColor Technology features an exclusive 6-segment color wheel and dynamic lamp control capabilities, providing a wide color range and stunningly beautiful images.

Convenient Auto Power On/Off
This projector can be configured to automatically turn on for quick and easy startup whenever an active video input is detected. Conversely, when no signal is present, the projector will automatically power off after a user-defined amount of time.

SonicExpert Technology
This projector is designed with ViewSonic's proprietary SonicExpert technology that incorporates an enlarged speaker chamber and a more powerful amplifier to deliver a full 20Hz - 20Khz sound range. Dual integrated speakers captivate your audience with immersive sound.

4-in-1 Power Button With IR Pass-Through
A centrally located, easy-to-use power button not only turns the projector on and off, but also functions as an IR receiver and control for remote devices. In addition, intuitive LED lights on the power button indicate whether any dongles are powered on within the PortAll compartment.

Extreme Mounting Flexibility
A wider optical zoom provides more mounting flexibility over a standard 1.2x optical zoom. More flexible mounting options translate to less installation hassle.

ViewSonic PG800W Features

  • 5,000 Lumen Brightness
  • Vertical Lens Shift with Centered Lens
  • PortAll: Discreet Wireless Streaming
  • Network Monitoring & Control
  • SuperColor: Amazing Color Accuracy

Key Features

  • 5,000 Lumen Brightness
  • Vertical Lens Shift with Centered Lens
  • PortAll: Discreet Wireless Streaming
  • Network Monitoring & Control
  • SuperColor: Amazing Color Accuracy

What's in the box:

  • PG800W WXGA DLP Projector
  • Power Cable
  • VGA Cable
  • Remote Control with AAA Batteries
  • Quick Start Guide
  • ViewSonic 3 Year Limited Warranty on Projector & 1 Year Limited Warranty on Lamp
