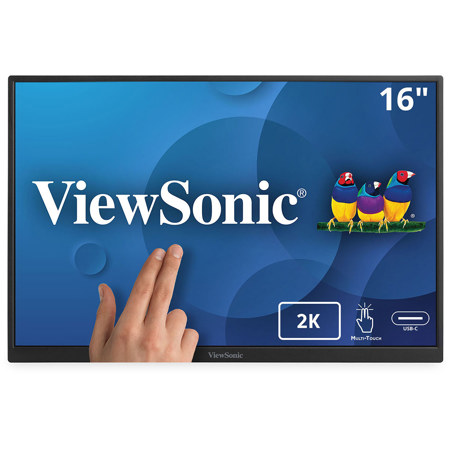

ViewSonic TD1656-2K 16" 16:10 WQXGA Touchscreen Portable USB-C IPS LED Monitor

SKU: VSTD16562K MFR: TD1656-2K
Earn VIP Reward Points

Key Features

  • Immerse yourself in stunning detail with the 16" WQXGA (2560x1600) portable monitor display.
  • Experience vibrant colors and wide viewing angles on this IPS panel portable monitor.
  • The 10-point touch screen enhances productivity and collaboration on this portable monitor.
  • Connect easily with USB-C for video, audio, and power delivery on this portable monitor.
  • Enjoy smooth visuals with a 60Hz refresh rate for everyday tasks on this portable monitor.
  • Adjust the tilt and height for ergonomic comfort with the smart cover of this portable monitor.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$79.99

3 Year

$109.99

4 Year

$129.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

ViewSonic TD1656-2K Specifications

Display

Display

Jump to...
  • Screen Size

    16" (40.64cm)

  • Viewable Area

    16" (40.64cm)

  • Colors

    16.7M

  • Color Space Support

    8 bit true

  • Viewing Angles

    178 Degree horizontal, 178 Degree vertical

  • Backlight Life

    15,000 Hours

  • Display Resolution

    WQXGA (2560x1600)

  • Response Time (Typical GTG)

    11.6ms

  • Dynamic Contrast Ratio

    50,000,000:1

  • Aspect Ratio

    16:10

  • Panel Surface

    Anti-Glare type, Hardness >=6H, Haze 25%

  • Light Source

    LED

  • Brightness

    330 cd/sq. m

  • Static Contrast Ratio

    1,500:1

  • Panel Type

    IPS

  • Refresh Rate

    60Hz

Compatibility

Jump to...
  • PC Resolution (max)

    2560 x 1600

  • Mac Resolution (max)

    2560 x 1600

Connector

Jump to...
  • USB Type C

    65W x2

  • Touch Points

    10-Point Touch

  • Touch Technology

    Projective Capacitive

  • Internal Speakers

    2W (x2)

  • Consumption (typical)

    8.8W

  • Consumption (max)

    11.8W

  • Voltage

    DC 5V/9V/12V/15V/20V

  • Stand-by

    0.5W

  • Power Supply

    External

Additional Hardware

Jump to...
  • Cable Organization

    No

  • Headphone Hook

    No

Controls

Jump to...
  • Physical Controls

    Up; Down, Power

  • On Screen Display

    Contrast, Brightness, Volume, Audio Mode, Information, Memory Recall

Operating Condition

Jump to...
  • Temperature

    32-104 Degree F (0 - 40 Degree C)

  • Humidity (non-condensing)

    20-90%

Video Signal

Jump to...
  • Frequency Horizontal

    15 - 100 KHz

  • Frequency Vertical

    50 - 75 Hz

Ergonomics

Jump to...
  • Height Adjust

    50mm (with smart cover)

  • Pivot (Right/Left)

    0 Degree / 90 Degree (with smart cover)

  • Tilt (Forward/Back)

    20 Degree - 70 Degree (with smart cover)

General

Jump to...
  • Regulations

    cTUVus, FCC-B, ICES003, Energy Star, EPEAT, CEC, NOM, Mexico Energy

  • Dimensions (W x H x D)

    With Stand: 14.04 x 9.25 x 0.39" (357 x 235 x 9.9mm)
    Without Stand: 14.04 x 9.25 x 0.39" (357 x 235 x 9.9mm)

  • Weight

    With Stand: 2.8 lbs (1.3kg)
    Without Stand: 1.8 lbs (800g)

  • UPC Code

    766907026221

About ViewSonic TD1656-2K

TD1656-2K is a portable 16" 16:10 monitor designed for optimal productivity on the go. Weighing less than 2lbs and under 0.5" thick, with an intuitive smart cover to both provide versatile viewing options and protect the screen in transit, this portable is optimized to take on the road. 10-point capacitive touch allows for intuitive screen control while 2K resolution offers vivid details for crispy and clear imagery. The two way power USB-C connectors provide a one-cable solution for multimedia transfer and 65W power charging, either receiving power from a laptop or power bank, or being able to pass through power to the connected device, when the portable is connected to a power source.

Advanced Interactivity
An advanced capacitive touchscreen provides a smooth and responsive experience with every tap, pinch, and swipe, while also delivering awesome front-of-screen performance and incredible images.

Stunning Resolution
Displaying more than 4 million pixels with a high pixel density, this WQXGA 2560 x 1600 monitor delivers the ultimate in image detail and clarity for stunning, lifelike images.

Portable Productivity
Weighing under 2lbs. and measuring less than 0.5" thick, this compact monitor is ideal for on-the-go use so you can work more efficiently from nearly any location.

Automatic Rotation
A built-in G-Sensor knows the monitor's orientation (whether landscape or portrait), and automatically rotates and maximizes the image on screen. This allows you to easily move from portrait to landscape and back, without having to make any adjustments to your display settings.

Versatile Smart Cover
An included smart cover provides on-the-go screen protection. The smart cover also transforms into an adjustable stand for optimal ergonomic comfort and flexible positioning whether in office or on the road.

Extra Screen Space
The 16:10 aspect ratio offers multitaskers extra vertical space to work more efficiently. This design also complements the latest 16:10 laptops for a more streamlined viewing experience.

Dual Integrated Speakers
Designed with dual integrated speakers, this monitor combines incredible screen performance with stereo sound for an immersive multimedia experience.

ViewSonic TD1656-2K Features

  • 16" QHD 16:10 (2560x1600p) IPS portable monitor with 60Hz refresh rate and smart cover
  • This 10-point touch screen monitor makes swiping, writing, and annotating smooth and natural
  • With a weight of 3 lbs and a thickness of 0.4 in, this portable monitor slips easily into backpacks and purses
  • USB-C connectivity for fast data, audio and video transfer, and 2 way powered 65W USB C charging.
  • Comes with a detachable magnetic screen cover and a built-in stand for orientation in both portrait and landscape modes
  • MacOS users can access touch and gesture controls on touch displays connected to their Apple devices using ViewSonic's vTouch driver. Not available for iPhone and iPad
  • The TD1656-2K supports laptops, PCs, and Apple/Mac operating systems with USB-C inputs

Warranty Information

This product has a limited warranty of 36 months.

Key Features

  • Immerse yourself in stunning detail with the 16" WQXGA (2560x1600) portable monitor display.
  • Experience vibrant colors and wide viewing angles on this IPS panel portable monitor.
  • The 10-point touch screen enhances productivity and collaboration on this portable monitor.
  • Connect easily with USB-C for video, audio, and power delivery on this portable monitor.
  • Enjoy smooth visuals with a 60Hz refresh rate for everyday tasks on this portable monitor.
  • Adjust the tilt and height for ergonomic comfort with the smart cover of this portable monitor.

What's in the box:

  • ViewSonic TD1656-2K 16" 16:10 WQXGA Touchscreen Portable USB-C IPS LED Monitor
  • USB-C Cable
  • Smart Cover
  • Passive Touch Stylus
  • Quick Start Guide
  • ViewSonic 3 Year Limited Warranty
