Voice Technologies VT100 Cardioid Microphone with Binder 5-pin Connector
See all Voice Technologies items

Voice Technologies VT100 Cardioid Microphone with Binder 5-pin Connector for Audio Ltd. TXPH (En2) Wireless Transmitters, 100Hz-15kHz Frequency, 1600 Ohms Impedance

SKU: VT0511
Be the first to review this item

This item is no longer available.

Recommended Alternatives

undefined undefined: Picture 1 regular
Voice Technologies VT800 Lightweight Headworn Cardioid Headset Microphone, Black
$469.00
undefined undefined: Picture 1 regular
Voice Technologies VT800 Headworn Headset Microphone with TA4-F Connector, Black
$499.00
undefined undefined: Picture 1 regular
Voice Technologies VT800 Headworn Headset Microphone with TA5-F Connector, Black
$499.00
undefined undefined: Picture 1 regular
Voice Technologies VT800 Cardioid Headworn Headset Mic with TA5-F Connector
$499.00
undefined undefined: Picture 1 regular
Voice Technologies VT100 Cardioid Lavalier Mic, TA5-F for Legacy UM & LM, Black
$389.00
See More Recommendations
Overview
Compare
Specs
Protection
Q&A

Questions & Answers

FAQ

What is the main feature of the VT100 Cardioid Microphone?

The VT100 Cardioid Microphone is designed with a cardioid characteristic that minimizes feedback and reduces background noise, ensuring clear and precise voice reproduction.

What is the advantage of the detachable microphone capsule unit?

The detachable microphone capsule unit offers flexibility and convenience during setup and use, allowing for easy detachment from the mounting base.

What does the rotatable clip on the VT100 Cardioid Microphone do?

The rotatable clip allows for precise positioning of the microphone, ensuring optimal sound capture.

Is the VT100 Cardioid Microphone suitable for use in noisy environments?

Yes, the VT100 Cardioid Microphone is designed for use in noisy environments or when the audio source is close to monitor speakers.

What is the frequency range and impedance of the VT100 Cardioid Microphone?

The VT100 Cardioid Microphone offers a high-performance frequency range of 100Hz-15kHz and an impedance of 1600 Ohms.

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Voice Technologies VT100 Specifications

  • Compatibility

    Audio Ltd. TXPH (En2) Wireless Transmitters

  • Element Type

    Subminiature Cardioid condenser

  • Polar Pattern

    Cardioid

  • Frequency Range

    100 Hz to 15 kHz

  • Sensitivity

    -44 dB +/- 3 dB (7.0 mV)

  • Noise Level

    31.5 dB SPL A-weighted

  • Maximum Input

    SPL: 130 dB

  • Impedance

    1600 Ω

  • Voltage

    Bias / +VDC: 1.3 V to 10 V (maximum)

  • Cable

    Length: 4.90' (1.49m)
    Diameter: 0.05" (0.12cm)

  • Wiring

    3-Wire Configuration:
    Red: +VDC
    Copper: Signal
    Green: Shield
    Resistor 12 k Ω between copper and red
    2-Wire Configuration:
    Green + Copper: Shield / NF
    Red: +VDC

  • Dimensions

    Microphone (Diameter x L): 0.20 x 0.82" (5.08 x 20.82mm)

  • Weight

    0.45oz (12.75g)

About Voice Technologies VT100

The Voice Technologies VT100 Cardioid Microphone with Binder 5-pin Connector is a professional lavalier microphone designed for clear, accurate voice reproduction. Thanks to the cardioid characteristic, the VT100 microphone produces nearly no feedback and reduces background noise. The small microphone capsule unit is detachable from the mounting base. Also, the rotatable clip allows exact positioning of the microphone. The microphone is designed for use in noisy environments or when the source is close to the monitor speakers. It is also suitable for public addressers and presenters.

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

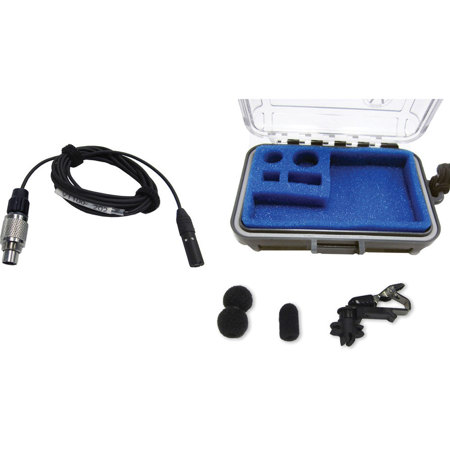

What's in the box:

  • Voice Technologies VT100 Cardioid Microphone with Binder 5-pin Connector
  • VTO Otter Box
  • AC100 Alligator Clip
  • WS100 Windscreen
  • WS100/B Special Foam Windscreen
  • Voice Technologies 1 Year Parts & Labor Limited Warranty
