Voice Technologies VT506 Omni Lavalier Mic with Binder 5-pin Connector, Black
See all Voice Technologies items

Voice Technologies VT506 Omni Lavalier Microphone with Binder 5-pin Connector for Audio Ltd. TXPH (En2) Wireless Transmitters, 40Hz-20kHz Frequency, Black

SKU: VT0520
Be the first to review this item

This item is no longer available.

Recommended Alternatives

Voice Technologies VT500: Picture 1 regular
Voice Technologies VT500 Lavalier Microphone with Lemo 3-pin, Black
$379.00
Voice Technologies VT500: Picture 1 regular
Voice Technologies VT500 Omni Lavalier Mic, Pigtail (Unterminated) Lead, Black
$309.00
Voice Technologies VT0011: Picture 1 regular
Voice Technologies VT500 Omni-Directional Lavalier Microphone, Black
$239.00
Voice Technologies VT500: Picture 1 regular
Voice Technologies VT500 Omni-Directional Lavalier Mic with TA5-F Connector
$339.00
See More Recommendations
Overview
Compare
Specs
Protection
Q&A

Questions & Answers

FAQ

What industries is the VT506 Omni Lavalier Microphone suitable for?

The VT506 Omni Lavalier Microphone is designed for professionals in the broadcast, theatre, and film industries.

What is the frequency range of the VT506 Omni Lavalier Microphone?

The VT506 Omni Lavalier Microphone offers a rising frequency response from 40Hz to 20kHz.

Can the VT506 Omni Lavalier Microphone be used under clothing?

Yes, the VT506 Omni Lavalier Microphone is designed for under-clothing use, ensuring clear audio in a variety of setups.

What kind of connector does the VT506 Omni Lavalier Microphone have?

The VT506 Omni Lavalier Microphone features a Binder 5-pin connector for seamless integration with Audio Ltd. TXPH (En2) wireless transmitters.

Does the VT506 Omni Lavalier Microphone come with a cable?

Yes, the VT506 Omni Lavalier Microphone comes with a flexible cable designed with enhanced isolation to minimize rubbing noise.

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Voice Technologies VT506 Specifications

  • Element Type

    Electret condenser

  • Polar Pattern

    Omni-Directional

  • Frequency Range

    40 Hz to 20 kHz

  • Sensitivity

    -60 dB (re 1 V/microbar)

  • Noise Level

    26 dB A-weighted

  • Maximum Input

    SPL: 118 dB

  • Impedance

    3 kOhms

  • Voltage

    Bias / +VDC: 1.3 V (0.9 to 20 V)

  • Current Drain

    25UA

  • Connector

    Binder 5-Pin for Audio Ltd. TXPH (En2) Wireless Transmitters

  • Wiring

    3-Wire Configuration:
    Red: Mic+
    Copper: Mic-output
    Green: Mic-shield (ground)

  • Cable Length

    4.90' (1.49m)

  • Dimensions

    Microphone: 0.51 x 0.27 x 0.13" (12.95 x 6.85 x 3.30mm)

  • Weight

    0.24oz (6.80g)

About Voice Technologies VT506

The Voice Technologies VT506 Omni Black Lavalier Microphone with Binder 5-pin Connector is designed for performing talent in broadcast, theatre and film. This high-quality, electret condenser microphone features a Binder 5-pin connector for Audio Ltd. TXPH (En2) wireless transmitters. This microphone has a rising frequency response to assure speech intelligibility and for under-clothing use, while the injection-molded design adds high solidity. It also comes with a flexible cable, which has enhanced isolation from rubbing noise.

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

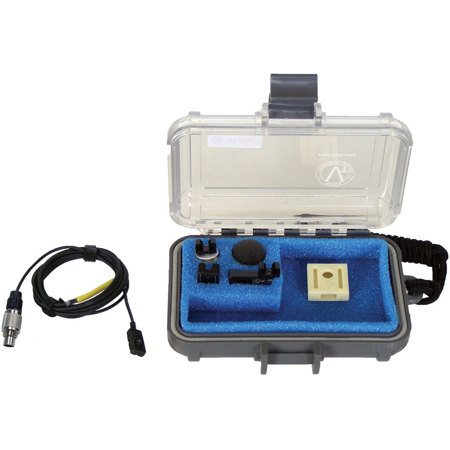

What's in the box:

  • Voice Technologies VT506 Omni Lavalier Microphone with Binder 5-pin Connector
  • VTO Otter Box
  • Alligator Microphone Clip
  • Pro Foam Windscreen
  • Tie Tac Microphone Clip
  • Dracula Microphone Clip
  • Rubber Body Microphone Mount
  • Voice Technologies 1 Year Parts & Labor Limited Warranty
