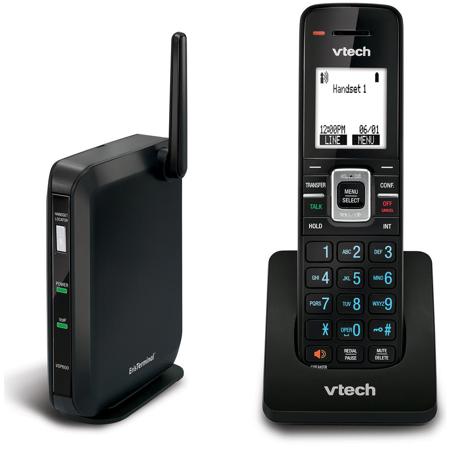

VTech VSP600 ErisTerminal SIP DECT Base Station and Cordless Handset

Add hands-free mobility to your SIP communications with the VSP600 base station. Expand up to six VSP601 SIP cordless handsets per base station, each with its own extension or unique phone number. The base station can be configured for up to six lines and supports up to four active, concurrent calls.

Super-clear mobility with Orbitlink Wireless Technology
Leave your desk without leaving your work behind and enjoy DECT 6.0 sound quality and reception.

Scalability
Growing pains? Register up to six cordless handsets to the VSP600 base station and program each one with its own phone number or extension.

Advanced call handling
Impress customers with comprehensive call handling features that are compatible with hosted and open-source PBX platforms.

Simultaneous call handling
View and manage up to two calls at the same time (per handset). Calls are displayed on screen, making them easy to answer, transfer, forward, etc.

Flexibility
With support for up to six SIP lines/accounts, you can manage multiple calls with advanced call handling features.

Intuitive Design
You're in business with a user-friendly interface, large backlit display, two soft keys and navigational pad.

Three-year warranty
Enjoy peace of mind that comes with an industry-leading, standard three-year warranty. VTech also provides advance replacement on warranty claims using new, not refurbished, products.

Interface
• DECT 6.0 RF module embedded
• DECT 6.0 (maximum register): 6 handsets
• Ethernet port - 10/100 Mbps
• Base power: AC adapter (included) and Class 2 Power over Ethernet (PoE)

Base Station Keys and Indicators
• Handset locator key
• Reset key
• Power LED
• VoIP LED

System Fnctions
• Supports up to 6 SIP account registrations (individual or shared among handsets)
• Supports up to 4 outgoing calls in parallel (system-wide)
• Base phonebook up to 200 entries
• Phonebook import/export
• LDAP remote phonebook
• Call history up to 200 entries
• Do Not Disturb (DND)
• 3-way local conference
• N-way network conference
• External/internal call transfer between handsets
• Call barring/blocking (block anonymous/blacklist)
• Dial plan/digit map
• Intercom
• Mute
• Redial
• 10 speed dial entries
• Call transfer: blind/attended
• Call hold
• Call forwarding: per-line basis (busy/always/no answer)
• Call timer (call duration)
• Caller ID
• Phonebook matching (incoming and outgoing calls)
• Multi-language support

Cordless Handset Display, Keys and Indicators
• 90 x 65 pixels (w x h) LCD resolution
• LCD backlighting (blue/white)
• Messaging waiting LED
• 2 soft keys
• 11 dedicated feature keys
• Keypad backlight

Cordless Handset Audio
• Half-duplex speakerphone
• HAC Receiver
• 2.5 mm corded headset jack

Cordless Handset Features
• Maximum number of call handling: 2
• Local phonebook up to 200 entries
• Call history up to 200 entries
• Do Not Disturb (DND)
• 3-way local conference
• N-way network conference
• External/internal call transfer between handsets
• Intercom between handsets
• Mute
• Redial
• 10 speed dial entries
• Call transfer: blind/attended
• Call hold
• Call forwarding: per-line basis (busy/always/no answer)
• Call timer (call duration)
• Caller ID
• Phonebook matching (incoming and outgoing calls)
• Multi-language support
• Integrated handset belt clip
• Off-cradle auto answer
• Keypad lock

Cordless Handset Power
• 7 days/7 hours standby time/talk time
• Cradle/charger: adapter 6v/300mA
• Handset battery: 2.4v/550

Customization
• Web interface configuration (admin & user)
• Custom default file

Security
• 802.1x
• 802.1pq
• Transport Layer Security (TLS)
• AES encryption of config file for provisioning (128 / 64 / 32 / 16 bits)
• LLDP-MED

Network
• STUN
• NAT
• RTP, SRTP
• SNTP
• VLAN
• Failover support and server redundancy
• Layer 3 QoS (ToS, Diffserv)

Voice Codec
• G.711 a-law & u-law
• G.722
• G.726
• G.729

Provisioning
• HTTP, HTTPS, FTP, TFTP
• DHCP options: 66, 159,160
• PnP

Maintenance
• Diagnostic: pcap trace
• Schedule Resync time and day setting
• Software Update Over the Air (SUOTA)
• Syslog

Compatibility
• Broadsoft Broadworks
• Asterisk-based platforms
• Metaswitch Networks
• Genband
