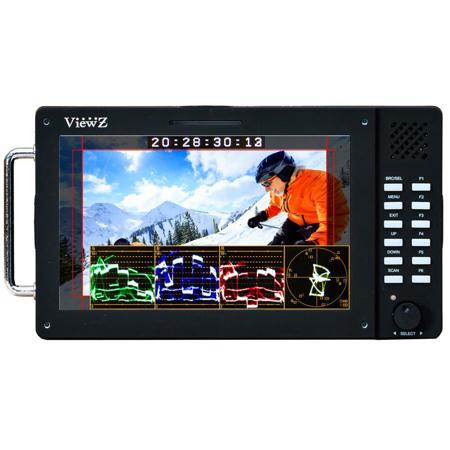

ViewZ VZ-070PM-3G 7" 3G-SDI HD Broadcast IPS 8-Bit LED Monitor, 1024x600

• SDI Embedded 16CH Audio Level Meter / 2CH Select Audio Waveform
• SDI to HDMI Converter and Display Out
• HDMI to SDI Converter Out
• 12bit to 8bit Dithering
• Maximum Brightness (On/Off)
• Screen Color Mode: Blue, Red, Green & Mono
• Selectable Hot Key
• Tally Lamp Red, Green Support
• False Color(SD/HD SDI)
• DSLR Scaling (HDMI)
• Peaking
• Key lock
• Focus Assist
• RJ-45(RS485) Remote Control

• 3G-SDI: 3-Gbps (3G)-SDI, higher resolution (FHD) of picture quality required Serial Digital Interface (SDI) for 1080p.
• Waveforms: Display the Luma(Y), Chroma(Cb/Cr) and RGB Components of the input video signal as a form of waves.
• JOG Dial: Use JOG dial button (or the Up and Down cursor buttons) to highlight the function, display the items and change the setting value you want to change.
• H/V Delay: Viewing of the blanking area and sync/burst signal by displaying the horizontal and vertical intervals in the center of the screen.
• Timecode Display: Time code (SMPTE or SMPTE code) is an electronic signal which is used to identify a precise location in digital systems and on time-based media like audio or video tape.
• Marker: 4:3, 14:9, 15:9 and 16:9 area line marker display.
• Vector Scope: Display an X-Y plot of two signal, which can reseal details about the relationship between two signals.
• UMD Dynamic: This model supports UMD (Under Monitor Display) function which displays Ancillary data at the foot of the screen.
