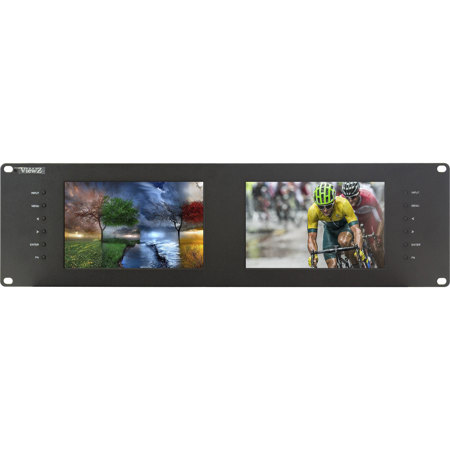

ViewZ VZ-070RM-E 3RU Dual 7" HD 3G-SDI Rack Mount LED Monitor, 1280x800 Res

ViewZ VZ-070RM-E 3RU Dual 7" IPS HD 3G-SDI Video Production Rack Mount LED Monitor, 1280x800 Native Res

SKU: VWVZ070RME
Be the first to review this item

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

ViewZ VZ-070RM-E Specifications

Display

Display

Jump to...

  • Screen Size

    2x 7" (IPS Panel)

  • Max Resolution

    1280 x 800

  • Brightness

    350 cd/m2

  • Contrast Ratio

    800:1

  • Aspect Ratio

    16:10

  • Viewing Angle (H/V)

    178 deg. /178 deg.

  • Pixel Pitch

    0.039mm x 0.117mm

  • Color Depth

    16.7M (8 Bit)

LUT / Calibration

Jump to...

  • Gamut

    Panel Native value

  • Gamma

    2.2 base

  • Color Temp.

    Supportable 6500K, 7500K, 9300K and User

Interface

Jump to...

  • SDI In / Out

    (1/1) x 2

  • HDMI In / Out

    (1/1) x 2

  • RJ45 (Remote Control)

    (1) x 2

  • Component (Y, Pb, Pr)

    (3/3) x 2

  • AV (Composite) In / Out

    (1/1) x 2

Input Signal (Supports Display Of)

Jump to...

  • SDI - SMPTE 425M-A (Supports Display Of)

    1080p / 60, 59.94, 50
    1920 x 1080i / 60, 59.94, 50

  • SDI - SMPTE 274M (Supports Display Of)

    1920 x 1080p / 30, 29.97, 25, 24, 23.98 psf
    1920 x 1080i / 60, 59.94, 50

Input Signal Format

Jump to...

  • SDI - SMPTE 296M

    1280 x 720p / 60, 59.94, 50

  • SDI - SMPTE 125M

    480i / 59.94

  • ITU-R BT.656

    576i / 50

General

Jump to...

  • Power - Electrical Ratings

    DC 12V

  • Power - Consumption

    18W (1.5A)

  • Operating Temperature

    32 to 104 deg. F (0 to 40 deg. C)

  • Dimensions (WxHxD)

    Outline: 19 x 5.25 x 0.99" (48.26 x 13.34 x 2.51cm)

  • Weight

    6.35 lbs (2.88kg)

About ViewZ VZ-070RM-E

3G-SDI
3-Gbps (3G)-SDI, higher resolution (FHD) of picture quality required Serial Digital Interface (SDI) for 1080p/60Hz.

Remote
Remote Control through a network is possible by using a PC.

Color Temperature
Color Temp - 6500 deg. K, 7500 deg. K, 9300 deg. K and built-in user mode.

IPS Lifelike Color Expression
VZ-070FM-E has a 1280x800 resolution & use 7" IPS panel with wide viewing angles 178 deg. x 178 deg.

PIP
PIP - Built-in Picture in Picture function.

1:1 Pixel to Pixel
1:1 pixel mode displays the original image resolution without scaling to match a certain resolution or an aspect ratio.

H/V Delay
Viewing of the blanking area and sync/burst signal by displaying the horizontal and vertical intervals in the center of the screen.

Marker
Center On/Off Safety - 95%, 93%, 90%, 88%, 85%, 80%.

ViewZ VZ-070RM-E Features

  • 7" 3G HD-SDI ENG/EFP Monitor
  • 1280 x 800 Resolution (IPS Panel)
  • 12bit to 8bit Dithering
  • Gamma 2.2-base Calibration
  • RJ-45 Remote Control
  • 2ch Audio Level Meter
  • LED Backlight Adjustment
  • One Front Assignable Function Button
  • 3G SDI LEVEL A/B (YCbCr, RGB 4:4:4) Support
  • Image Flip - On/Off & Zoom - Off, x2, x4, x6, x8
  • Multi-Format Support
  • False Color (SD/HD-SDI)
  • Screen Color Mode: Blue, Red, Green & Mono
  • H/V Delay
  • Red/Green Mode Tally
  • Zero, Under, Over, Pixel to Pixel Scan
  • Various Markers
  • Exposure
  • On-Screen Menu
  • Aspect Ratio - Full, 16:9, 4:3, 1.85:1, 2.35:1

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • ViewZ VZ-070RM-E 3RU Dual 7 " IPS HD 3G-SDI Video Production Rack Mount LED Monitor
  • Power Adapter
  • ViewZ 2 Year Parts Warranty
