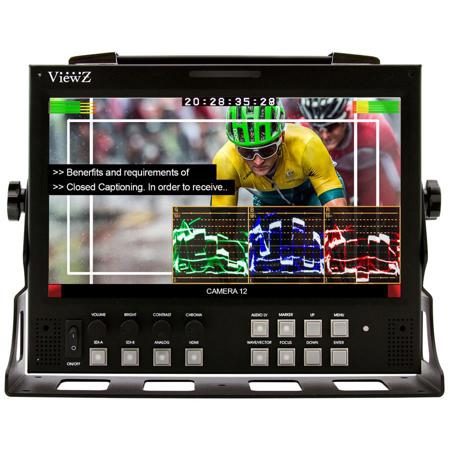

ViewZ VZ-090PM-P 9" 3G-SDI HD ENG/EFP 8-Bit Production Monitor

ViewZ VZ-090PM-P 9" 3G-SDI HD ENG/EFP 8-Bit Production Monitor, 960x540

SKU: VWVZ090PMP
Be the first to review this item

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

ViewZ VZ-090PM-P Specifications

  • Display Screen Size

    9"

  • Display: Maximum Resolution

    960 x 540 pixel

  • Display: Pixel Pitch

    0.21 x 0.21mm

  • Display: Brightness

    400cd/m2 (Typical)

  • Display: Contrast Ratio

    1000:1

  • Display: Aspect Ratio

    16:9

  • Display: Viewing Angle

    Horizontal: 170 deg.
    Vertical: 170 deg.

  • Display: Color Depth

    16.7M

  • Interface: SDI In / Out

    2 / 1

  • Interface: HDMI In

    1

  • Interface: Component In (BNC jack)

    3 (3CVBS, S-Video, Component)

  • Interface: RS-422 In / Out

    1 / 1

  • Interface: RJ-45 In

    1x (Remote Control)

  • Interface: Audio In / Out

    1 / 1 (Analog Stereo)

  • Interface: HDMI In (PGM Download)

    1x (PGM Download)

  • Audio: Built in speaker

    2x 1W

  • Input Signal Formats: SDI

    SMPTE 425M-AB: 1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98); 1080i ( 60 / 59.94 / 50 ); 1080 Psf (30 / 29.97 / 25 / 24 / 23.98)
    SMPTE 274M: 1080P (30 / 29.97 / 25 / 24 / 23.98); 1080i (60 / 59.94 / 50); 1080Psf (30 / 29.97 / 25 / 24 / 23.98)
    SMPTE 260M: 1035i (60 / 59.94)
    SMPTE 296M: 720P(60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
    SMPTE 125M: 525i (NTSC 59.94)
    ITU-R BT.601: 625i (PAL 50)
    2K Format: 2048 x 1080P (24 / 23.98 / 24sF / 23.98sF)

  • Input Signal Formats: Analog

    CVBS, S-Video
    NTSC(525 / 59.94i), PAL(625 / 50i)
    Component:
    1080P (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
    1080i (60 / 59.94 / 50), 720P(60 / 59.94 / 50)

  • Input Format: HDMI

    480i / 480P / 576i / 576P / 1080i / 1080P

  • Power: Electrical Ratings

    XLR-4p (DC 12 to 24V)

  • Power Consumption

    15W

  • Operating Temperature

    32 to 104 deg. F / 0 to 40 deg. C

  • Dimensions (W x H x D)

    8.93 x 6.85 x 1.8" / 22.68 x 17.40 x 4.57cm

  • Weight

    5.51lbs / 2.5kg

About ViewZ VZ-090PM-P

• 3G SDI LEVEL A/B (YCbCr, RGB 4:4:4) Support
• SDI Embedded 16CH Audio Level Meter / 2CH Select Audio Waveform
• Selectable Y/R/G/B Histogram (SD/HD SDI )
• Y Clip Guide Min/Max Select (SD/HD SDI)
• Field Color Calibration Software (option) support
• RJ-45 Remote Control
• 12bit to 8bit Dithering
• False Color(SD/HD SDI)
• Focus Assist(SD/HDSDI)
• DSLR Scaling (HDMI)
• DPMS Select
• 3G-SDI: 3-Gbps (3G)-SDI, Automatically adapts to SMPTE and ITU digital video standards for 3G-SDI, HD-SDI and SDI
• Vector Scope: Display an X-Y plot of two signals, revealing the detailed relationship between two signals. On screen display of chrominance information in Cb and Cr channels. Display can be opaque or solid against the visual display
• Waveform: Display the Luma(Y), Chroma(Cb/Cr) and RGB Components of the input video signal
• C & C: Decoder supports CEA-608(ANC, Line21) / 708
• UMD Dynamic: Supports Under Monitor Display function, using TSL Protocol
• Timecode Display: Support for VITC and LTC timecode display
• Full screen audio level meter available. If using two monitors, one can display full screen audio levels, while the other display the visual content.
• Color Calibration: By using the ViewZ VZ-CSP software along with relatively inexpensive colorimeter such as I-One and K-10A, you can get calibration results as close to using the actual CS-2000 hardware

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • ViewZ VZ-090PM-P 9 " 3G-SDI HD ENG/EFP 8-Bit Production Monitor
  • ViewZ 2 Year Parts and 90 Day Labor Warranty
