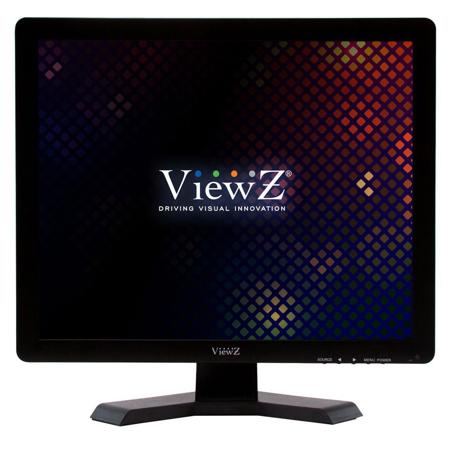

ViewZ VZ-17RTN 17" Commercial-Grade LED CCTV Monitor with Built-In Speakers
See all ViewZ items

ViewZ VZ-17RTN 17" Commercial-Grade LED CCTV Monitor with Built-In Speakers, 1280x1024

SKU: VWVZ17RTN

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

ViewZ VZ-17RTN Specifications

Video

Video

Jump to...

  • Screen Size

    17"

  • Max Resolution

    1280 x 1024 at 60Hz

  • Pixel Pitch

    0.264mm x 0.264mm

  • Brightness

    300cd/m2(Typical)

  • Contrast Ratio

    700:1

  • Aspect Ratio

    5:4

  • Viewing Angle (H/V)

    170 deg. /150 deg.

  • Display Color

    16.7 Million

  • Response Time

    < 5ms

  • Video System

    NTSC / PAL

  • Frequency (H)

    30-80 kHz

  • Frequency (V)

    50 - 75 Hz

Interface

Jump to...

  • AV (Composite) In / Out

    2/1

  • VGA In (15Pin D-Sub)

    1

  • HDMI In

    1

  • Audio In / Out

    1/1

Audio

Jump to...

  • Built in speaker

    1.5W X 2

Special Functions

Jump to...

  • Filter Type

    3D Comb-filter / De-Interlace

  • Analog Video Resolution (Max)

    600 TV Line

  • Language

    English, Deutsch, French, Spanish, Italian

Mount

Jump to...

  • VESA

    75mm x 75mm

Power

Jump to...

  • Electrical Ratings

    DC 12V, 3A (AC 100-240V, 50/60Hz)

  • Consumption

    20W

General

Jump to...

  • Operating Temperature

    14 to 122 deg. F (-10 to 50 deg. C)

  • Operating Humidity

    20-70% RH

  • Regulations

    FCC(A), CE

  • Dimensions (WxHxD)

    Without stand: 15.06 x 12.40 x 1.7" (38.25 x 31.50 x 4.32cm)

  • Weight

    6.10 lbs (2.77kg)

About ViewZ VZ-17RTN

Value commercial-grade LED CCTV monitor for professional security.

ViewZ VZ-17RTN Features

  • 17" LED CCTV Monitor
  • 600 TV Line, 3D Comb-filter, De-Interlace, Built-in Speakers
  • 17" Black Flat Panel LED "A" Commercial-Grade Monitor
  • 1280X1024 / 4:3 (16:9) Available
  • 2 BNC(Composite) Inputs / 1 BNC (Composite) Output (Loop-through)
  • HDMI / VGA / Audio In/Out
  • Analog Video Resolution (Max) - 600 TV Line
  • 3D Comb-Filter / De-Interlace
  • OSD / Remote Control
  • Auto Source & Power Recovery
  • 2.5W Stereo Speaker x 2
  • 3-Year Warranty

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • ViewZ VZ-17RTN 17 " Commercial-Grade LED CCTV Monitor with Built-In Speakers
  • Monitor Stand
  • 110V Power Cable
  • Power Supply
  • HDMI Cable
  • Remote Controller
  • User Manual
  • ViewZ 3 Year Limited Warranty
