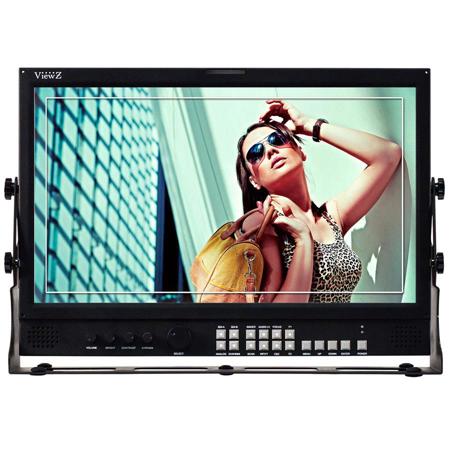

ViewZ VZ-185PM-P 18.5" LED 3G-SDI & 8-Bit Video Production Monitor

ViewZ VZ-185PM-P 18.5" LED 3G-SDI & 8-Bit Video Production Monitor, 1366x768

SKU: VWVZ185PMP
Be the first to review this item

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

ViewZ VZ-185PM-P Specifications

  • Display: Type

    18.5" / 46.99cm IPS LCD

  • Display: Aspect Ratio

    16:9

  • Display: Resolution

    1366 x 768

  • Display: Pixel Pitch

    0.1 mm x 0.3 mm

  • Display: Brightness

    250 cd/m2 (typical)

  • Display: Contrast Ratio

    1000:1

  • Display: Viewing Angle (H/V)

    178 deg. / 178 deg.

  • Display: Color Depth

    8-bit (16.7 million colors)

  • Display: Gamma

    1.0 to 3.0
    2.2 base calibration

  • Display: Color Temperature

    3200K, 5500K, 6500K, 9300K, 3 custom user profiles

  • Interface: Inputs

    2x 3G-SDI (BNC connectors)
    1x HDMI
    1x Component / Composite / S-Video (3 BNC connectors)
    1x DVI
    1x RS-422
    1x RJ-45, remote control
    1x Audio in, analog stereo
    1x PGM port, program update (HDMI connector)

  • Interface: Outputs

    1x 3G-SDI active loop through (BNC connector)
    1x HDMI
    1x Composite (RCA connector)
    1x RS-422
    1x Audio, analog stereo

  • Interface: Built-in Speaker

    2 x 2 W

  • Input Signal Formats: SDI

    SMPTE 425M-A/B: 1920x1080p 60/59.94/50/30/29.97/25/24/23.98, 1920x1080psf 23.98, 1920x1080i 60/59.94/50
    SMPTE 274M: 1920x1080p 30/29.97/25/24/23.98, 1920x1080psf 23.98 1920x1080i 60/59.94/50
    SMPTE 296M: 1280x720p 60/59.94/50
    SMPTE 260M: 1280x1035i 60/59.94
    ITU-R BT.656: 720x576i 50
    2K Format: 2048x1080p 24/23.98, 2048x1080psf 24/23.98

  • Input Signal Formats: Analog

    Composite / S-Video: NTSC 525/59.94i, PAL 625/50i
    Component: 1080p 60/59.94/50/30/29.97/25/24/23.98, 1080i 60/59.94/50, 720p 60/59.94/50

  • Input Signal Formats: HDMI

    1080p, 1080i, 576p, 576i, 480p, 480i

  • Input Signal Formats: DVI

    WUXGA, WXGA, SXGA, XGA, SGA, VGA

  • Power Input

    1x XLR 4-pin, 12 to 24 VDC
    1x 100 to 240 VAC plug input

  • Power Consumption

    Approx. 60 W

  • Operating Temperature

    32 to 104 deg. F / 0 to 40 deg. C

  • Dimensions (W x H x D)

    17.44 x 21.16 x 2.25" / 44.30 x 53.75 x 5.72cm

  • Weight

    14.33lbs / 6.50kg

About ViewZ VZ-185PM-P

• 18.5" LED HD-SDI Monitor
• 1366 x 768 Resolution
• SDI to HDMI Converter
• 12bit to 8bit Dithering
• Gamma 2.2-base Calibration
• Panel Native Gamut / VZ-CSP compatible
• SDI Active Loop Through Out
• 3G SDI LEVEL A/B (YCbCr, RGB 4:4:4) Support
• 12bit to 8bit Processing
• Resolution ( 1366x768 )
• Selectable Y/R/G/B Histogram (SD/HD SDI)
• Y Clip Guide Min/Max Select ( SD/HD SDI )
• Multi-Format Support
• Embedded 16CH Audio Level Meter ( Full Display Select )
• 2CH Select Audio Waveform
• Full Screen Audio Level Meter / Built-in Speaker
• False Color ( SD/HD- SDI ) & Focus Assist ( SD/HD-SDI )
• DSLR Scaling ( HDMI ) & DPMS Select
• H/V Delay & Red & Green Mode Tally
• Red/Green Mode Tally
• Zero, Over, Pixel to Pixel Scan
• Various Markers
• Closed Caption, CEA-608 / 708
• Integrated Waveform & Vectorscope
• UMD (TSL Protocol) & Timecode
• Screen Color Mode: Blue & Mono
• Precise White Balance & Gamma
• Color Calibration Software Package (VZ-CSP) Compatible
• On-Screen Menu
• RJ-45 Remote Control

3G-SDI
3-Gbps (3G)-SDI, Automatically adapts to SMPTE and ITU digital video standards for 3G-SDI, HD-SDI and SDI

Waveform
Display the Luma(Y), Chroma(Cb/Cr) and RGB Components of the input video signal

Jog Didgital
Use JOG dial button (or the Up and Down cursor buttons) to highlight the function, display the items and change the setting value you want to change.

C&C
Decoder supports CEA-608(ANC, Line21) / 708

Vector Scope
Display an X-Y plot of two signals, revealing the detailed relationship between two signals. On screen display of chrominance information in Cb and Cr channels. Display can be opaque or solid against the visual display

UMD Dynamic
Supports Under Monitor Display function, using TSL Protoco

Timecode Display
Support for VITC and LTC timecode display

Color Calibration
By using the ViewZ VZ-CSP software along with relatively inexpensive colorimeter such as I-One and K-10A, you can get calibration results as close to using the actual CS-2000 hardware

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • ViewZ VZ-185PM-P 18.5 " LED 3G-SDI & 8-Bit Video Production Monitor
  • ViewZ 2 Year Parts & 90 Day Labor Warranty
