This item is no longer available.
Great Quality and Price
I'm using this as a production monitor with an SDI connection from my BMD Ursa Mini and the quality is great - better than I expected - especially for the price.

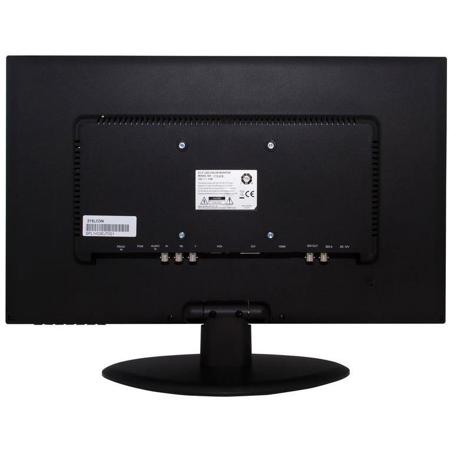

• 21.5" LED HD-SDI Monitor
• Color Calibration Ready
• 3G-SDI IN/OUT Monitor
• SDI Active Loop Through Out
• Abailable Color Temperature - 3200K, 6500K, 9300K and more
• Marker / Safety Area / Audio Level Meter
• 1920 x 1080 Resolution
• Y Clip Guide Min/Max Select (SD/HD SDI)
• Scan - Zero, Over pixel to pixel
• Programmable Function Key
• Aspect Setting
• Various Markers
• On-Screen Menu
• Screen Color Mode: Blue & Mono
• Built-in Speaker
• SDI Embedded 16CH Audio Level Meter
Supports 3G-SDI 4:4:4 HD
Supported formats include 3G-SDI, FHD, SMPTE 425M-A, SMPTE 274M, SMPTE 296M, SMPTE 125M, ITU-R BT 601, 2K, component, HDMI, DVI and VGA.
ViewZ Color Calibration
The ViewZ professional reference monitors provide the most accurate display for displaying any type of entertainment content. Catering to specific needs, ViewZ reference monitors can be custom calibrated at the factory upon request. All of ViewZ broadcast monitors are calibrated using their CS-2000 Spectroradiometer to analyze their panels specifications and test with an I-one & K-10 colorimeter to apply custom color calibration values at the factory before they ship. ViewZ has developed the VZ-CSP (Calibration Software Package) to help their Broadcast customers calibrate their ViewZ broadcast monitors anywhere and anytime with inexpensive hardware.
SDI Active Loop-Through
Supports full SMPTE 425M-AB input signal with active loop-through output.
LCD with LED Backlight Panel
See brighter, sharper picture in more vibrant colors. LED backlight technology offers benefits over CCFL LCDs of reduced energy consumption, better contrast and brightness, greater color range, more rapid response to changes in scene and more accurate image rendering. LCD panels offers clear images and stable response time. LCD panels display consistent and accurate color from all viewing angles and do not lighten or show tailing when touched.
Pixel to Pixel Mapping
1:1 pixel mode displays the original image resolution without scaling to match a certain resolution or an aspect ratio.
De-Embedded Audio Level Meter
De-Embedded Audio Selected Out. Auto sensing to display three range meter of up to 16 channels.
Aspect Format Markers
off, 16:9, 4:3, 4:3(on air), 15:9, 14:9, 13:9, 1.85:1, 2.35:1, 1.85:1 and 4:3, line, safety, corner marker on/off, blue/green/red/gray/black and white marker color option, marker mat transparency set - 0(transparent) to 7 (black) and center markers display.
Color Setting / Color Temperature
Users can choose Color Space Default (default color temp from selected color space. This value automatically changes according to user's choice of color space), 3200K, 6500K, 9300K and User settings.
H/V Delay
View the blanking area and syncronize signals by displaying the horizontal and vertical intervals in the center of the screen.
RJ-45 Remote Control
Plug in your RJ-45 connector to the back of the monitor and communicate with ViewZ broadcast monitors.
Commercial Grade "A" Panels Built to Run 24/7/365
ViewZ monitors are built with commercial grade "A" panels which has superior color reproductions, low defect ratio, etc. Built to run 24 hours a day, 7 days a week, 365 days a year.
