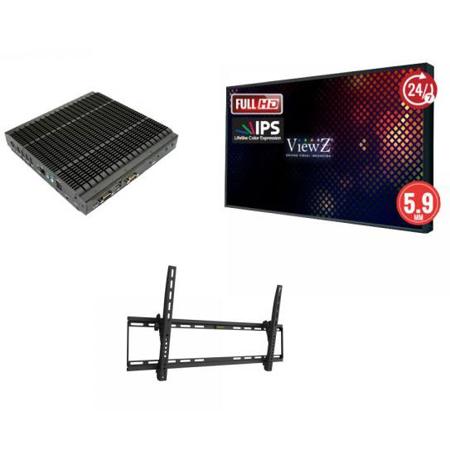

ViewZ VZ-4KVW-55NB Basic 4K Video Wall Package
See all ViewZ items

ViewZ VZ-4KVW-55NB Basic 4K Video Wall Package, Includes VZ-55NB 55" Full HD LED Narrow Bezel Video Wall Monitor, VZ-PRO-MINI Video Wall Server and VZ-WM71 Wall Mount

SKU: VWVZ4KVW55NB

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

ViewZ VZ-4KVW-55NB Specifications

Monitor

Monitor

Jump to...

  • Video: Screen Size

    55"

  • Video: Maximum Resolution

    1920 x 1080 at 60Hz

  • Video: Pixel Pitch

    0.630mm x 0.630mm

  • Video: Brightness

    700cd/m2(Typical)

  • Video: Contrast Ratio

    1300:1

  • Video: Aspect Ratio

    16:9

  • Video: Viewing Angle (H/V)

    178 deg. /178 deg.

  • Video: Display Color

    1.07 Billion

  • Video: Response Time

    < 8ms

  • Video: Video System

    NTSC / PAL

  • Interface: VGA In (15Pin D-Sub)

    1

  • Interface: DVI-D In

    1

  • Interface: HDMI In

    1

  • Interface: USB In

    2

  • Interface: AV (Composite) In / Out

    4/1

  • Interface: Component In

    1 (Y, Pb, Pr - BNC)

  • Interface: S-Video (Y, C - BNC) In

    1

  • Interface: RS-232 In / Out

    1/1

  • Interface: RCA (Audio) In / Out

    1/1

  • Interface: PC Stereo In

    1

  • Audio: Built in speaker

    10W x 2

  • Bezel Width: TOP and LEFT Side

    0.23" / 5.9mm

  • Bezel Width: BOTTOM and RIGHT Side

    0.23" / 5.9mm

  • Bezel Width: ACTIVE AREA to ACTIVE AREA

    0.46" / 11.8mm

  • Image Rotation: Image Rotation

    Yes

  • USB Media Player: Video Codec

    WMA/WMV, AAC, AC3, DIVX, MPEG, H264, VC1, AVS, FLV, RM/RMVB

  • USB Media Player: Video Format

    MPEG, AVI, MOV, MP4, MKV, RM, RMVB

  • USB Media Player: Image Format

    JPEG, PNG, BMP

  • USB Media Player: Music Format

    mp3, mp4, wma

  • USB Media Player: Text Format

    TXT (raw text file only)

  • USB Media Player: Support Capacity

    Max 16GB

  • Mount: Universal

    600 x 94 x 200 x 94mm, M6 x 4 Screws

  • Transmitter - IR Remote Control

    Yes

  • Power: Electrical Ratings

    AC100 - 240V (50/60Hz) / 3.5 A

  • Power: Consumption

    150 W (Max) / 1.25 W (Standby)

  • Regulations

    FCC, RoHS

  • Operating Temperature

    0 to 40 deg. C (32 to 104 deg. F)

  • Storage Temperature

    -4 to 140 deg. F (-20 to 60 deg. C)

  • Operating Humidity (Non-Condensing)

    20% - 85% RH

  • Storage Humidity (Non-Condensing)

    10%-90% RH

Wall Controller

Jump to...

  • Processor

    1.0 GHz Quad Core E-series processor

  • Storage

    SATA or mSATA 256GB

  • System Memory

    8GB DDR3 ECC (option : 16GB available)

  • Graphics

    Integrated Chrome 645/640 DX11 3D/2D graphics with MPEG-2, WMV9, VC-1 and H.264 video decoding acceleration

  • Resolution / per channel

    Up to 1920 x 1080

  • HDMI capture-in port

    1

  • VGA capture-in port (optional)

    1

  • Antenna hole

    1 for 3G or TV module (optional)

  • Antenna for Wi-Fi (optional)

    1

  • DIO port for 8 -bit GPIO

    1

  • HDMI Output

    4

  • USB 3.0 / 2.0

    2/2

  • COM port for RS-232/422/485

    1

  • Network (RJ-45)

    1 - 10/100/1000 Base-T

  • PC Stereo In / Out

    1/1

  • Video Codec

    H.264, MPEG-4, VC-1, WMV9

  • Video File Format

    WMV, AVI, MKV, ASF, FLV, MOV

  • Image File Format

    JPEG, BMP, PNG, TIFF

  • VESA

    100mm x 100mm

  • Power - Electrical Ratings

    DC 12V, 2A (AC100 - 240V[50/60Hz])

  • Power - Consumption

    43.42W (Typical), 48.83W(Maximum)

  • Mechanical Construction

    Aluminum alloy

  • Regulations

    CE, FCC Class A

  • Operating Temperature

    0 to 45 deg. C (32 to 113 deg. F)

  • Operating Humidity

    0% to 90% (Non-condensing)

  • Storage Temperature

    10 to 60 deg. C (50 to 140 deg. F) at 90%, Non-condensing

  • Vibration Loading during OS

    5Grms, IEC 60068-2-64, random, 5-500Hz, 1hr/axis

  • Shock during operation

    50G, IEC 60068-2-27, half size, 11ms duration

  • System OS

    Windows 7 Professional

Wall Mount

Jump to...

  • Fit mounting patterns

    Up to 805 x 410mm

  • Max. VESA

    800x400

  • Tilt

    -10 deg. -0 deg.

  • Fits

    Most 40"-65"

General

Jump to...

  • Dimensions (WxHxD)

    Monitor: 48.32 x 27.48 x 3.42"
    Wall Controller: 10.03 x 9.84 x 1.81" (25.48 x 24.99 x 4.60cm)

  • Weight

    Monitor: 66.91 lbs (30.35kg)
    Wall Controller: 8.15 lbs (3.70kg)

About ViewZ VZ-4KVW-55NB

- ViewZ VZ-55NB 55" Full HD LED Narrow Bezel Commercial Video Wall Monitor -
Narrow bezel commercial-grade HD LED CCTV Video Wall displays for professional security and digital signage.

- VZ-PRO-MINI Video Wall Controller -
The PRO Video Wall Controller series maximizes visual performance and flexibility from video Inputs to array of displays. Your display setup becomes an open canvas which allows for combination of inputs or archived media to be displayed in any variation across all screens. <
>
- VZ-WM71 Wall Mount -
• 40"~65" ViewZ Monitors
• -10 deg. ~0 deg. tilt
• Universal Mounting Hold Position
• 3-Year Warranty

ViewZ VZ-4KVW-55NB Features

  • -- VZ-55NB 55" Full HD LED Narrow Bezel Commercial Video Wall Monitor --
  • 55" 1080p CCTV LED Monitor / 1.07B color IPS Panel
  • Narrow 5.9 mm Metal Bezel
  • High Brightness 700 cd/m½
  • Digital & Analog Inputs
  • USB - Media Player
  • Prevents Pixel Burn-In
  • 55" Flat Panel Widescreen LED A Commercial-Grade Monitor
  • 55" Black All Metal 5.9 mm Narrow Seamless Bezel
  • 1.07 Billion Color IPS Panel (10 bit)
  • Full HD 1920x1080 / 16:9
  • HDMI / DVI / VGA / USB / AV (composite) / S-Video(Y,C-BNC) / RCA (Audio) In&Out / PC Stereo In / Rs-232 IN
  • 3D Comb Filter / De-Interlace
  • Auto Power and Source Recovery
  • 10W Speaker x 2
  • AC100 - 240V(50/60Hz)
  • 3-Year Warranty
  • -- VZ-PRO-MINI Video Wall Controller --
  • Fan-less and rugged chassis
  • 1-channel Full HD video inputs and 4-channel outputs
  • 1080p video playback across multiple displays simultaneously
  • Spectacular HD 1080p output
  • Simultaneous 1080p video playback support
  • Industrial grade high-performance systems with Windows 7 Professional OS
  • Max bit rate - 100Mbps ( 4 channel )
  • 3-Year Warranty

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • ViewZ VZ-55NB 55 " Full HD LED Narrow Bezel Video Wall Monitor
  • VZ-PRO-MINI Video Wall Server
  • VZ-WM71 Wall Mount
  • ViewZ 3 Year Warranty
