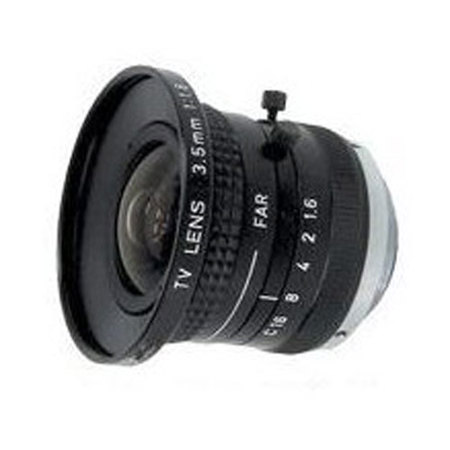

ViewZ 3.5mm F1.6 FA Fixed Lens with Lock Screws and C-Mount for 1/2" Cameras, Manual Iris, Manual Focus

FA Lens with Lock Screws
Machine vision / factory automation is the technology to replace or complement manual inspections and measurements with digital cameras and image processing. The technology is used in a variety of different industries to automate the production, increase production speed and yield and to improve product quality. ViewZ machine vision / factory automation (FA) lenses help provide accurate performance and system flexibility and include lock screws for the focus and iris ring.

Fixed Focal Length Lenses
As CCTV cameras becomes more reliable and maintenance-free through the use of solid-state charge-coupled device (CCD) technology, the lenses also need to have the same high standards of quality and reliability.

Fixed focal length lenses from ViewZ meet these tough requirements by providing long and reliable operation with zero maintenance. A range from wide-angle to telephoto is available to cover virtually all applications in security and industrial observation systems. ViewZ fixed lenses are available with manual, DC and Video auto-iris options.

Made In Japan
All ViewZ lenses are all made in Japan and we produce superior quality products in a small-sized manufacturing environment, where we respect craftsmanship. ViewZ offers over 180 advanced lens solutions such as Fixed, Vari-Focal and Zoom in both standard and megapixel resolutions for a variety of applications. Each ViewZ lens is backed by our 4-year warranty.

Manual Iris
An iris that can be manually adjusted for different lighting conditions. This type of lens is normally used for fixed lighting applications or in conjunction with the electronic iris in the camera if the scene lighting level changes.

Various Focal Length
Focal length is the basic characteristic of a lens and determines how much magnification it provides. The focal length defines the area of the scene that can be viewed with a given sensor size and is expressed in millimeters (mm). ViewZ lenses have many options when it comes to focal length selection to fit your application.

C Mount
CCTV lenses are available in two different lens mounts. Many of today's cameras can accept either type of lens, but it is important to make sure that camera and lens are compatible and set up properly. C-mount lenses have a flange back distance of 17.526mm vs. 12.5mm for CS-mount lenses. C-mount lenses can be used on CS-mount cameras by utilizing a 5mm adapter or adjusting the camera for C-mount lenses.
