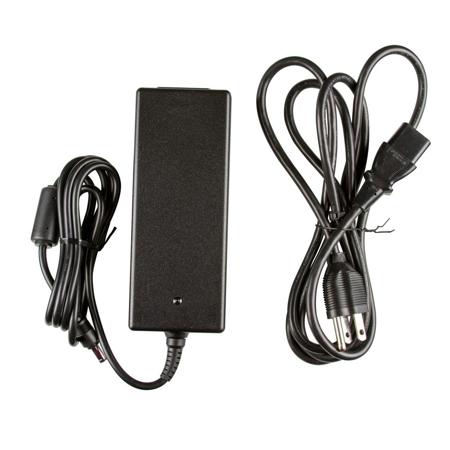

ViewZ VZ-PSU3 AC 110V to DC 12V Adapter for 9.7" to 24" Monitors, 70W Output

ViewZ VZ-PSU3 AC 110V to DC 12V Power Adapter for 9.7" to 24" Monitors, 70W & 5.83A Output

SKU: VWVZPSU3
Be the first to review this item

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

ViewZ VZ-PSU3 Specifications

  • Compatibility

    Monitors:
    VZ-097RCR-D
    VZ-101RTC
    VZ-17RTN
    VZ-19RTN
    VZ-19CME
    VZ-19CMP
    VZ-19CMX
    VZ-22CME
    VZ-22CMP
    VZ-22CMX
    VZ-24CME
    VZ-24CMP
    VZ-24CMX
    VZ-215LED-SN

  • Input Voltage

    100 - 240V AC, 50/60Hz, 1.5A

  • Output Voltage

    12V DC

  • Output Watt

    70W

  • Output Current

    5.83A

  • Safety Standards

    UL/CUL(ULE132068 Level 3), RoHS, KC-MARK(KTL SU10528-12014), C-Tick (N1030), BSMI (R33275)

  • EMI Standards

    FCC (PART15 CLASS B), VCCI (CLASS B), CISPR (Part 22, CLASS B)

  • Input Plug Type

    IEC320 C14 AC PIN

  • Output Cord

    Wire: 14AWG /1571 1500mm
    Plug: Jack Plug 5.5 x 2.5 x 12.01mm

  • Short-Circuit Protection

    Short circuit protection with Auto Recovery function

  • Over-Voltage Protection

    18V DC maximum auto-recovery function

  • Over-Current Protection

    9A maximum with auto-recovery function

  • Construction

    PC material

  • Operating Humidity

    20% - 80% RH. Non-condensing

  • Storage Humidity

    10% - 90% RH. Non-condensing

  • Operating Temperature

    32 to 104 deg. F (0 to 40 deg. C)

  • Storage Temperature

    -40 to 158 deg. F (-40 to 70 deg. C)

  • Cable

    UL AWM Style 1571

  • Cooling

    Cooling shall be with natural convection cooling

  • Dimensions (WxLxH)

    2.36 x 5.9 x 1.37" (5.99 x 14.99 x 3.48cm)

  • Weight

    1.10 lbs (0.50kg)

About ViewZ VZ-PSU3

• Fully testified for 101 RTC, 17" & 19" RTN, 19" & 22" & 24" CMP / CME / CMX, 21.5" LED-S
• DC 12V / 5.83A / 70W output
• AC 100-240V / 50 or 60Hz / 1.5A input
• Green Power On LED
• Smart Device Surge - Over-Voltage, Over-Heat, Overload, Over-Current and Short- Circuit Protection
• Safe & Reliable
• Wide Voltage Compatibility
• Comply with Environmental Protection Requirements
• Complies with International Safety Standards & Environmental Protection Requirements
• Compact & Lightweight
• Long product life, MTBF of 50,000 hours
• Safety: UL, KCC, CCC, TUV/GS, BSMI, PSE, RCM
• EMI: CE, FCC/UL
