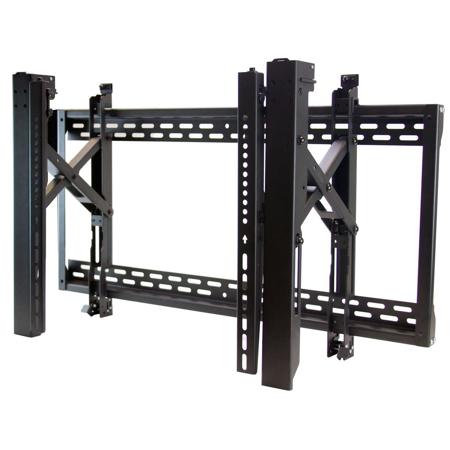

ViewZ VZ-XMS Spring Loaded Scissor Video Wall Mount for UNB, NB & UHD Monitors

ViewZ VZ-XMS Spring Loaded Scissor Video Wall Mount for 49"/55" UNB, 49"/55" NB & 55"/65" UHD Monitors, 154 Lbs Capacity

SKU: VWVZXMS
Be the first to review this item

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

ViewZ VZ-XMS Specifications

  • Compatibility

    Monitors:
    VZ-49NB
    VZ-49UNB
    VZ-55UHD
    VZ-55NB
    VZ-55UNB
    VZ-65UHD

  • Weight Capacity Per Head

    154 lbs (69.85kg)

  • Mounting Patterns Type

    Range

  • Mounting Patterns

    200x200mm (Min) to 800x400mm (Max)

  • Display Range

    49" to 65"

  • Extension

    7.99" (20.29cm)

  • Tilt

    -20 deg. to +40 deg. (Ver) / +/-30 deg. (Hor)

  • Height Adjustment

    25mm (0.98")

  • Depth Adjustment

    20mm (0.79")

  • Dimensions (WxHxD)

    44.64 x 19.01 x 3.74 - 11.22" (113.39 x 48.29 x 9.50 - 28.50cm)
    34.25 x 16.33 x 1.29" (87.00 x 41.48 x 3.28cm)

  • Weight

    25 lbs (11.34kg)

About ViewZ VZ-XMS

The ViewZ XMS mount is a customizable CCTV video wall extending flat-panel mount for displays weighing up to 154 lbs / 70kg with a mounting pattern of 200 x 200 to 800 x 400mm. It features multi-monitor stacking, open design, custom spacers, top adjustable mounting brackets and straight scissor-style extension.

ViewZ VZ-XMS Features

  • 49" to 65" Flat Video Wall Mount
  • Pop-out Landscape CCTV Video Wall Mount
  • Pop-out extension easily pulls out for installation and maintenance
  • Spring loaded and X, Y and Z axis fine tune adjustment system for easy and accurate installation
  • Quick-release latch easily activates lock & unlock mode to secure displays in place firmly
  • Anti-theft design offers an additional insurance against theft (a padlock required)
  • Scissor design and compact mounting arms allow for extension in one smooth motion
  • "Click-it" locking feature confirms display is secure through an audible noise

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • ViewZ VZ-XMS Spring Loaded Scissor Video Wall Mount
  • Mounting Hardware
  • ViewZ Warranty
