Vixen Advanced Polaris ALT AZ Mount with TL130 Tripod
See all Vixen items

Vixen Advanced Polaris ALT AZ Mount with TL130 Tripod

SKU: VX25841TL130

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Browse our FAQ

See Terms & Conditions

Vixen Advanced Polaris ALT AZ Mount with TL130 Tripod Specifications

  • Slow Motion Control

    R.A: Wheel and worm gears full circle micro movement
    DEC: Wheel and worm gears full circle micro movement

  • Quick Slewing Motion

    Friction stop motion (adjustable)

  • Wheel Gear

    R.A: 73.5mm / 2.89" in diameter, 144-tooth wheel gear
    DEC: 58.4mm / 2.30" in diameter, 144-tooth wheel gear

  • Worm Gear

    R.A: 11.0mm / 0.43" in diameter, Brass
    DEC: 9.8mm / 0.39" in diameter, Brass

  • Horizontal Axis

    59mm / 2.32" in diameter, Aluminum alloy, with friction stop mechanism

  • Vertical Axis

    59mm / 2.32" in diameter, Aluminum alloy, with friction stop mechanism

  • Number of Bearings

    6 pieces

  • Maximum Loading Weight

    18lbs / 8.16kg, 13lbs / 5.90kg if the motor modules are used

  • Counterweight

    APZ counterweight: 3.6lbs / 1.63kg

  • Tripod Height

    21-45.5" / 533.40-1155.70mm

  • Dimensions

    178 x 258 x 104mm / 7.01 x 10.16 x 4.09"

  • Weight

    8.3lbs / 3.76kg incl. APZ counterweight
    Tripod: 6.6lbs / 2.99kg

  • UPC Code

    811971017726

About Vixen Advanced Polaris ALT AZ Mount with TL130 Tripod

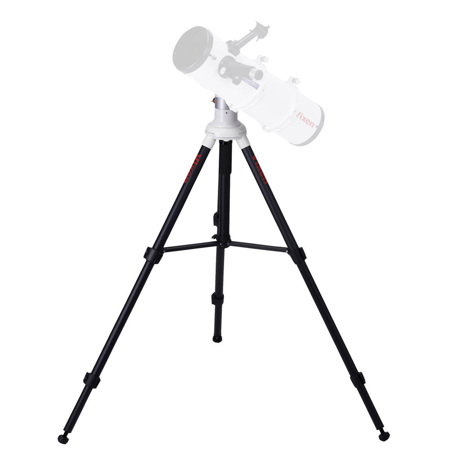

Vixen's newest mount it the APZ, Advanced Polaris Alt Az Mount. With a loading weight of 18 lbs, this new alt az mount is ready for most telescopes. Built on the new Advanced Polaris Mount, Vixen has created an alt az mount that grows with you. This mount is a great friction controlled, slow motion alt az mount. It can also be motorized and used the STAR BOOK ONE hand controller for accurate tracking. Whichever way you use the APZ mount you will be impressed with Vixen's quality and high standards throughout. Shown with Vixen's R130Sf reflector telescope sold separately.

Join VIP PRO

2 Day Delivery on thousands of items!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • Vixen APZ Altazimuth Mount
  • TL130 Tripod
  • Slow Motion Control Knobs
  • Allen Wrench of 3mm on a Side
  • Allen Wrench of 4mm on a Side
  • APZ Mount Instruction Manual
  • Vixen 5 Year Warranty
