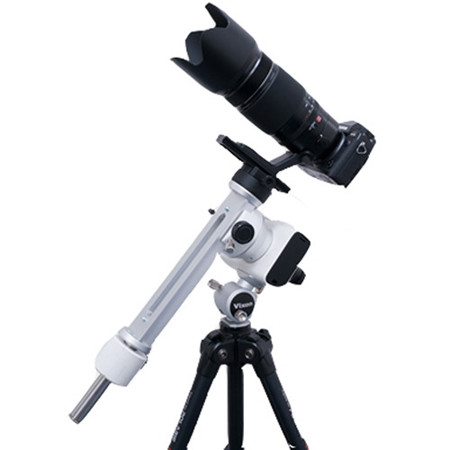

Vixen Heavy Loading Kit for Polarie Tracking Mount, Includes Polarie Multi Mounting Block, Dovetail Bar

This kit has everything you need to start imaging at high magnification with the use of a heavier camera or small telescope. Take amazing images of the universe. It is compromised of the POLARIE Multi Mounting Block (#35522), Dovetail Slide Bar DD (#35525), POLARIE Fine Adjustment Unit (#35519), Quick Release Angle Plate (#35526) Quick Release Panorama Clamp (#35527), Counterweight Bar (#25826) and Counterweight (#25801). Camera, Polarie, Polar Scope and tripod Sold Separately.

Features
• Celestial Tracking, 1/2 celestial tracking, solar tracking, lunar tracking
• Usable in both Northern and Southern Hemispheres

- Polarie Multi Mounting Block -
This accessory for the Polarie Star tracker allows you to mount a Vixen dovetail to your Polarie. This, in turn, enables camera balancing and you can keep your polar scope mounted inside.

The Mulit Mounting Block replaces the camera mounting block, which is originally supplied with the POLARIE Star Tracker. The optional Dovetail Slide Bar DD (#35525) allows photography with heavy equipment in an optimum balance around the rotating axis, maximizing payload up to approx. 14.3 lbs (6.5kg). The construction of the accessory is designed to permanently install the optional POLARIE polar scope PFL II(#35532) for immediate precise polar alignment.

- Dovetail Slide Bar DD -
This plate is designed to mount cameras through ball-head and the like. The new optional Quick Release Panorama Clamp (#35527) or commercially available camera mount (1/4 inch) can be attached on both ends. More precise and stable tracking is possible if the balance around the rotating axis is optimally adjusted upon sliding the plate. Heavy equipment such as a full-format DSLR camera with telephoto lens can be optimally balanced in combination with the optional Supplementary Counterweight Bar (#25826) and Counterweight (#25801)

- Polar Fine Adjustment Unit for Polarie -
The Vixen Polar Fine Adjustment unit can be used to make fine adjustments for you Polarie's polar alignment or any small head. It makes it possible to use polarie on a normal tripod. The fine adjustment setting are +/- 15 degrees. It has counter rotating thumbs screws to make minute adjustments. One rotation of thumb screw is 5.7 degrees. Will mount to a 1/4-20 or 3/8 inch tripod head. It comes with the 3/8 inch adapter and a tool to change them. The top mounting is a quick release 1/4-20.

- Polarie Quick Release Angle Plate -
The Quick Release Angle Bracket is an "L" shaped plate which is used to hold a DSLR camera body both in vertical and horizontal positions. The quick release angle bracket has an advantage over the ball head in stability. With use of this product, the camera can be set closer to the center of gravity and will prevent the camera from moving. This plate is designed to be used with the Quick Release Panorama Clamp. Cameras or telescopes can be attached with 1/4" screw socket.

Attachable Camera Size
The distance specified by a or b, which is from the side of the camera to the 1/4-inch screw socket, can vary from 10mm and 90mm.

- Polarie Quick Release Panorama Clamp -
The quick release panorama clamp has a low profile design that mounts a DSLR camera in the position with a low center of gravity. This product is not usable by itself. It is designed for use in combination with the Vixen dovetail slide bar DD and the Quick Release Angle Plate.

- Supplementary Counterweight Bar -
To use the AP Photo Guider, a camera is attached on one side of the Dovetail Slide Bar PG. In this case the Counterweight is attached on the other side of the Dovetail Slide Bar PG while being attached with the Supplementary Counterweight Bar to balance between the camera and the AP Photo Guider for more stable tracking.

- Advanced Polaris Counterweight -
Machine steeled 1 kg counterweight for Vixen's Advanced Polaris mounts
