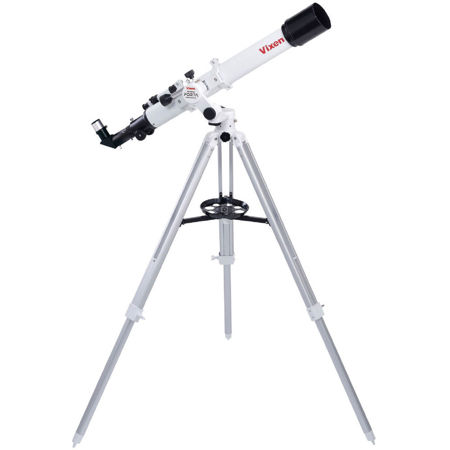

Vixen A70Lf 70mm f/13 Achro Refractor AZ Telescope with Mobile Porta Mount

SKU: VXA70LVF

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

2021-06-30T08:13:40

Rated 1 out of 5

Pure junk.

The scope is a child's toy.

ALVA W.

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Vixen A70Lf Specifications

  • Optical Design

    Achromatic Refractor

  • Aperture

    70mm

  • Focal Length

    900mm

  • Focal Ratio

    f/12.9

  • Coating

    Multi Coating

  • Resolving Power

    1.66 arc sec

  • Limiting Magnitude

    11

  • Light Gathering Power

    100x

  • Finder Scope

    6x24mm Finder
    Field of View 5 Degree

  • Adapter Thread

    42mm/ For T-Ring

  • Visual Back

    31.7mm Push Fit

  • Mount

    Mobile Porta Mount

  • Vertical & Horizontal Slow Motion

    120Tooth Wheel Gears whole circle movement; Friction control system

  • Telescope Attachment

    Dove Tail Plate

  • Dew shield outside diameter

    100mm

  • Load Capacity

    8 lb (3.6kg)

  • Dimensions

    Optical Tube: 33.8 x 3" (860 x 76mm)

  • Weight

    Optical Tube: 4.2 lb (1.9kg)
    Mount: 8 lb (3.6kg) (including tripod)

About Vixen A70Lf

The New Mobile Porta is a variation of Vixen's award winning Porta II Mount. This mount is easier to transport due to its unique multi function fork arm which allows the Mobile Porta to fold much more compactly than its predecessors. At less than 8 pounds this mount is ready to go to all your observing sites.

Your telescope can be moved manually to the right position and then fine tuned with the slow motion controls. The multi function single fork arm folds without the use of tools for easy transport and storage. Setting up your scope in minutes is a simple operation.

The direction of the multi arm can be rotated at an of 15 degree intervals so that you avoid having the telescope impeded by the slow motion handles. Additionally, the vertical slow motion control can move outward.

The Mobile Porta includes all the features of the original Porta II mount such as slow motion handles, friction stop system and removable mount head.

The A70lf / Mobile Porta Package is complete with:
• Vixen A70Lf 70mm f/12.9 telescope
• A smaller 6 power finder telescope that attaches to the main scope to help you center the object
• A 20mm eyepiece for general viewing
• A 6.3mm eyepiece for those really clear nights for high power viewing
• A diagonal Prism that connects the eyepiece to the telescope
• A Dew / Sun shield
• Complete tube rings and dovetail plate to quickly attach the A70Lf to the Vixen Porta II mount
• Mobile Porta Mount with slow motion handles and tray

What's in the box:

  • A70Lf 70mm f/13 Achro Refractor AZ Telescope with Mobile Porta Mount
  • 20mm Eyepiece
  • 6.3mm Eyepiece
  • 6x24 Finderscope with Bracket
  • Erect-Image Diagonal
  • Vixen 5 Year Limited Warranty
