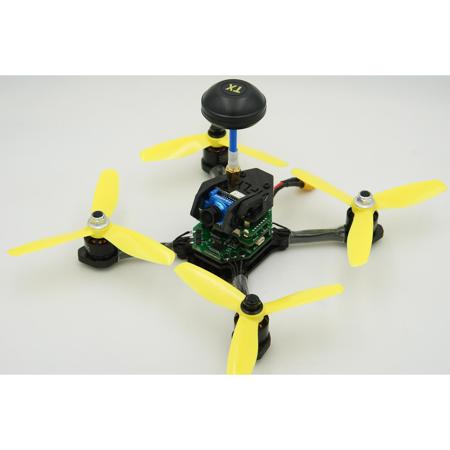

Vifly X150 150mm RTF Mini Racing Drone with Foxeer Arrow Micro CCD Camera, Remote Controller Included

SKU: VYX150RTFPKG

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Shopper : Why Did You Choose This?Joe F : top rated fastest budget race drone

Reviews about this item

Review Summary

Vifly X150 Specifications

Aircraft

Aircraft

Jump to...
  • Remote Controller Mode

    Left Hand Throttle

  • Wheelbase

    150mm (5.91")

  • Remote Controller

    RadioLink T8FB 8 Channels

  • Receiver

    RadioLink R8FM 8 Channels SBUS

  • Flight Controller

    Omnibus F4, CPU 168MHz

  • Firmware

    BetaFlight

  • OSD

    BetaFlight OSD

  • Brushless Motor

    SunnySky 1406-3300KV

  • ESC

    BLHeli-S 20A DShot 600

  • Gyro

    SPI, 8KHz loop speed

  • Propeller

    DAL T4045

  • Battery

    11.1V 850mAh 35C 3S Li-PO / 14.8V 550mAh 35C 4S Li-PO (optional)

  • Battery Socket

    XT30

  • Maximum Flight Time

    12-14 mins(3S) / 12-14 mins(4S)

  • Working Environment

    0 to 40 deg. C (32 to 104 deg. F)

  • Sensor

    1/3" Sony SUPER HAD II CCD

  • Horizontal Resolution

    600TVL

  • Field of view

    150 deg.

Wireless Video Transmitter

Jump to...
  • Output Power

    P01 - 25mW / P02 - 200mW / P03 - 600mW

  • Antenna

    Right-handed circular polarization

  • Antenna Socket

    SMA Male

  • Working Frequency

    5.8GHz

  • Channel

    Group A/B/C/D/E 40 channels

  • Channel (cont.)

    Group A:
    CH1:5658MHz, CH2:5695MHz, CH3:5732MHz, CH4:5769MHz, CH5:5806MHz, CH6:5843MHz, CH7:5880MHz, CH8:5917MHz

    Group B:
    CH1:5740MHz, CH2:5760MHz, CH3:5780MHz, CH4:5800MHz, CH5:5820MHz, CH6:5840MHz, CH7:5860MHz, CH8:5880MHz

    Group C:
    CH1:5865MHz, CH2:5845MHz, CH3:5825MHz, CH4:5805MHz, CH5:5785MHz, CH6:5765MHz, CH7:5745MHz, CH8:5725MHz

  • Channel (cont..)

    Group D:
    CH1:5705MHz, CH2:5685MHz, CH3:5665MHz, CH4:5645MHz, CH5:5885MHz, CH6:5905MHz, CH7:5925MHz, CH8:5945MHz

    Group E:
    CH1:5733MHz, CH2:5752MHz, CH3:5771MHz, CH4:5790MHz, CH5:5809MHz, CH6:5828MHz, CH7:5847MHz, CH8:5866MHz

General

Jump to...
  • Dimensions (LxWxH)

    125 x 125 x 50mm (4.92 x 4.92 x 1.97")
    Battery: 55 x 30 x 30mm (2.17 x 1.18 x 1.18")

  • Weight

    174g (6.14 oz) (Battery excluded)
    Under 250g (8.82 oz) (including battery)

About Vifly X150

150mm Class Frame for 4" Propellers
Vifly X150 adopts the new generation symmetrical X style airframe, light weight and high performance. 150mm size loading with 4" propellers, it is extremely fast! Almost no competitors in this size can achieve this. With many hours beta testing, Vifly X150 prototypes have been tested and recognized by hundreds of drone pilots.

Super-narrow (6mm) & Ultra-thick (5mm) 3K Carbon Fiber Arms
Vifly X150 adopts the narrowest arms in this size that the width is only 6mm. It can minimize drag and improve aerodynamics that you can feel faster respond in every way comparing with other drones with board arms. The 5mm thickness 3K carbon fiber ensures the durability and incredible ability to withstand violent crash.

Lighter than 250g - No UAS Registry Needed
The Vifly X150 weighs less than 250 grams with 4S 550mAh battery, so No UAS registration is required. Though it is a 150mm size quadcopter, the high-end components with 4" props will bring you the same flight experience as 200mm size quads.

Foxeer Arrow Micro CCD Camera
Vifly X150 equipped with Foxeer Arrow Micro CCD camera, 600TVL SONY 1/3" Super HAD II CCD sensor, built-in low voltage alarm, wide dynamic range, excellent image quality with Japanese 2.1mm low distortion lens. It works great for both daylight and low-light environment.

F4 Flight Controller
Vifly X150 adopts the latest generation Omnibus F4 flight controller, with CPU working at 168MHz providing faster processing speed than F3 controller. Coupled with the software of Betaflight, our F4 flight controller brings lower loop times and better flight performance.

SunnySky 1406-3300KV Brushless Motors and 4-in-1 BLHeli-S 20A ESCS
Vifly X150 adopts SunnySky 1406-3300kv brushless motors. The large capacity motors combined with 150mm size makes the drone superbly powerful. The 4-in-1 ESC is soldering free and easy to replace. High 20A current provides more power, DShot 600 provides faster response.

Vifly User-friendly Designs
VFILY X150 keeps the user-friendly designs from our previous models like Vifly R220 M2. LED display to show the battery voltage and video transmission channel. One button switch to change the video channel and output power.

What's in the box:

  • Vifly X150 150mm RTF Mini Racing Drone
  • RadioLink T8FB 8 Channel Remote Controller
  • RadioLink R8FM Receiver (Pre-Installed)
  • Foxeer 1/3" Sony SUPER HAD II CCD 600TVL Camera (Pre-Installed)
  • 25/200/600mW 5.8G Wireless Video Transmitter (Pre-Installed)
  • OSD Module (Pre-Installed)
  • 11.1V 850mAh 35C 3S Battery
  • Battery Charger for 3S/2S Battery Only
  • 2x DAL T4045 Propeller Set
  • Tool Pack
  • Vifly 6 Month Warranty
  • Vifly 3 Month Warranty on Accessories
