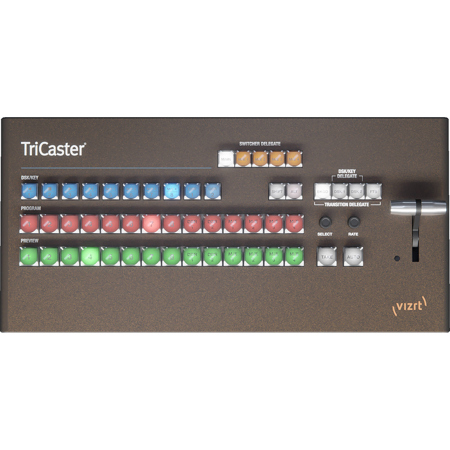

Vizrt TriCaster Mini 4K UHD Control Surface

SKU: VZFG003290R1 MFR: FG-003290-R001
Earn VIP Reward Points

Key Features

  • Elevate your live production with the TriCaster Mini 4K's intuitive control surface.
  • Experience real-time streaming with pristine video quality using NDI inputs.
  • Easily manage up to 8 PTZ cameras via serial or network for dynamic shots.
  • Integrate 2 Skype TX calls seamlessly, enhancing interactive broadcasting.
  • Create captivating visuals with integrated LiveSet technology and virtual sets.
  • Automate workflows using macros, streamlining your live video production process.
See More Product Details
Special Order?Estimated to Ship: 08/20/2025
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$119.99

3 Year

$159.99

4 Year

$191.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Vizrt TriCaster Mini 4K Specifications

  • Network Video Input

    8x IP video inputs via NDI, resolution-independent, NDI inputs supporting video input in any combination of standard formats, resolutions, and frame rates
    2160p 59.94, 50, 29.97, 25
    1080p: 59.94, 50, 29.97, 24
    1080i: 59.94, 50
    720p: 59.94, 50, 29.97, 25
    SD: 59.94, 50, 25

  • PTZ

    Support for Pan-TiSupport for up to 8 simultaneous Pan-Tilt-Zoom (PTZ) robotic cameras via serial and network protocols, including RS232, RS422, and IP, with integrated controls and preset systemlt-Zoom (PTZ) robotic cameras via serial and network protocols, including RS232, RS422, and IP, with integrated controls and preset system

  • Skype TX

    Native support for up to 2 simultaneous Skype video call inputs via Skype TX software integration, including tally and Talk Back communication

  • Network Video Output

    4x independent IP video mix outputs via NDI

  • Stream Output

    2x streaming video output, independently configurable, with simultaneous stream archive

  • Monitor Outputs

    4x mini display port with output adapters
    3x of the outputs support multiviewers using standard display resolutions

  • Mix/Effect Buses (M/E)

    4x M/E buses supporting video re-entry
    1x Mix/Effect channel per bus with support for up to 2 sources
    2x KEY layers per bus

  • DSK Channels

    2x DSK channels

  • Media

    4x media players
    2x DDR
    2x GFX
    1x Sound
    15x media buffers
    5x animation buffers
    10x graphic buffers

  • Keyers

    Integrated LiveMatte chroma keying technology on all source channels and M/E buses
    8x input keyers
    2x media player keyers
    4x M/E keyers
    15x buffer keyers

  • COMP

    Integrated video composition engine on the switcher and each M/E bus to create, store, and apply layer configurations and DVE-style motion sequences
    16x configurable COMP presets per bus

  • Virtual Sets

    Integrated LiveSet technology with 30+ live virtual sets and box effects included

  • DataLink

    Integrated DataLink technology enabling real-time, automated data input from internal and external sources, including webpages, spreadsheets, scoreboards, databases, RSS feeds, watch files, XML, CSV, ASCII and more

  • Macros

    Record, store, edit and automate commands and user-configured operation sequences
    Attach to control panel buttons, keyboard shortcuts, MIDI and X-keys buttons
    Supports control via web-based interface

  • Recording

    4x recording channels from either NDI inputs or Mix outputs
    Records and retains alpha channel data

  • Signal Monitoring

    Integrated waveform and vectorscope, full field rate with digital calibration, color preview and support for ITU-R Rec. 709

  • Storage

    Capacity varies by format, resolution and file specification
    Supports recording to external storage via USB 3.0

  • Grab

    Grab full-resolution, deinterlaced still images from external video sources and outputs

  • Export

    Export video and image files to social media, FTP, local or external volumes, and network servers, with optional transcoding

  • Audio Mixing

    Integrated multi-channel audio mixer with support for stereo audio, and DSP's

  • Local Audio Input

    1x 1/4" (6.35mm) balanced mic
    2x 1/4" (6.35mm) balanced line

  • Local Audio Output

    2x 1/4" (6.35mm) balanced line
    1x 1/4" (6.35mm) stereo headphones jack

  • Network Audio

    Native support for network audio input and output via NDI
    Embedded audio supported for all NDI input and output video signals
    Integrated support3 for Dante networking protocol from Audinate

  • Supported Media File Formats

    Import, store, and play back multimedia files, with optional transcoding, including:
    Video: AVI, DV, DVCPro, DVCProHD, FLV, F4V, H.263, H.264, MOV, MKV, MJPEG, MPEG, MP4, WMV, WebM, and more
    Image: PSD, PNG, TGA, BMP, JPEG, JPEG-XR, JPEG2000, EXR, RAW, TIF, WebP, and more
    Audio: AIFF, MP3, WAV, and more

  • Processing

    Video: Floating Point YCbCr +A 4:4:4:4
    Audio: Floating Point, 96 kHz

  • Latency

    Processing Latency: -1.0-1.5 frames
    Practical Throughput Latency: 4 frames

  • A/V Standards

    HD-SDI video conforms to SMPTE 292M SD video conforms to SMPTE 259M and ITU-R BT.656 Analog audio levels conform to SMPTE RP-155

  • Tally

    Support for network tally via NDI

  • MIDI

    Support for standard MIDI protocol enabling third-party device control

  • System Drive

    250GB SSD

  • PoE

    4 PoE+ (802.3at) Ports
    60 Watt power capability

  • NIC

    2x 1 Gigabit NIC

  • System Physical

    System chassis, including adjustable cable retention bracket

  • Dimensions

    4.6 x 9.2 x 7.9" (11.7 x 23.4 x 20.1cm)

  • Weight

    9 lbs (4.1kg)

About Vizrt TriCaster Mini 4K

Enhance your storytelling capabilities with the TriCaster Mini 4K UHD Control Surface, a revolutionary tool designed to bring your narratives to life with high-quality motion graphics, virtual sets, and dynamic effects. This compact and lightweight device offers a plug-n-play NDI feature, allowing you to set up and start broadcasting in under five minutes, making it an ideal choice for on-the-go productions.

The TriCaster Mini 4K UHD Control Surface offers a unique feature called Live Link, which enables users to integrate web page elements directly into their productions, eliminating the need for third-party applications. This feature enhances production agility and freedom, allowing you to incorporate graphics, images, and videos from various web sources seamlessly.

Experience true resolution independence with this device, capable of producing programs in your chosen resolution, up to 4K UHD. This ensures your audience enjoys an immersive viewing experience marked by exceptional clarity and detail.

The TriCaster Mini 4K UHD Control Surface simplifies IP connectivity with its NDI feature, eliminating the need for bulky video cables. This allows you to connect to a wide range of NDI-enabled products and third-party IP video products using a single network cable for video, audio, key, control, tally, and in some cases, power over Ethernet.

The device also features Skype TX Integration, allowing you to conduct two simultaneous live Skype video calls with any remote guest. This feature, exclusive to TriCaster systems, delivers broadcast-quality video and balanced audio, making it perfect for production-ready conversations, interviews, and reports.

With the TriCaster Mini 4K UHD Control Surface, you can deliver content to all screens simultaneously. It supports various formats, resolutions, aspect ratios, and frame rates, enabling you to switch, stream, and record with ease. Plus, it allows you to share real-time updates and on-demand content across your social media platforms, complete with comments and hashtags.

The device also offers multichannel audio mixing, real-time monitoring, and multiviewers, providing you with comprehensive audio integration and a fully adjustable single-screen or multi-screen monitoring environment.

The TriCaster Mini 4K UHD Control Surface is equipped with revolutionary automation and teleprompter features that allow you to script the entire production in your favorite word processor. This feature, combined with the device's software control panels, enables virtually anyone to run quality and consistent productions without prior experience or training.

Finally, the device features world-class live virtual sets, built-in video players, unlimited recording and replay capabilities, and a complete production engine, making it a comprehensive solution for modern workflows. With native support for 2160p video in frame rates up to 60 frames per second, the TriCaster Mini 4K UHD Control Surface is the ultimate tool for true 4K UHD production.

Vizrt TriCaster Mini 4K Features

  • Take it anywhere, it's small and light weight
  • Set up and get started in 5 minutes. Don't believe us? Check this out
  • Plug-n-Play NDI, no external networks. Add your NDI device and its live
  • 2 Spark Plus IO input modules directly connect HDMI devices instantly as NDI sources
  • 4 NDI connections with PoE makes video, audio, tally, power and control as easy as plugging in an ethernet cable
  • 8 live video inputs, supporting any combination in resolutions up to 4K UHD
  • Stream to all your favorite social channels with the push of a button
  • 2 simultaneous live Skype inputs bring guests in from anywhere in the world
  • Grab a couple of cameras, including your iPhone, and you're on your way

Warranty Information

This product has a limited warranty of 12 months.

Key Features

  • Elevate your live production with the TriCaster Mini 4K's intuitive control surface.
  • Experience real-time streaming with pristine video quality using NDI inputs.
  • Easily manage up to 8 PTZ cameras via serial or network for dynamic shots.
  • Integrate 2 Skype TX calls seamlessly, enhancing interactive broadcasting.
  • Create captivating visuals with integrated LiveSet technology and virtual sets.
  • Automate workflows using macros, streamlining your live video production process.

What's in the box:

  • Vizrt TriCaster Mini 4K UHD Control Surface
  • 2x PoE Input Module
  • Vizrt 1 Year Limited Warranty
