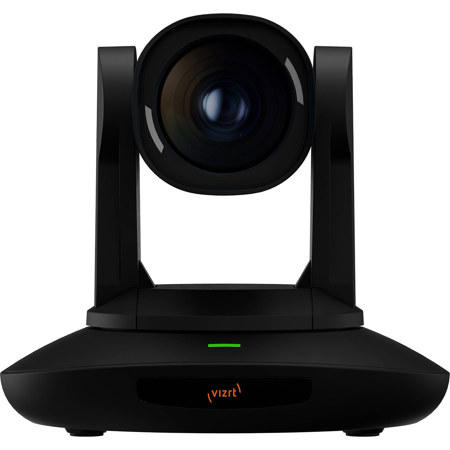

Vizrt PTZ3 PLUS 4K UHD NDI|HX3/3G-SDI Auto-Tracking 30x PTZ Camera Black

Vizrt PTZ3 PLUS cameras
Connect, capture, and create beautiful live productions and presentations with two PTZ cameras built for Broadcast AV

Offering exceptional HD picture quality, 30x optical zoom, great low-light performance, and phantom-powered audio, the PTZ3 PLUS camera combine quality hardware with intelligent production-enhancing features, including AI presenter tracking and the world's first FreeD tracking data embedded via NDI|HX. All in a sleek, discrete body that blends into any space.

Whether you're live streaming, producing a corporate town hall, capturing live events, or anything else that demands high quality audio and video, PTZ3 PLUS cameras have you covered. NDI connectivity means the camera simply appears on your network for easy setup, and configuration of augmented reality/virtual reality solutions like Viz Virtual Studio Go is now easier than ever with FreeD tracking data embedded in every frame over NDI|HX. You'll be making broadcast-quality productions in no time!

Choose your resolution, zoom, and color
The PTZ3 PLUS cameras are available in black and white colorways and both provide the same software functionality. Your choice simply comes down to the resolution, zoom, and color that you need.

Connect
Cover all bases with NDI at its core, 3G-SDI and HDMI outputs, and RS232 control. Simplify setups with a single ethernet cable providing NDI audio and video plus PTZ control, tally, power, and the world's first FreeD-over-NDI|HX.

Vizrt PTZ cameras simply appear on the network and can immediately be built into any workflow with ease, while native NDI|HX3 compatibility delivers broadcast quality video with super low latency - using a fraction of the bandwidth of full NDI.

Combined with Viz Connect Tetra's NDI Bridge functionality, PTZ3 PLUS cameras can be deployed anywhere in the world and automatically connect to your network for the simplest remote setups.

Capture
Capture presentations and live productions in crystal clear clarity with HD resolutions, with wide aperture lenses, large sensors, and optical low pass filters giving excellent low light performance and depth of field control.

Intelligently track presenters automatically with AI presenter tracking, so talent is always in shot and exactly where you want them to be, with multiple subject framing choices and aspect ratios to choose from.

Connect to any powered and non-powered audio source with phantom-powered mini XLR input for professional audio capture with microphones, mixers, amplifiers, and soundboards.

Create
Create content easily by connecting and controlling your PTZ3 PLUS camera to any TriCaster, CaptureCast, Viz Virtual Studio Go, or any other SDI- or NDI-enabled device.

Adjust subject tracking using macros on your TriCaster, while silky smooth ease-in and ease-out movements deliver seamless, smooth transitions for a natural, superior-quality production without jittery or stuttering movements.

Create exciting audience experiences with easier than ever setup of AR/VR systems like Viz Virtual Studio Go with embedded FreeD camera tracking data over NDI|HX.

Camera Features

AI presenter tracking
Keep talent in shot automatically and eliminate the need for manual camera adjustments with AI presenter tracking, so you can focus on delivering seamless and dynamic presentations and live productions. Initial face detection intelligently tracks presenters even when they face away from the camera, and blackboard detection locks the camera in place during presentations for more enjoyable audience experience. Presenter memory ensures the camera won't switch even if someone else enters the frame - unless you want it to, with tracked target switching making it easy to quickly switch between presenters.

Professional audio with phantom power to mini XLR
The phantom powered mini XLR port makes it easy to connect any powered or non-powered microphone, audio source, or sound mixer to ingest audio in the same NDI|HX stream, so your productions sound as good as they look. Enjoy wider choice and less setup with the option to power +48v microphones with no amplifier or additional cabling needed. And never worry about accidentally powering non-powered mics with two-step confirmation needed to turn phantom power on.

Embedded FreeD camera positioning metadata over NDI|HX
Unlock new creative possibilities and easily create immersive experiences that captivate your audience with the world's first PTZ camera offering FreeD-over-NDI support. Embedding the FreeD protocol's precise camera tracking information - including position, rotation, and lens data - into every frame through NDI|HX further simplifies the setup of AR/VR systems like Viz Virtual Studio Go.

Partnering this with AI presenter tracking and pre-configured lens files, broadcast-quality AR/VR graphics are now within reach of every content creator. All through a single ethernet cable.

Intuitive control at your fingertips
A simple and intuitive software control panel makes it easy to setup, configure, and adjust your PTZ3 PLUS cameras with pinpoint precision. Manage video sources, audio settings including phantom power, AI tracking, and device administration from one panel.

Discrete design
Focus on the picture, not the camera. Vizrt PTZ3 PLUS cameras keep branding to a minimum, without losing their Vizrt personality. Available in black and white variants with branded swappable front IR panels ensure PTZ3 PLUS cameras blend into any production, corporate, medical, or academic environment, whichever way you mount it.

Silky smooth movement
PTZ3 PLUS cameras offer smooth movement between camera presets with fine ease-in and ease-out movements. Ultra quiet motors make it equally at home in quiet and loud environments.

NDI at its best
NDI|HX3 puts you in control, striking the perfect balance of quality and efficiency with zero compromise. NDI|HX3 offers the quality and low latency of full NDI without the heavy bandwidth usage.

AI presenter tracking
PTZ cameras are found in more places than ever, but often without dedicated camera operators, or inexperienced operators. Integrated presenter tracking AI removes the headaches of camera setup and manual tracking, to ensure talent is always in shot. Simply use the software UI's "Tracking" tab to easily fine-tune your tracking options, including:

Initial face detection
Intelligently tracks presenters even when they face away from the camera; for example, if they're presenting from a virtual or physical screen and turn to face it.

Presenter memory and tracked target switching
Presenter memory ensures the camera won't switch even if someone else enters the frame - unless you want it to, with tracked target switching making it easy to switch between presenters. Choose from switching left, right, or to first tracked.

Blackboard detection
Intelligent blackboard detection identifies if the presenter has entered a "presentation area", e.g. with a whiteboard/blackboard, and will lock in place as the presenter moves around it for a more enjoyable viewer experience.

Adjustable framing ratios
Perfectly frame your talent by choosing from six framing ratios; 1/6 up to 1/20 ratios.

Subject framing
Choose whether your presenter is framed to the left, center, or right of the frame.

Tracking limit windows
Keep the camera within a set range by setting a tracking limit window with top left and bottom right frames. This helps ensure the camera doesn't track off-set or break a green screen effect.

Home position time out
Decide when the camera stops attempting to track a presenter after they leave the range of the PTZ3 PLUS camera or your set tracking window and return to a default home position. Choose from 0.5 to 10 seconds timeout, after which the next presenter to enter the frame becomes the next tracked presenter; ideal for lecture, meeting, and event capture.

FreeD-over-NDI|HX
FreeD is a commonly used protocol that sends the axis of camera movement - position (X, Y, Z axis), rotation (pan, tilt, roll), and lens data (focus and zoom) through UDP packets over a network. It is often used to integrate AR graphics into live broadcasts, such as Viz Virtual Studio, and usually requires its own cable to transmit this information, making camera setup with XR/AR systems more complex. With the PTZ3 PLUS, FreeD open-source metadata is embedded in every frame within NDI|HX, radically simplifying the setup of solutions like Viz Virtual Studio Go out of the box. Combined with pre-configured lens files, broadcast-quality AR/VR graphics are now within reach of every content creator.

Professional phantom-powered mini XLR audio
Use the phantom-powered Mini XLR connection in addition to the standard line-in. Delivering clean, professional-level audio directly from the camera into the NDI network, the mini XLR feature offers an array of connectivity options. When combined with NDI Audio Direct, the XLR audio connects to NDI receivers and virtually any audio software providing unprecedented levels of creative flexibility.

Phantom power delivers +48v to powered microphones and requires a two-step confirmation in the UI to avoid accidentally sending power to non-powered mics.

Multicast Mode
Optionally allow multiple destinations to receive video from your NDI HX PTZ Camera without individual point-to-point connections to conserve network bandwidth.
