Warm Audio WA-2A Single-Channel Tube Optical Compressor

SKU: WA2A MFR: WA2A
Earn VIP Reward Points

Key Features

  • Achieve classic tube compression with the Warm Audio WA-2A optical compressor for rich, warm tones.
  • Use this dynamic processor on vocals, bass, and drums for smooth, vintage-style sound shaping.
  • Get precise control with the WA-2A's Kenetek T4B module, offering legendary optical attenuation.
  • Experience superior sound quality with low THD, ensuring clean, professional audio processing.
  • Enjoy versatile signal processing with switchable 115/230V power for global studio use.
  • The WA-2A's tube circuitry delivers a musical, responsive compression, enhancing any recording.
See More Product Details
Special Order?Estimated to Ship: 08/24/2025
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$119.99

3 Year

$154.99

5 Year

$269.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Accessories
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Warm Audio WA-2A Specifications

  • Balanced Input

    Line level, transformer: 600Ohms impedance pin 2/tip=positive, pin 3/ring=negative, pin 1/sleeve=ground

  • Balanced Output

    Line level, transformer: 600Ohms impedance pin 2/tip=positive, pin 3/ring=negative, pin 1/sleeve=ground

  • Frequency Response

    +/- 1dB, 15Hz to 20KHz

  • Maximum Gain

    +40 dB +/-1dB

  • Maximum Peak Reduction

    -40 dB +/-3dB

  • Input Level

    +16 dB maximum

  • Output Level

    +10 dB nominal, +16 dB maximum

  • Distortion

    Less than 0.1% THD at +/-10 dBm

  • Noise

    -74dB

  • Attack Time

    10 milliseconds

  • Release Time

    0.06 seconds for 50% release; 0.5 to 5 seconds for complete release

  • Tube Compliment

    2x 12AX7, 1x 12BH7, 1x 6P1 (compatible with 6aQ5, 6005 and6N1N)

  • Optical Attenuator

    Kenetek T4B module (socketed) (compatible with T4A, T4B andT4C modules per standard wiring configuration to standard octal header

  • Power

    115/230 volts (switchable), 50/60 Hz, standard IEC 3 conductor cord

  • Fuse Compliment

    1x 250v, 1amp fast-blow type fuse

  • Dimensions

    19" Rackmount chassis, 2U. 19 x 7 x 3.5" / 482.60 x 177.80 x 88.90mm

  • Weight

    12lbs / 5.44kg

  • UPC Code

    638142859097

27 Accessories for Warm Audio WA-2A Single-Channel Tube Optical Compressor

  • All Accessories (27)
  • Cases, Bags & Sleeves (1)
  • Cables & Adapters (25)
  • Bags & Cases (1)

About Warm Audio WA-2A

From the revered halls of recording studios to the intimate spaces of home production setups, the WA-2A Single-Channel Tube Optical Compressor stands as a testament to the enduring quality of analog sound. Warm Audio has meticulously crafted this unit to deliver the unparalleled articulation, depth, and responsiveness that only high-quality analog gear can provide. The WA-2A's ability to enhance the bottom-end presence and top-end detail of audio signals is nothing short of astounding, setting a new standard for professional-grade sound compression.

The WA-2A is not just a piece of equipment; it's a gateway to the sonic excellence of the classic 2A-style optical compressor, renowned for its warm, forgiving, and fluid qualities. This compressor effortlessly handles a diverse range of audio sources, from the dynamic subtleties of vocals to the robust energy of bass lines, all while maintaining the integrity of the original sound.

At the heart of the WA-2A's reliable and durable design lies a fully discrete signal path, featuring transformer-balanced, high-voltage circuitry. The unit boasts premium-grade CineMag USA Transformers at both the input and output stages, ensuring pristine signal integrity and a rich tonal balance. The innovative use of a USA-made Kenetek opto attenuator further contributes to the compressor's exceptional dynamic control and sonic purity.

The WA-2A is equipped with four vacuum tubes: two Tung-Sol 12AX7s, one 12BH7, and one 6AQ5, each chosen for their high-quality performance and contribution to the compressor's warm and rich sound. These tubes are conveniently socketed, allowing for easy replacement or experimentation with different opto-cells, adding a layer of customization to the user experience.

Professional audio engineers and musicians will appreciate the WA-2A's variable pre-emphasis feature, which provides high-pass filtering options for compression, tailoring the response to suit various recording scenarios. Additionally, the unit offers stereo-link capability for coordinated compression across two channels, making it a versatile tool for both studio and live environments.

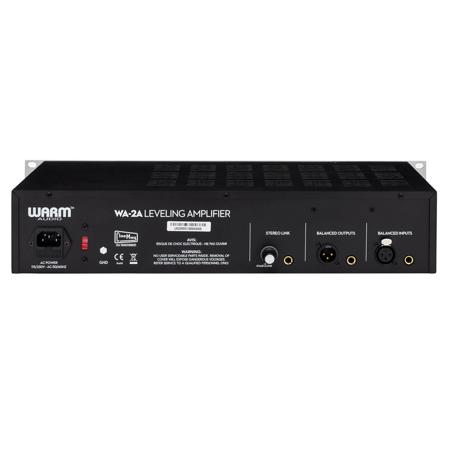

Connectivity is seamless with XLR and TRS balanced line-level inputs and outputs, each with a 600-ohms impedance, accommodating a wide range of professional audio equipment. The intuitive metering displays both dB gain reduction and dB output, allowing for precise monitoring of the compression effect.

The WA-2A Single-Channel Tube Optical Compressor is a testament to Warm Audio's commitment to making high-end audio accessible. By incorporating premium components and innovative design, Warm Audio has created a compressor that not only meets the demands of modern production but also brings the timeless character of analog sound within reach of more artists and engineers than ever before.

Warm Audio WA-2A Features

  • High-quality single-channel tube optical compressor for professional audio recording & production
  • Features transformer-balanced, high-voltage, opto-tube circuitry for warm, rich sound
  • Equipped with premium-grade CineMag USA Transformers and USA-made Kenetek opto attenuator
  • Utilizes four premium Tung-Sol and Electro-Harmonix vacuum tubes: 2x 12AX7, 1x 12BH7, 1x 6AQ5
  • Offers variable pre-emphasis for compression high-pass filtering and stereo-link capability
  • Provides XLR and TRS balanced line-level inputs and outputs with 600-ohms impedance

Product Documents

User Manual

Key Features

  • Achieve classic tube compression with the Warm Audio WA-2A optical compressor for rich, warm tones.
  • Use this dynamic processor on vocals, bass, and drums for smooth, vintage-style sound shaping.
  • Get precise control with the WA-2A's Kenetek T4B module, offering legendary optical attenuation.
  • Experience superior sound quality with low THD, ensuring clean, professional audio processing.
  • Enjoy versatile signal processing with switchable 115/230V power for global studio use.
  • The WA-2A's tube circuitry delivers a musical, responsive compression, enhancing any recording.

What's in the box:

  • Warm Audio WA-2A 2U Rackmount Tube Optical Compressor
  • External Power Supply
  • Warm Audio 1 Year Limited Warranty
