Wacom DTU-1031AX Specifications

General

General

Jump to...
  • Stand Inclination

    18 Degree or flat

  • Power Supply

    USB bus power: 5 VDC

  • Power Consumption

    5W maximum

  • Communication Interface

    USB 2.0 High-Speed

  • Supported OS (Driver)

    Windows 10 / 8.1 / 7 (32-bit, 64-bit)
    Mac OSX 10.12 or later

LCD Display

Jump to...
  • LCD Display Type

    TFT

  • Screen Size

    10.1"

  • Cover Glass Surface

    Tempered glass

  • Aspect Ratio

    16:9

  • Native Resolution

    1024 x 600 pixels

  • Video Input

    USB 2.0 High-Speed (Common with Communication IF)

  • Viewing Angles (horizontal/vertical)

    140 Degree (70/70) / 120 Degree (60/60) (typical)

  • Display Colors

    16.7 M colors

  • Luminance (Brightness)

    0.13 cd/in 2 / 200 cd/m 2 (typical)

  • Contrast Ratio

    500:1 (typical)

Tablet and Pen

Jump to...
  • Technology

    Electromagnetic Resonance (EMR)

  • Active Area Size

    8.8 x 4.9" (223 x 125mm)

  • Coordinate Resolution

    0.01 mm/point (2540 lpi)

  • Accuracy

    +/-0.02 in / +/-0.5 mm (center)

  • Report Rate

    200 points per second

  • Pressure Levels

    512

  • Encryption

    AES 256 / RSA 2048

  • Reading Height

    0.2 in or more / 5 mm or more (center)

Miscellaneous

Jump to...
  • Pen Holder

    Integrated pen compartment, pen holder

  • Security Lock Slot

    Yes

  • Mounting System

    VESA 2.95" (75mm)

  • Drivers

    Wacom driver recommended (Works also as standard HID without Wacom driver)
    MCT driver required

Battery

Jump to...
  • Battery Info

    Required, Included

  • Battery Material

    -

  • Battery Quantity

    1

  • Battery Type

    -

Physical

Jump to...
  • Dimensions (W x H x D)

    12.2 x 8.5 x 0.6" (310 x 217 x 14mm)

  • UPC Code

    753218986078

About Wacom DTU-1031AX

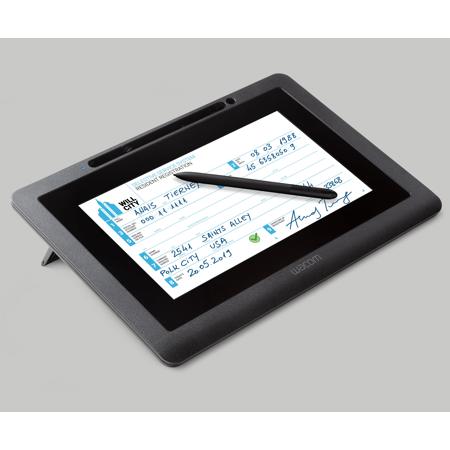

The DTU-1031AX Pen Display is our most economical device for viewing, annotating and signing full size documents electronically. It's ideal for organizations that need a compact device to let customers read and sign documents on screen.

The DTU 1031AX is easy to integrate into kiosk or POS environments with minimal effort and clutter. It's also comfortable and intuitive for people to use in hand, or lying flat on a counter.

In addition, when not in document mode, the DTU-1031AX can display slideshows or advertising videos. This helps organizations run promotions and up-sell with minimum effort and cost.

With its 10.1" color LCD screen, the Wacom DTU-1031AX is the economical pen display solution for corporate or institutional customers who require a compact device for managing full-size documents electronically.

Operating as a pen-enabled LCD display, its small footprint and single USB cable enable easy integration into standard IT infrastructure elements, such as POS systems

Key Features & Benefits

Optimal user comfort with the 10.1", 1024 x 600 resolution, color LCD panel that allows easy document viewing and signing

Secure transactions enabled by advanced AES256/RSA2048 encryption

Unique hardware ID (UID) to identify the exact unit used for any transaction

Minimal installation clutter with a single USB cable that supplies power and data, minimizing clutter at the counter or point-of-sale

Highly accurate signatures and writing with the patented Wacom cordless and battery-free pen, featuring 512 levels of pressure sensitivity

Flexible working position via a slim profile that allows the device to be used flat on the counter, or at an angle with the integrated stand. VESA mounting holes allow for mounting options or the use of third-party arms and stands

Kensington Security Slot to secure the unit when needed

Outstanding durability via the scratch-resistant hardened cover glass that provides easier viewing in different lighting conditions

Wacom DTU-1031AX Features

  • Optimal User Comfort
  • Secure Transactions
  • Unique Hardware ID
  • Minimal Installation Clutter
  • Highly Accurate Signatures and Writing with the Patented Wacom Cordless and Battery-free pen
  • Flexible Working Position
  • Kensington Security Slot
  • Outstanding Durability

Key Features

  • Optimal User Comfort
  • Secure Transactions
  • Unique Hardware ID
  • Minimal Installation Clutter
  • Highly Accurate Signatures and Writing with the Patented Wacom Cordless and Battery-free pen
  • Flexible Working Position

What's in the box:

  • DTU-1031AX 10.1" Interactive Pen Display
  • Cordless Battery Free Pen
  • Nylon Tether (19.7")
  • USB Cable (9.84')
  • 5x Extra Pen Nibs and Nib Remover
  • 4x VESA Mounting Screws
  • Wacom 3 Year Limited Warranty
