Review Summary
128mm (5.04")
DEVO 7
DEVO-RX713
FCS-F210 (F3D)
TX5825 (FCC)
F210 OSD
WK-WS-28-014A (CW/CCW) KV2500
F210 3D (CW/CCW)
14.8V 1300mAh 40C 4S Lithium-Polymer
8-9 minutes
About 5 minutes
-10 to 40 deg. C (14 to 104 deg. F)
5.8GHz Wireless
4 channels
-200mW
700TVL
PAL/NTSC
1.0Vp-p/75Ohms
DC 12V
ARM micro computer system
2.4GHz (DSSS)
-5dBm-20dBm
8x 1.2V NiCard or 8x 1.5V AA dry batteries
=170mA
-135 to +90 deg.
-45 to +45 deg.
-45 to +45 deg.
7.4V-28V (recommend 11.1V / 3S)
0.02 deg.
Aircraft: 182 x 182 x 103mm (7.17 x 7.17 x 4.06")
Gimbal: 114.3 x 97.5 x 106.6mm (4.50 x 3.84 x 4.20")
Aircraft: 370g (13.05oz) (Battery excluded)
Gimbal: 188g (6.63oz) (without camera)
796201580730

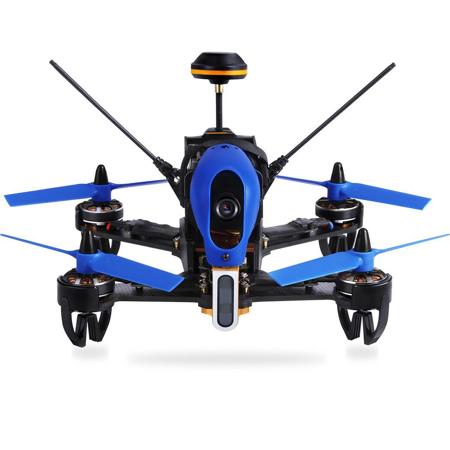

Professional Racer
Designed for racing, with the fast speed and passion, F210 3D Edition gives you incomparable flight enjoyment.
Receiver
The receiver has been optimized to improve the speed of response even faster than before, RX response 5 ms, 4 times faster in speed.
Flight Control
Flight Control adopt the latest F3D flight control system, it's design for providing a high-performance flying experience to player, it has a proven sensor algorithms, while providing unparalleled high performance experience, the use of a new generation of CPU concentrating all design onto a lightweight flight control, F3D flight control system will give your aircraft all the functionality required, whether you are doing FPV competitions, aerobatics, aerial photography, it will be perfect. Player can also adjust parameters according to their needs.
Brushless ESC
Brushless ESC (ESC), small size, high efficiency, full-featured, light weight, easy to install, good stability, high cost, it has many years of experience in ESC manufacturing and high-quality technical support services, by optimizing not only can improve the positive and negative acceleration, but also improve the highly resistant of current capability and better capability of resisting disturbance, greatly reduce the possibility of loss of control. Let F210 3D Edition become more stable and can break the routine play in racing flight.
Battery
Based on many years of experience in structural design. The battery of F210 3D edition with super capacity has high rate discharge performance, Optimized LiPo electric core and TX76 seamless interaction make the flight time more longer and the flight more safe.
OSD
F210 3D edition with OSD brings you more novel and convenient interactive experience. Optimized OSD, Lock/Unlock, Low battery indication, Horizon line and Signal receiver alarm functions. It's much easier to fly a racer with Optimized OSD.
F210 3D Edition craft and design
Breakthrough design makes F210 3D Edition essentially improved. With a new bow body design and carbon fiber material, it has superior ruggedness and anti-drop ability. Though improved small details , it will definitely give you more satisfaction Axis equidistant design ensures the gravity center of the aircraft in the middle, which makes the flight more stable and turning agiler. Motor protection cover makes flying safer.
Remote Control
The classic remote controller DEVO 7 has sensitive joystick and buttons, brings better control experience and human - computer interaction The ergonomic contour design makes it convenient to use. Classic outer design, more humane control design. Adopting 2.4GHz direct sequence spread spectrum technology (DSSS) the Devo 7 can match frequency and assign ID automatically. Also the Devo 7 has customizable wireless copy function.
Standard equidistant axis design
Standard axis equidistant design, independent research and development. Better agility and flexibility, faster and easier to fly.
Demanding flight support
With Brushless motor plus guard landing cushion frame design the F210 3D edition passed various rigorous reliability tests, including drop test crash test bending resistance test high and low temperature humidity test and etc. These tests show unprecedented racer's quality and guarantee safe flight.
Modular design to break stereotypes
A combination of different modules enclosed modular design F210 3D edition is safe and anti-crash, easy to install and disassemble. With the latest F3 Flight system, the professional speed controller and 5.8G image transmission the players set the speed freely according to their needs. By selecting and combining modules, the player can DIY the F210 3D Edition to different products, which can need the different demands of various players.
Personalized setting
Players can set the flight control parameters according to their needs. The F3 flight controller, provide a platform for the experts from worldwide to exchange ideas.
Mushroom antenna
Ultra-long transmission range, real-time obtain the flight status and flight data, transmission distance over 800 meters, even in the FPV flight, the screen effect is very smooth.
Anti-collision and ruggedness
The bow design, based on anti-collision and anti-drop mechanics, reduce the impact of surface damage to a minimum, ensure the safety of normal flight.
Night Vision HD Camera
The camera has one million pixels, high-definition night vision lens and high-performance sensors, its photosensitive sensors can automatically adjust according to the brightness of light. When in dark places, the chip can easily switch to infrared surveillance mode to ensure the aircraft traverse normally. There is no restriction to the light, so the players can fly the racer at daytime or at night.
Freely adjustable angle
In manual mode, the player can freely adjust the angle of the camera according to their needs. It is easy and convenient.
120deg. super vision lenses, clear and bright picture quality
In pursuit of larger vision and clearer pictures, they adopt night vision camera lens which has a large view, its framing angle up to 120deg. and more images in visual. So in the big scenes and special expressiveness angle the camera will give you strong visual impact and make the flight more passionate. G-3D
G-3D gimbal is a 3-axis gimbal system designed for iLook and GoPro, with advantages of light weight, high precision and excellent stability.
Easy installation
Easy to install, plug and play, convenient and faster.
High precision
Easy to operate, more stable in aerial photography, perfectly support iLook, iLook+, GoPro3, GoPro3+ camera.
Smart design
Aluminum processing, with features of high precision and light weight.
Brushless motor control
Brushless motor is designed specially for G-3D, with the latest attitude control system, it can rectify in time the flight attitude when shooting pictures and make images more stable.
High precision control system
The latest attitude control system, can avoid greatly the shaking phenomenon when shooting pictures and achieve the best effects of images.
Upgrade online
It can support free online program upgrading and make a more secure flight.
