Wagan SlimLine 250W 12 VDC to 115 VAC Power Inverter

SKU: WAG3714

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

2022-10-11T09:17:31

Rated 5 out of 5

Awesome

Great product seems to work good so far

BOBBIE B.

2019-09-19T06:21:57

Rated 5 out of 5

Exelent

Esta excelente lo recomindo

FELIX R.

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Wagan SlimLine Specifications

  • TrueRated Power

    250W

  • Surge Power

    500W

  • AC Output

    115V

  • Frequency

    60Hz

  • Socket Type

    U.S. standard 3-prong (2x)

  • USB Power Ports

    (1x) 5V, 2.1A

  • Maximum Efficiency

    88%

  • Output Waveform

    Modified sine wave

  • Overload Protection

    Automatic shutdown

  • Overvoltage Shutdown

    15.5V +/-0.5V DC

  • Overheating Protection

    Cooling fan with automatic shutdown

  • Cooling Fan

    Thermally Controlled

  • DC Input

    11-15V

  • DC Cable

    3' (36"), 10AWG (Included)

  • Short Circuit and Reverse Polarity

    (Protection) Internal fuses

  • Low Battery Alarm

    10.5V +/- 0.5V

  • Low Battery Automatic Shutdown

    10.0V +/- 0.5V

  • No Load Current Draw

    < 0.2A

  • NTG Bond

    Floating

  • True Ground

    No

  • Dimensions (L x W x H)

    6.3 x 4.0 x 2.3" (16 x 10.16 x 5.84cm)

  • Net Weight

    1.3 lb (589.67g)

About Wagan SlimLine

Slimline AC Inverter 250 Watts
Our Slimline AC Inverter 250 Watts is high output, compact, and slim; hence the reason it is a part of the Slimline Inverter family. Designed to be compact, lightweight, and offering full 250 watts of continuous TrueRated power; the SlimLine 250W is the solution to your power needs.

Features
Taking cues from its big brother, the AC Inverter 250 Watt is small in size, but offers huge performance. 250 Watts of continuous TrueRated power, 2 AC receptacles (wall power outlet) as you'd find in your home, 2.1A USB Power Port, thermal cooling fans, and a slew of safeties built in, the AC Inverter 250 Watt is exactly what you've been looking for!

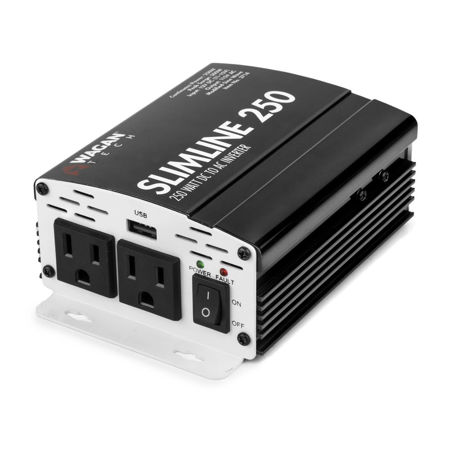

Front Component Details
On the front of the AC Inverter 250 Watt you will find 2 standard US 3-prong AC outlets, a 2.1A USB Power Port, Red fault LED light, Green Power LED light, Cooling Vents, Power switch, and the front mounting flange.

Rear Component Details
The rear of the AC Inverter 250 Watt offers: Black (Negative) threaded battery terminal, Red (Positive) threaded battery terminal, mounting flange, and the thermal cooling fan.

Performance
Wagan Tech builds our inverters with high peak surges that allow up to 3x the continuous rating to support high surging appliances such as power tools, microwaves, air conditioners and refrigerators. Wagan Tech uses top quality components and reliable MOSFET transistors - the key factor in reliable inverter manufacturing.

250 Watt Applications
In your vehicle, boat, motorcycle, RV, truck, Camper, tail-gating, camping, kid's soccer games, or anywhere you need to turn DC (battery) power into AC (household) power is where the AC Inverter 250W will shine! 250 continuous watts means that you can run your appliance without worry of the AC Inverter 250W letting you down like lesser inverters.

What It Does
Are you apprehensive of using an inverter Don't be! Inverters simply convert DC current to AC current; in simple terms, it allows you to use your home (AC) appliances using your vehicle's (DC) electricity. Want to use your blender, box fan, microwave, TV, radio, computer, or just charge your devices while camping or tail-gating An AC Inverter will allow you to do just that!

Connecting an inverter is equally as easy; usually it is just two color-coded wires screwed on to your vehicle's battery. That's it!

Wagan SlimLine Features

  • 250 Watts Continuous TrueRated Power
  • 500 Watt Surge Power
  • 2.1A USB Power Port
  • Built-in Safety Protections
  • Thermal Fan Cooled
  • Low Battery Alarm + Automatic Shut-down
  • Built-in Mounting points
  • Overheat shut-down
  • Internal Fuses

Key Features

  • 250 Watts Continuous TrueRated Power
  • 500 Watt Surge Power
  • 2.1A USB Power Port
  • Built-in Safety Protections
  • Thermal Fan Cooled
  • Low Battery Alarm + Automatic Shut-down

What's in the box:

  • SlimLine 250W 12 VDC to 115 VAC Power Inverter
  • DC Cable
  • Wagan 2 Year Limited Warranty
