Waterbird Control Unit with Sony Alpha S2 Camera Cable for Multi Sliders
See all Waterbird items

Waterbird Control Unit with Sony Alpha S2 Camera Cable for Multi Sliders

SKU: WBCU

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Waterbird Control Unit Specifications

Compatibility

Compatibility

Jump to...

  • Compatibility

    Multi Sliders (MS80, MS120 and MS150)

Ports & Connection

Jump to...

  • Supply Connector

    5.5/2.1mm or 5.5/2.5mm (Outer/Inner diameter)
    DC barrel - center positive

  • Supply Voltage

    9-16 Vdc stabilized voltage

  • Supply Current

    Source shall be capable of providing minimum 2A

  • Motor Output

    3x Molex 22-05-3041 (fitting to Motor Connector Molex 22-01-3047)

  • Motor Type

    Bipolar 4-wire stepper Motor
    Maximum 12V and 1.4A rated recommended with a minimum isolation voltage of 24V

  • Camera Trigger Port

    2.5mm (3/32") Stereo Klinke / TRS
    Sleeve: GND, Ring: Focus, Tip: Shutter
    Internal pull-up 3,3V , Maximal Voltage: 5Vdc

  • Auxiliary Port

    3.5mm (1/8") Stereo Klinke / TRS
    Sleeve: GND, Ring: Aux 2 In/Out, Tip: Aux 1 In/Out
    Internal pull-up 3,3V , Maximal Voltage: 5Vdc

  • USB Port

    USB Micro B
    Used for Firmware Updates and future use
    Max Voltage 5Vdc, no supply of motors via USB

Operating Parameters

Jump to...

  • Temperature Range

    20 to 50 deg. C (68 to 122 deg. F)

  • Maximum Relative Humidity

    90%, noncondensing

General

Jump to...

  • Dimensions

    65.5 x 59.6mm (2.58 x 2.35")
    With mounting bracket: 70.92 x 65mm (2.79 x 2.56")

Other

Jump to...

  • UPC Code

    192223006850

About Waterbird Control Unit

The ITSC1000 Control Unit is a controller for timelapse and digital motion control for video and photo equipment. It allows to control up to 3 industrial class stepper motors and the triggering of shutter and focus of a connected camera. Most models of popular cameras are supported. Auxiliary input and output port for light control and motor control via an analog voltage is also available. For controlling the outputs the Control Unit has a built in Bluetooth Smart 4.2 BLE compliant module that allows the connection to a BT LE (Low Energy or 4.0 or higher) capable Smartphone or Tablet. Applications for controlling the Unit are available for Android and iOS powered devices on App Stores.

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

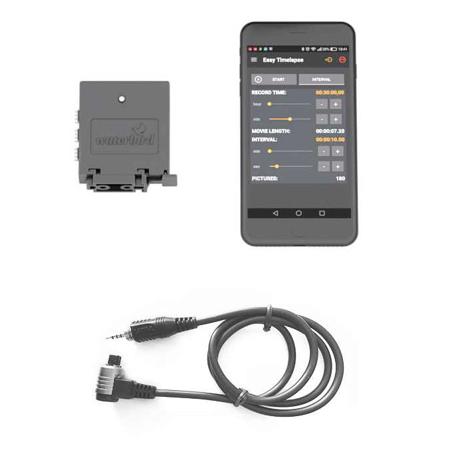

What's in the box:

  • Waterbird Control Unit with Bracket
  • Sony Alpha S2 Camera Cable
  • Mobile App (Phone Not Included)
  • Waterbird 1 Year Limited Warranty
