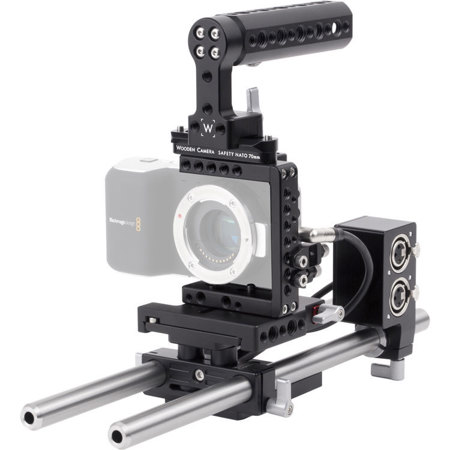

Wooden Camera Advanced Accessory Kit for Blackmagic Pocket Cinema Camera, Includes Cage, Power and HDMI Lock, Quick Base, 2x 15mm Rods, NATO Handle Kit, A-Box

The Blackmagic Pocket Cinema Camera Accessory Kit (Advanced) is an advanced camera support package for the Blackmagic Design Pocket Cinema Camera. This BMPCC accessory package includes: Pocket Cage for secure camera attachment, Pocket Lock (Power) for camera power input protection, Pocket Lock (HDMI) for camera HDMI port protection, Quick Base (Pocket), a quick release baseplate for holding the two 15mm Rods (15") at the correct lens height, NATO Handle Kit (Plus, 70mm) a quick release handle that attaches to the top of the cage, has a rotating top grip, multiple mounting points for accessories, integrated shoe mount and a 15mm/19mm rod opening and A-Box (Pocket) for XLR audio inputs.

Pocket Cage
Pocket Cage turns the Blackmagic Pocket Cinema Camera into a production-ready tool. It attaches by two screws, one on the top with two locating pins and one on the bottom with an additional two locating pins making it extremely secure. There are multiple mounting points on all sides allowing easy attachment of a tripod plate, accessories or other production rigging. The battery door can open easily allowing access for SD card and battery changes. Combine with Pocket Lock (HDMI) and Pocket Lock (Power) for port protection and added connector security. Combine with Pocket 15mm Base for lightweight 15mm support.

• 1/4-20 holes - in standard spacing (9mm center to center)
• 3/8-16 holes - for larger accessories and tripod mounting

Pocket Lock (Power)
Pocket Lock (Power) is a power input protector for the Blackmagic Pocket Cinema Camera. It attaches securely using an included M4 bolt to the Pocket Cage (sold separately). Products like the WC V-Mount (Pocket), WC Gold Mount (Pocket) and D-Tap to Pocket work perfectly with this product and are secured by plugging into the camera and tightening the silver thumbscrew. The AC adapter provided with the camera by Blackmagic Design will also work.

Pocket Lock (HDMI)
Pocket Lock (HDMI) is an HDMI protector for the Blackmagic Pocket Cinema Camera. It attaches securely using an included M4 bolt to the Pocket Cage (sold separately). Includes micro HDMI to HDMI pigtail cable which inserts into Pocket Lock and is secured by tightening silver thumbscrew.

Quick Base (Pocket)
Quick Base (Pocket) is a quick release baseplate for the Blackmagic Design Pocket Cinema Camera that provides lightweight 15mm pass through rods. The baseplate can be used in combination with the Pocket Cage and can attach to any tripod plate or ARRI standard bridgeplate such as Bridgeplate (19mm) or Bridgeplate (15mm Studio). When studio rods are not needed, a Dovetail Clamp can be added instead to interface with 2060 Dovetails, Safety Dovetails or Shoulder Rigs. To quick release out of dovetail/baseplate, turn thumbscrew and depress pin, move camera toward rear and remove.

• 1/4-20 and 3/8-16 holes for attaching accessories
• Quick release slot based on ARRI standard dovetail
• 1/4-20 and 3/8-16 holes on bottom for attaching to tripod or bridgeplate

15mm Rod
15mm diameter iris rods used for mounting accessories like follow focus, matte box, lens support, servo motors and more.

NATO Handle Kit (Plus, 70mm)
The NATO Handle Kit (Plus, 70mm) is a quick release top handle that attaches and detaches without screws. Includes NATO Handle (Plus) and Safety NATO Rail (70mm) at a reduced package price. To attach to camera, slide onto NATO rail and turn thumbscrew to lock in place. Loosen top knob to adjust grip rotation. Sideways 15mm tube clamp allows for attachment of UVF Mount v2 (No Clamp). Forward facing 15mm rod opening and 19mm rear rod opening for attaching single rods for focus motors, etc. Integrated shoe mount for attaching on camera lights, microphone shock mounts, etc. 1/4-20 and 3/8-16 holes on grip area for attaching additional accessories. 1/4-20 holes on handle front for attaching Rod Clamps which allow for pass through rods front to back. Safety NATO Rail (70mm), included in kit, attaches to two 1/4-20 screw points spaced up to 42mm apart center to center.

Since NATO Handle (Plus) has integrated 15mm clamp mechanism, it goes great with UVF Mount (No Clamp) versions: UVF Mount (No Clamp), UVF Mount (F55/F5, No Clamp), UVF Mount (LCD, No Clamp).

A-Box (Pocket)
Made specifically for Blackmagic Design Pocket Cinema Camera. A-Box (Pocket) adapts two industry standard XLR male plugs to one right angle 3.5mm stereo plug. Highest quality professional grade connectors. Comes with free Bolt On 19mm Rod for attaching to any 1/4-20 threaded hole and 15mm Adapter Bushing for clamping to 15mm rods. This adapter does not provide phantom power.
