Review Summary

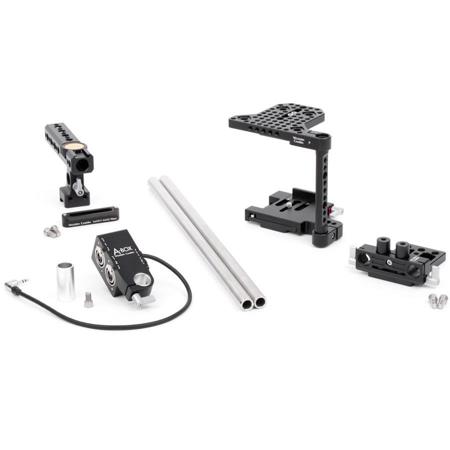

The Canon T5i Camera Accessory Kit (Advanced) is an advanced camera support package designed for the Canon T5i cameras. The T5i accessory package includes:Quick Cage (DSLR Small), a quick release, height adjustable camera cage, the DSLR 15mm Base, a height adjustable baseplate for holding the two 15mm Rods (15") at the correct lens height, NATO Handle Kit (Plus, 70mm), a quick release handle that attaches to the top plate, has a rotating top grip, multiple mounting points for accessories, integrated shoe mount and a 15mm/19mm rod opening and the A-Box (DSLR) for XLR audio inputs.
Quick Cage (DSLR, Small)
Quick Cage (DSLR, Small) is a quick release, height adjustable cage that fits smaller DSLR cameras like Sony A7, A7r and A7s, Canon t2i, t3i, t4i, t5i, 60D and 550d, Nikon D7100, D7000, D5200, D90, D5100, D3200, D3100, Panasonic GH2, GH3 and GH4. It attaches by one low profile screw on bottom and shoe pinch on top. The minimalist design gives you mounting points on the top and side while leaving all of the camera's vital controls on the right grip and left side easily viewable and accessible. Fold out LCD screens can be positioned easily and eyepiece can be utilized while cage is attached.
Quick Cage (DSLR, Small) includes a quick release dovetail which can attach to tripod plates or existing 15mm support bases. To quick release out of dovetail/baseplate, turn thumbscrew and depress pin, move camera toward rear and remove. If lightweight 15mm support is needed, combine with DSLR 15mm Base.
1/4-20 holes - in standard spacing (9mm center to center)
3/8-16 holes - in ARRI standard spacing (50mm center to center)
DSLR 15mm Base
DSLR 15mm Base is a height adjustable baseplate attachment that provides 15mm lightweight rods at the correct lens height for DSLR cameras when combined with Quick Cage (DSLR, Small) and Quick Cage (DSLR, Medium). The baseplate can attach to any tripod plate or ARRI standard bridgeplate such as Bridgeplate (19mm) or Bridgeplate (15mm Studio). When studio rods are not needed, a Dovetail Clamp can be added instead to interface with 2060 Dovetails, Safety Dovetails or Shoulder Rigs.
15mm Rod
15mm diameter iris rods used for mounting accessories like follow focus, matte box, lens support, servo motors and more.
NATO Handle Kit
The NATO Handle Kit (Plus, 70mm) is a quick release top handle that attaches and detaches without screws. Includes NATO Handle (Plus) and Safety NATO Rail (70mm) at a reduced package price. To attach to camera, slide onto NATO rail and turn thumbscrew to lock in place. Loosen top knob to adjust grip rotation. Sideways 15mm tube clamp allows for attachment of UVF Mount v2 (No Clamp).
Forward facing 15mm rod opening and 19mm rear rod opening for attaching single rods for focus motors, etc. Integrated shoe mount for attaching on camera lights, microphone shock mounts, etc. 1/4-20 and 3/8-16 holes on grip area for attaching additional accessories. 1/4-20 holes on handle front for attaching Rod Clamps which allow for pass through rods front to back. Safety NATO Rail (70mm), included in kit, attaches to two 1/4-20 screw points spaced up to 42mm apart center to center. Since NATO Handle (Plus) has integrated 15mm clamp mechanism, it goes great with UVF Mount (No Clamp) versions: UVF Mount (No Clamp), UVF Mount (F55/F5, No Clamp), UVF Mount (LCD, No Clamp)
A-Box (DSLR)
Made for DSLRs and any camera with single 3.5mm input (also referred to as 1/8"). A-Box (DSLR) adapts two industry standard XLR male plugs to one right angle 3.5mm stereo plug. Works best with cameras that allow for Auto Gain Control to be disabled. Highest quality professional grade connectors. Comes with free Bolt On 19mm Rod for attaching to any 1/4-20 threaded hole and 15mm Adapter Bushing for clamping to 15mm rods. This adapter does not provide phantom power. Also great for Canon C100, Handycam style cameras, Blackmagic Pocket and more!
