Wooden Camera Advanced Accessory Kit for ARRI Alexa Mini Camera, Includes Quick Cage, 4x 15mm Rod, NATO Handle Kit, Dovetail Clamp, 12" Safety Dovetail, 2x Rod Clamp, Battery Slide

The ARRI Alexa Mini Camera Accessory Kit (Advanced) is a professional camera support package designed for the ARRI Alexa Mini camera. The Alexa Mini accessory package includes: Quick Cage (Alexa Mini + LW), a form fitting cage with quick release NATO rosettes and threaded holes for accessory attachment, a camera baseplate for holding two 15mm Rods (9") at the correct lens height, NATO Handle Kit (Plus, 100mm), a quick release handle that attaches to the top plate, has a rotating top grip, multiple mounting points for accessories, integrated shoe mount and a 15mm/19mm rod opening, Dovetail Clamp for mounting to an ARRI standard dovetail like the included Safety Dovetail (12"), Rod Clamp (15mm LW), a mount that holds a second set of 15mm Rods (6") and the Battery Slide, an adjustable battery plate for attaching a V-Mount or Gold Mount plate to the camera which attaches via a second Rod Clamp (15mm LW).

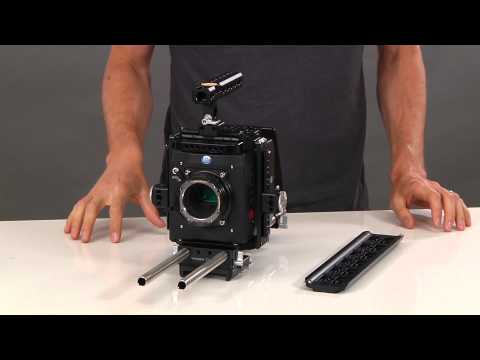

Quick Cage (Alexa Mini + LW)
Quick Cage (Alexa Mini + LW) is a form fitting cage plus 15mm lightweight baseplate for the ARRI Alexa Mini. It attaches by four M4 screws on top and four M4 screws on the bottom making it extremely secure. The same M4 hole pattern found on the camera body is present on the cage top plate. This allows for attachment of ARRI brand handles and accessories. Arrays of 1/4-20 holes in standard spacing and multiple 3/8-16 holes for large accessories. ARRI accessory mount also available in several places (3/8-16 screw hole with locating pins adjacent).

The cage side pieces feature NATO standard accessory rails with spring loaded safety pins on each end to prevent accidental removal. The NATO rails also feature 1/4-20 and 3/8-16 holes. Clamped to the side rails are two NATO Rosette (ARRI) which adapt an ARRI standard rosette to quick release NATO rail.

Quick Cage (Alexa Mini + LW) also includes a lightweight 15mm support baseplate that can attach to any tripod plate or ARRI standard bridgeplate such as Bridgeplate (19mm) or Bridgeplate (15mm Studio). When studio rods are not needed, a Dovetail Clamp can be added instead to interface with 2060 Dovetails, Safety Dovetails or Shoulder Rigs. Additional Rod Clamp (15mm LW) can be attached to rear of Quick Dovetail for independent rear rod support.

15mm Rod
15mm diameter iris rods used for mounting accessories like follow focus, matte box, lens support, servo motors and more.

NATO Handle Kit (Plus, 100mm)
The NATO Handle Kit (Plus, 100mm) is a quick release top handle that attaches and detaches without screws. Includes NATO Handle (Plus) and Safety NATO Rail (100mm) at a reduced package price. To attach to camera, slide onto NATO rail and turn thumbscrew to lock in place. Loosen top knob to adjust grip rotation. Sideways 15mm tube clamp allows for attachment of UVF Mount v2 (No Clamp). Forward facing 15mm rod opening and 19mm rear rod opening for attaching single rods for focus motors, etc.

Integrated shoe mount for attaching on camera lights, microphone shock mounts, etc. 1/4-20 and 3/8-16 holes on grip area for attaching additional accessories. 1/4-20 holes on handle front for attaching Rod Clamps which allow for pass through rods front to back. Safety NATO Rail (100mm), included in kit, attaches to two 1/4-20 screw points spaced up to 72mm apart center to center. Since NATO Handle (Plus) has integrated 15mm clamp mechanism, it goes great with UVF Mount (No Clamp) versions:

• UVF Mount (No Clamp)
• UVF Mount (F55/F5, No Clamp)
• UVF Mount (LCD, No Clamp)

Dovetail Clamp
Dovetail Clamp adapts any camera system, baseplate or accessory to an ARRI standard dovetail. Great for use with their Quick Bases, Universal Baseplate and Easy Riser systems.

Safety Dovetail (12")
12" ARRI standard dovetail with safety catch on one end to prevent accidental camera removal. Threaded 1/4-20 and 3/8-16 holes for accessory mounting and tripod attachment. Attach to Shoulder Pad for custom handheld configurations

Rod Clamp (15mm LW)
Rod Clamp (15mm LW) can attach to existing 15mm rods to provide 1/4-20 mounting points. It can also be turned over and bolted to cheeseplates, cages, battery plates and more. Extremely versatile, compact and lightweight.

Battery Slide
Battery Slide is an adjustable mounting system for WC V-Mount, WC Gold Mount, QRC Gold Mount and RED/Blueshape style battery plates. Rows of pass through holes allow attachment of Rod Clamps, cheeseplates and more. Apply firm pressure to tilt the plate in place. Loosen the thumbscrew to slide the plate up and down and also tilt. Great for adjusting counterbalance and for transitioning from studio to handheld mode. Perfect for Manfrotto, Miller, Cartoni and more.
