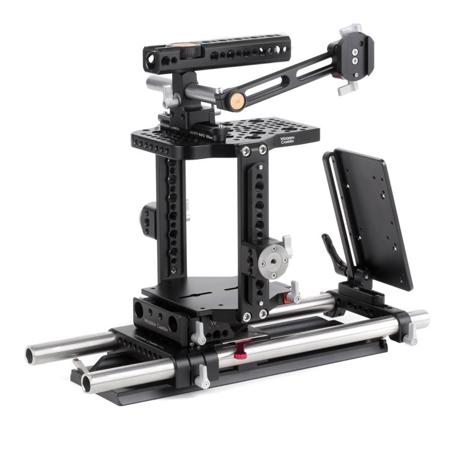

Wooden Camera Pro Accessory Kit for ARRI Alexa Mini Camera, Includes Quick Cage, 2x 19mm Rod, NATO Handle Kit, UVF Mount, 19mm Bridgeplate, 12" 2060 Dovetail, 19mm Rod Clamp, Battery Slide

The ARRI Alexa Mini Camera Accessory Kit (Pro, 19mm) is a professional camera support package designed for the ARRI Alexa Mini camera. The Alexa Mini accessory package includes: Quick Cage (Alexa Mini + LW), a form fitting cage with quick release NATO rosettes and threaded holes for accessory attachment, a camera baseplate for holding two 15mm LW rods at the correct lens height, NATO Handle Kit (Plus, 100mm)

A quick release handle that attaches to the top plate, has a rotating top grip, multiple mounting points for accessories, integrated shoe mount and a 15mm/19mm rod opening, UVF Mount (Alexa Mini, No Clamp) for holding EVFs & LCDs, Bridge plate (19mm) for holding 19mm Rods (15") at the correct height, as well as mounting to an ARRI standard dovetail like the included 2060 Dovetail (12"), Battery Slide, an adjustable battery mount which attaches via a Rod Clamp (19mm) and holds a V-Mount or Gold Mount plate.

Quick Cage (Alexa Mini + LW)
Quick Cage (Alexa Mini + LW) is a form fitting cage plus 15mm lightweight baseplate for the ARRI Alexa Mini. It attaches by four M4 screws on top and four M4 screws on the bottom making it extremely secure. The same M4 hole pattern found on the camera body is present on the cage top plate. This allows for attachment of ARRI brand handles and accessories. Arrays of 1/4-20 holes in standard spacing and multiple 3/8-16 holes for large accessories. ARRI accessory mount also available in several places (3/8-16 screw hole with locating pins adjacent).

The cage side pieces feature NATO standard accessory rails with spring loaded safety pins on each end to prevent accidental removal. The NATO rails also feature 1/4-20 and 3/8-16 holes. Clamped to the side rails are two NATO Rosette (ARRI) which adapt an ARRI standard rosette to quick release NATO rail.

Quick Cage (Alexa Mini + LW) also includes a lightweight 15mm support baseplate that can attach to any tripod plate or ARRI standard bridge plate such as Bridge plate (19mm) or Bridge plate (15mm Studio). When studio rods are not needed, a Dovetail Clamp can be added instead to interface with 2060 Dovetails, Safety Dovetails or Shoulder Rigs. Additional Rod Clamp (15mm LW) can be attached to rear of Quick Dovetail for independent rear rod support.

19mm Rod
19mm diameter iris rods used for mounting accessories like follow focus, matte box, lens support, servo motors and more.

NATO Handle Kit (Plus, 100mm)
The NATO Handle Kit (Plus, 100mm) is a quick release top handle that attaches and detaches without screws. Includes NATO Handle (Plus) and Safety NATO Rail (100mm) at a reduced package price. To attach to camera, slide onto NATO rail and turn thumbscrew to lock in place. Loosen top knob to adjust grip rotation. Sideways 15mm tube clamp allows for attachment of UVF Mount v2 (No Clamp).

Forward facing 15mm rod opening and 19mm rear rod opening for attaching single rods for focus motors, etc. Integrated shoe mount for attaching on camera lights, microphone shock mounts, etc. 1/4-20 and 3/8-16 holes on grip area for attaching additional accessories. 1/4-20 holes on handle front for attaching Rod Clamps which allow for pass through rods front to back. Safety NATO Rail (100mm), included in kit, attaches to two 1/4-20 screw points spaced up to 72mm apart center to center.

UVF Mount (Alexa Mini, No Clamp)
UVF Mount (Alexa Mini, No Clamp) is a version of their popular UVF Mount v2 but without the 15mm Tube Clamp portion. This kit attaches the ARRI Multi Viewfinder MVF-1 directly and works great with NATO Handle (Plus) which has an integrated 15mm clamp. Two points of adjustment: NATO thumbscrew (identified by red component) for positioning on NATO rail and tension thumbscrew to adjust tilt of EVF.

Tool-less design allows quick installation and removal of UVF v2 Sled. Safety pin prevents accidental removal. UVF v2 Sled can attach to any NATO-style rail.

Bridge plate (19mm)
ARRI style Bridge plate with 19mm studio spacing (rods spaced 104mm center to center). Solid body/rod clamp construction. Combine with Universal Baseplate for correct lens height on camera. Use with Easy Riser for correct lens height on RED Epic and Scarlet. Native height for use with RED ONE.

2060/2575/120EX Dovetail-12
12 inch ARRI standard dovetail with safety catches on each end.

Rod Clamp (19mm)
Rod Clamp (19mm) can attach to existing 19mm rods to provide 1/4-20 and 3/8-16 mounting points. It can also be turned over and bolted to cheeseplates, cages, battery plates and more. Extremely versatile, compact and lightweight.

Battery Slide
Battery Slide is an adjustable mounting system for WC V-Mount, WC Gold Mount, QRC Gold Mount and RED/Blueshape style battery plates. Rows of pass through holes allow attachment of Rod Clamps, cheeseplates and more. Apply firm pressure to tilt the plate in place. Loosen the thumbscrew to slide the plate up and down and also tilt. Great for adjusting counterbalance and for transitioning from studio to handheld mode.
